Input signal : DALI DT6/DT8, Push DIM (Extended mode only)
Rated DALI input current: <2mA
Output signal: DALI DT6/DT8
Rated DALI output current: Max. 220mA
Output mode: Extended mode, Relay mode

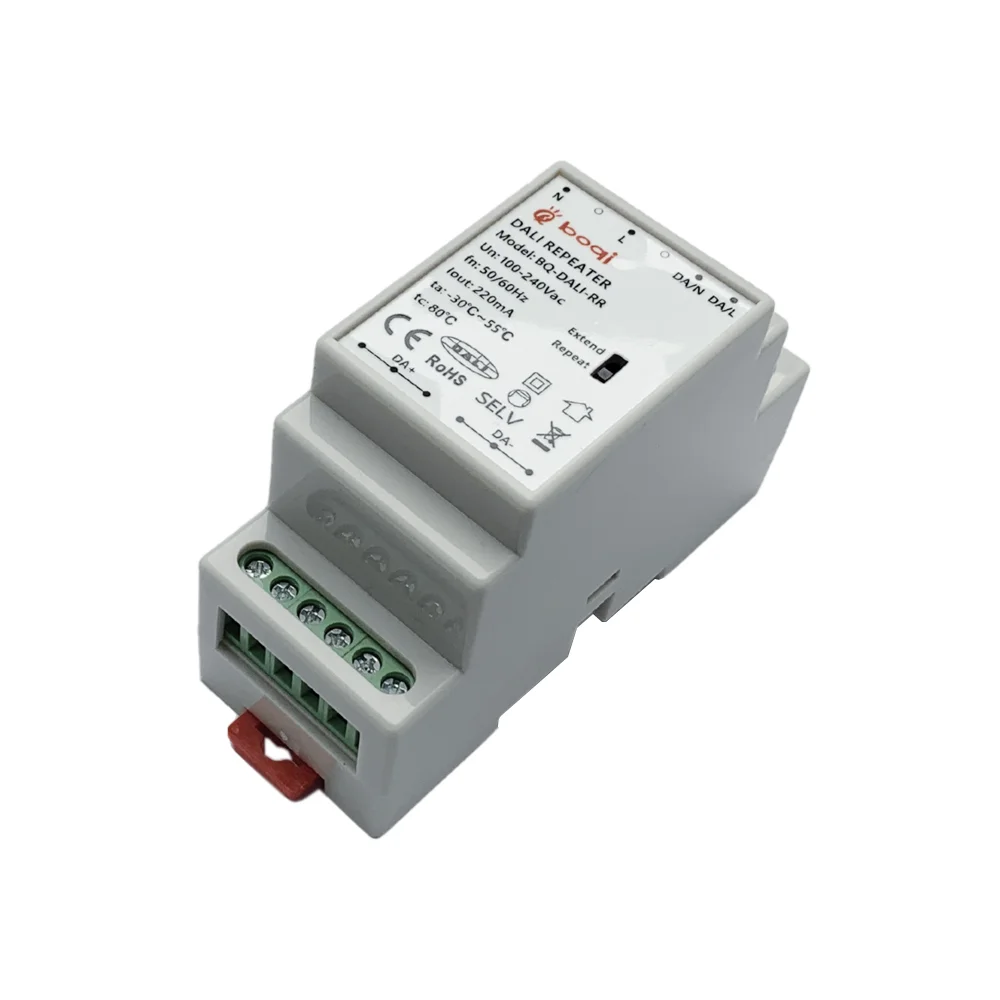

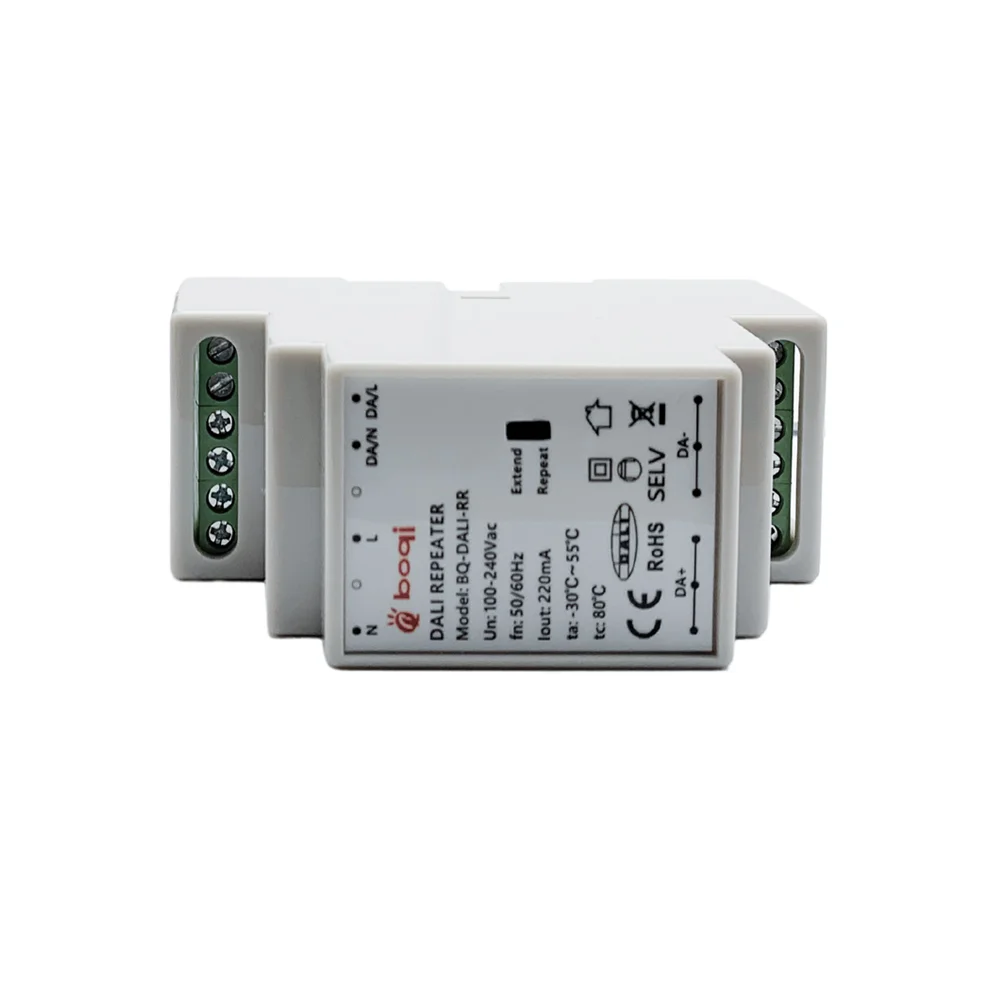

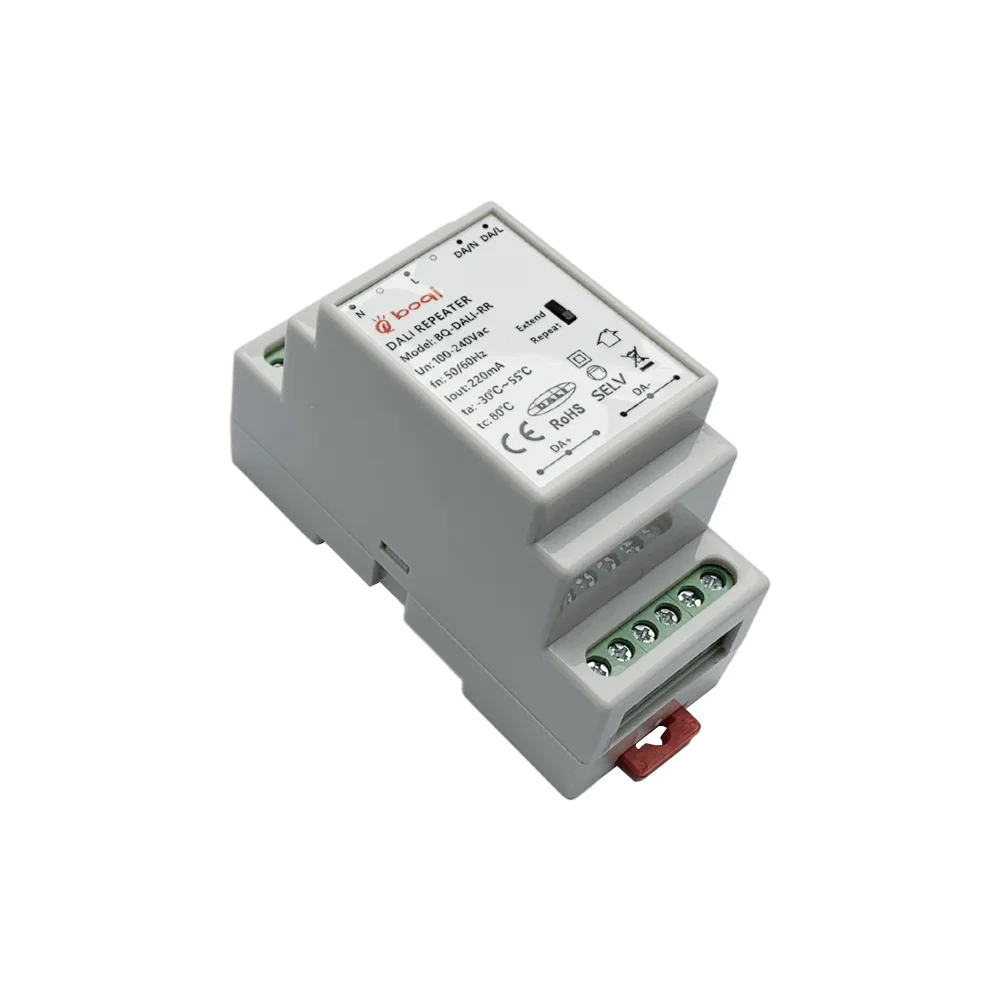

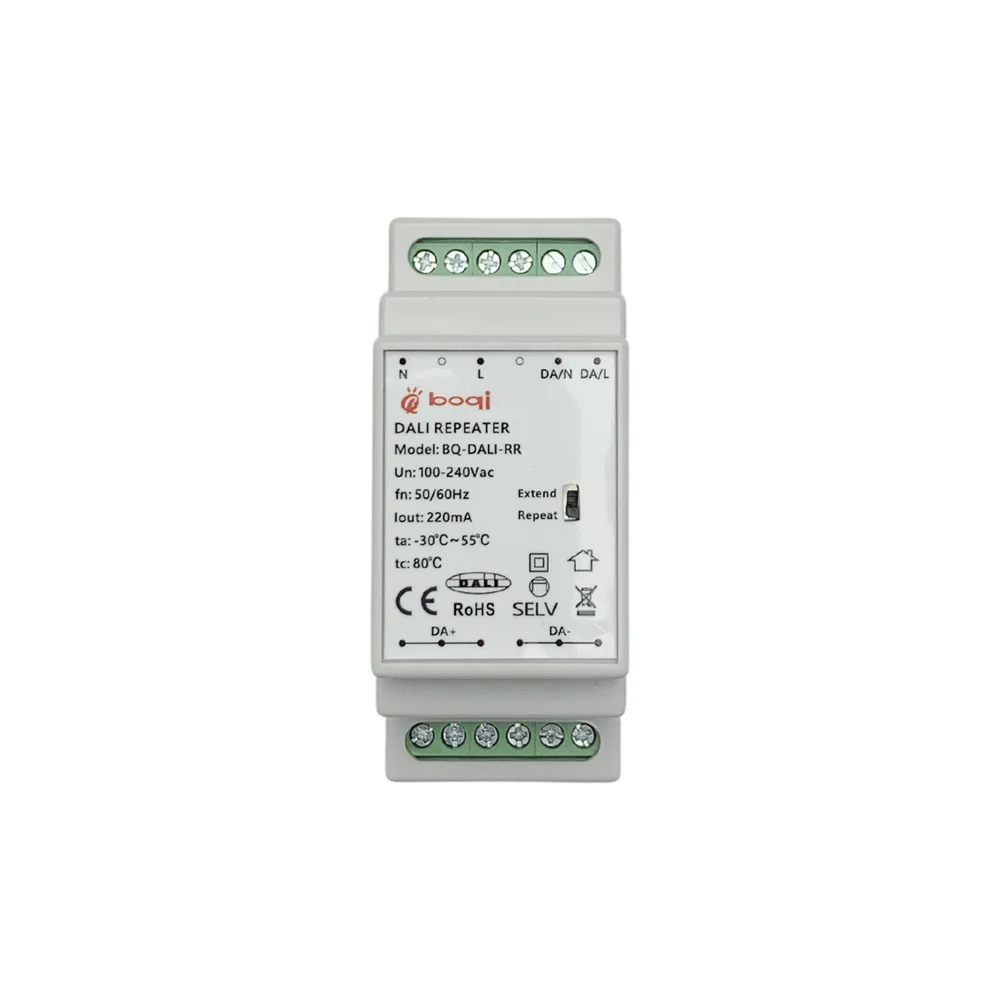

BQ-DALI-RR repeater allows to amplify the DALI signal (relay mode)
and to extend DALI fixtures (extended mode). You can set the relay or
extended mode via DIP switches. The output with load capacity serves as
DALI Bus Power Supply, which effectively solves the difficulties of connecting
to multiple fixtures and extending the signal transmission distance.
The relay mode is mainly used for amplifying the weak DALI signal and
reducing signal distortion in long-ditance transmission due to line loss and
environmental interferences.The repeater can extend the maximum DALI
line length from 300 m to 600 m.
The extended mode enables the output to connect up to 64 fixtures. With a
DALI repeater, the output fixtures can be dimmed in sync with buttons and
ensure the consistency of lighting changes.
