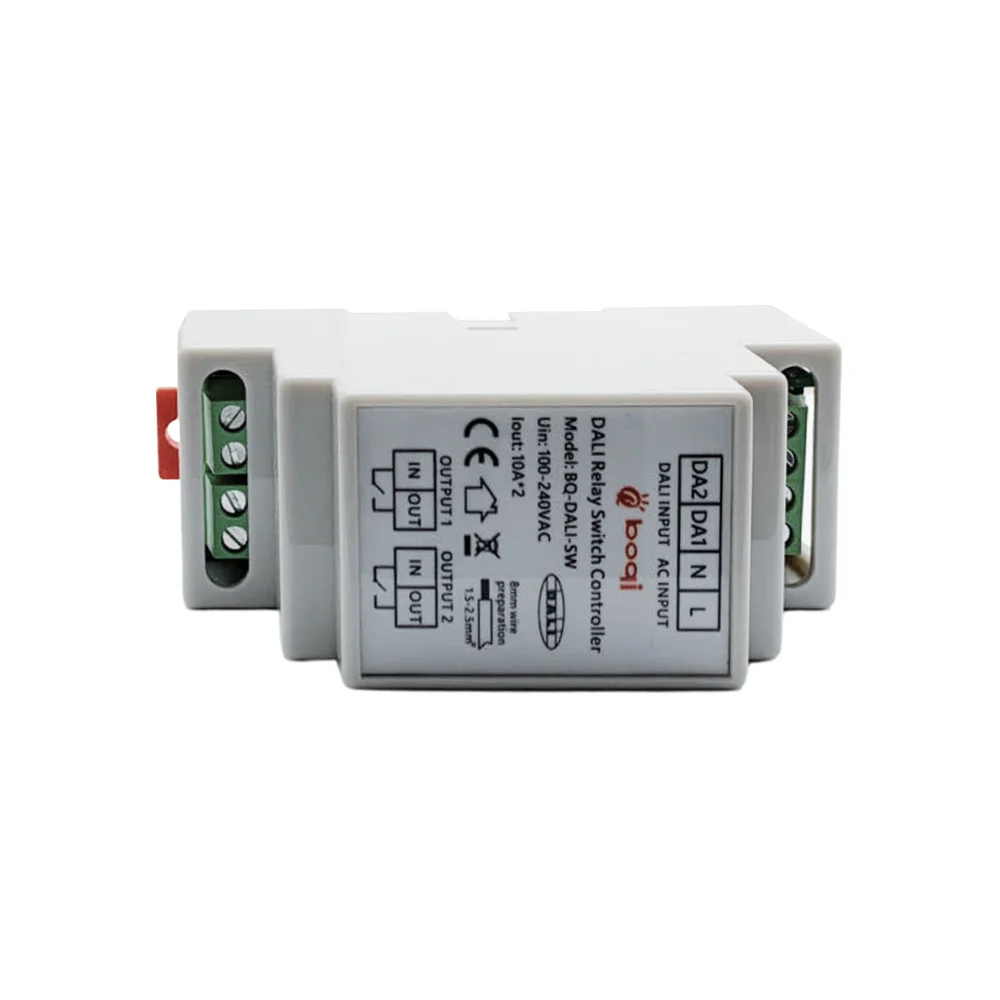

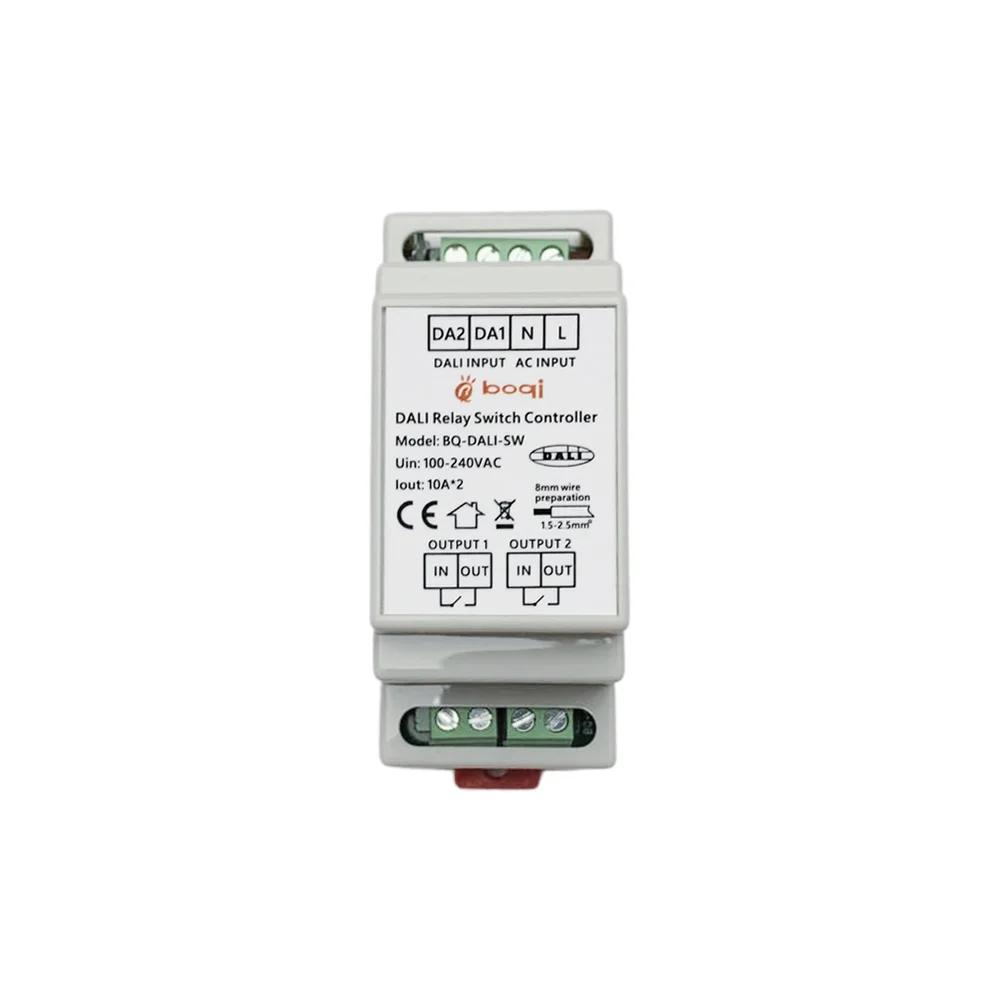

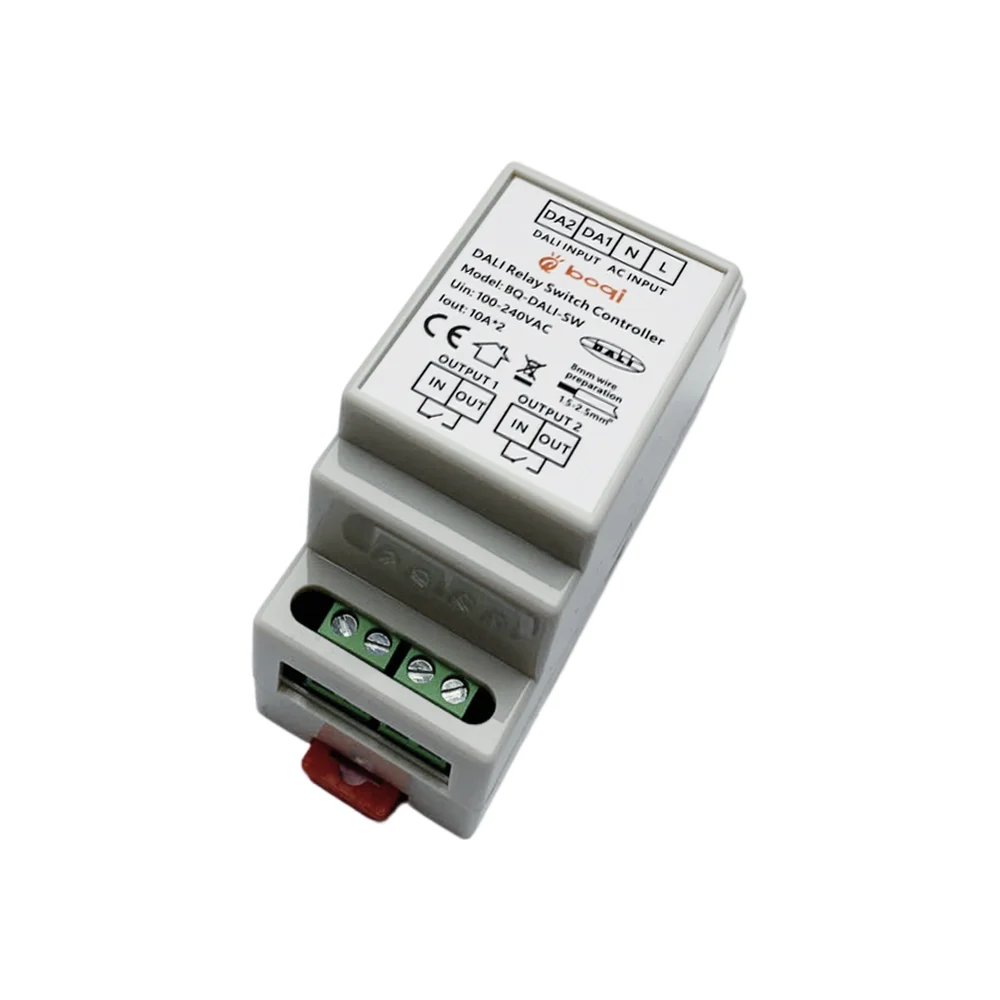

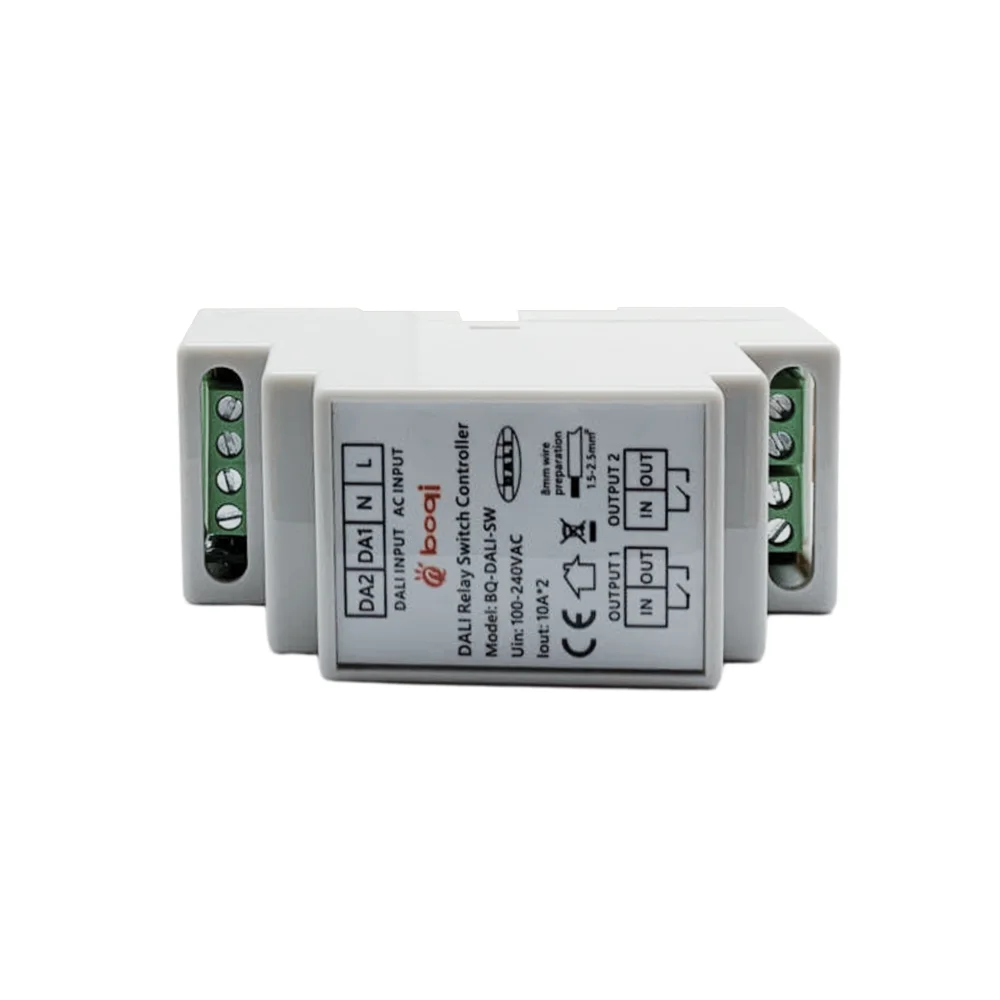

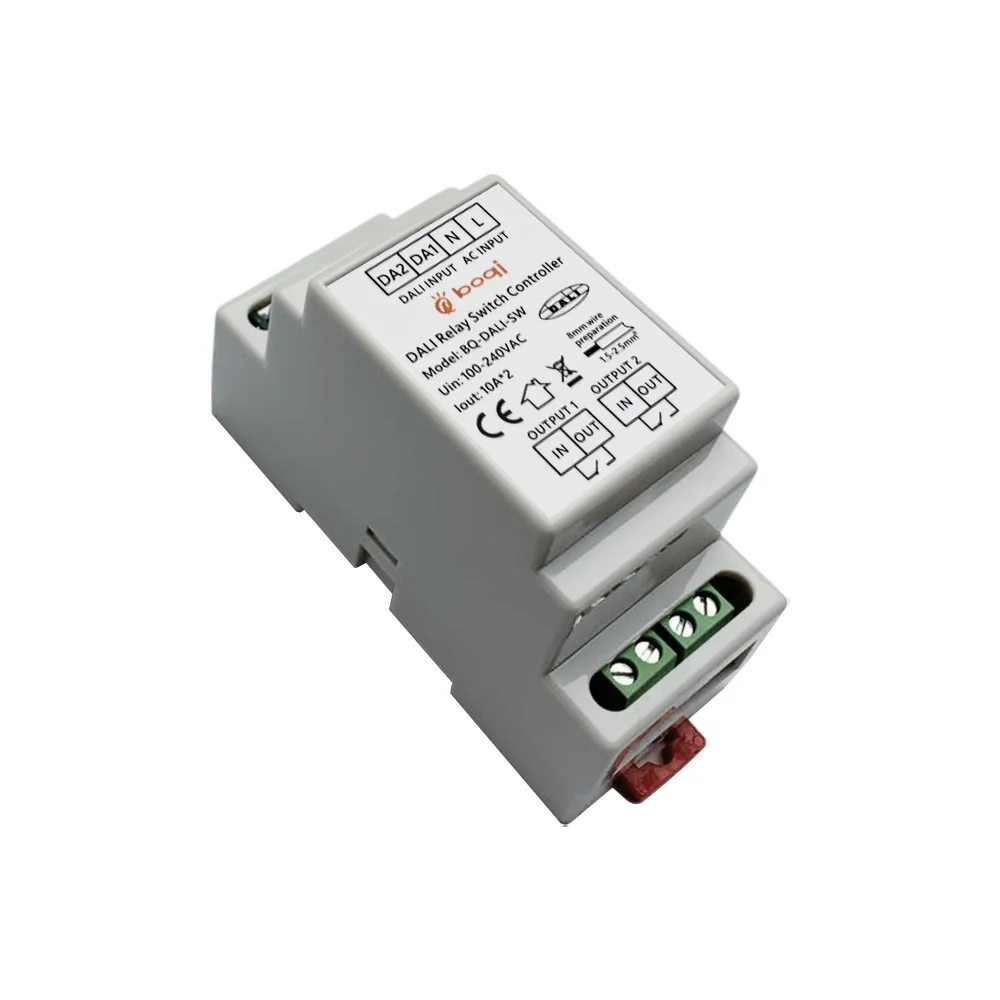

DALI Relay Switch

DALI Relay Switch

Model

BQ-DALI-SW

Parameter

Output Power: ≤2400W/CH *2 (@230VAC)

≤1300W/CH *2 (@110VAC)

Input: 100-240VAC

Input Signal: DALI

Output Current: Max. 10A

Feature

1. Compliant to IEC62386-101, IEC62386-102, IEC62386-208;
2. Relay unit is connected to the DALI bus and occupies 2 addresses;
3. Together with a DALI master, it supports grouping, scene control;
4. Works as a relay to switch LED lights on/off;
5. Max. 10A per channel;
6. Wide supply voltage;
7. DIN rail mounting or screw mounting, suitable for project applications.

Garanti

5 år

Certificering

CE, RoHS
