0-10V Dimmable LED Drivers

boqi is devoted to manufacturing premium 0-10V dimmable led drivers in China by the most cost-effective control and reliable technology improvement.

We bring you the most competitive quality and prices to speed up your business with sustainable profits.

Get in touch with us to get the best price.

0-10V LED Drivers Series Technical Specifications

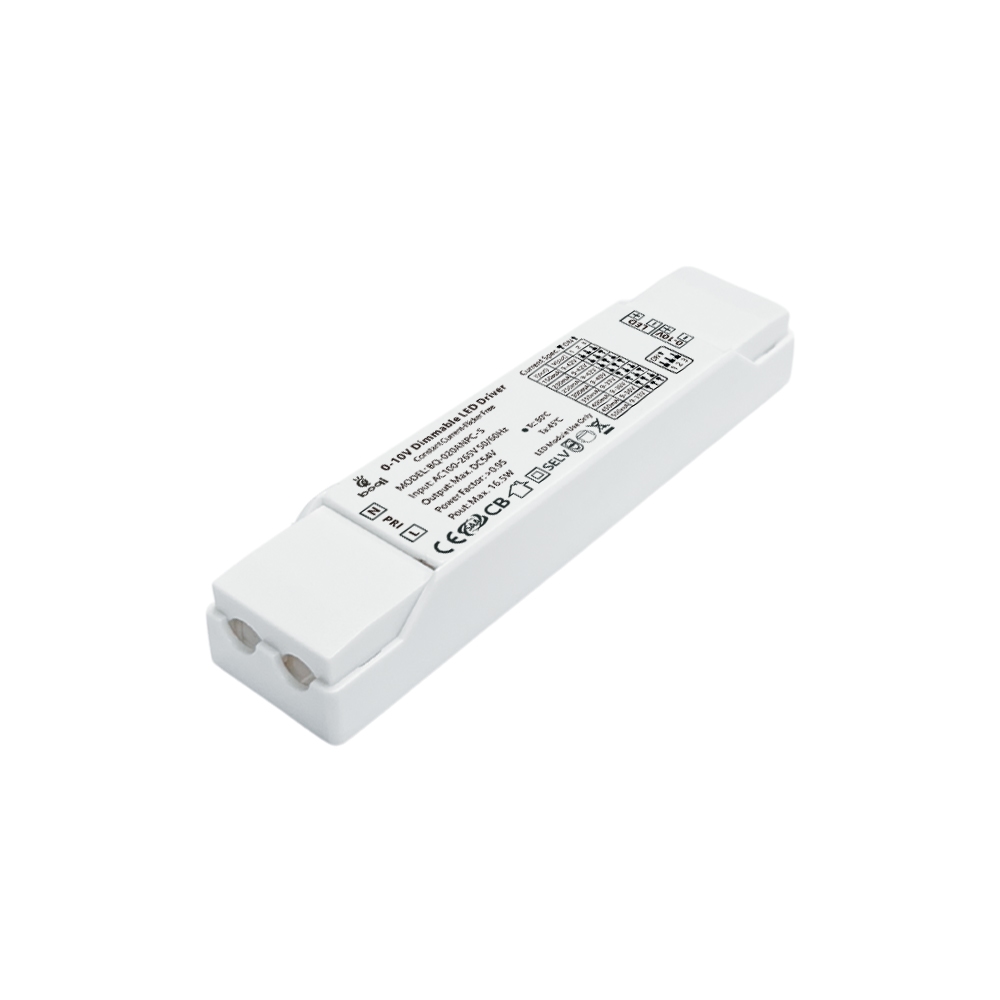

0-10V Dimmable Constant Current LED Drivers 12W 300mA — *(1) L*W*H = 100*43*21 mm

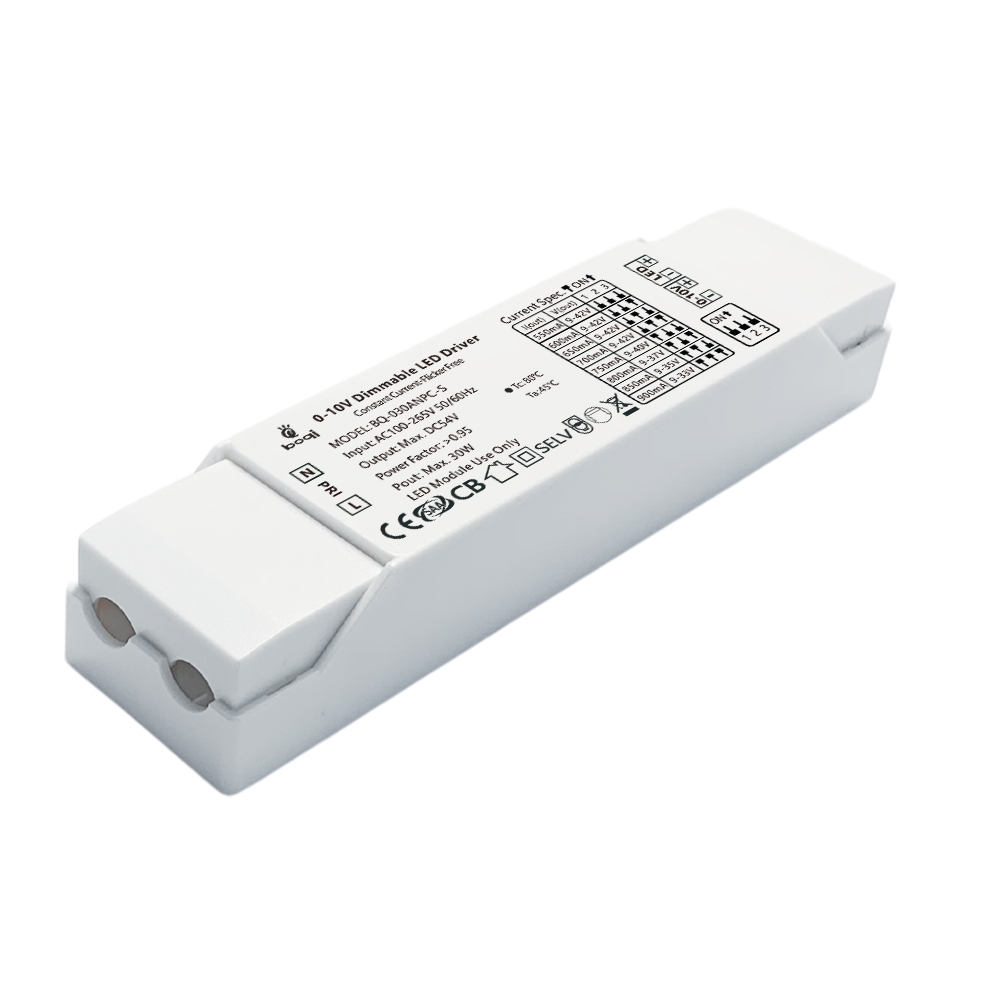

0-10V Dimmable Constant Current LED Drivers 24W 600mA — *(2) L*W*H = 130*43*21 mm

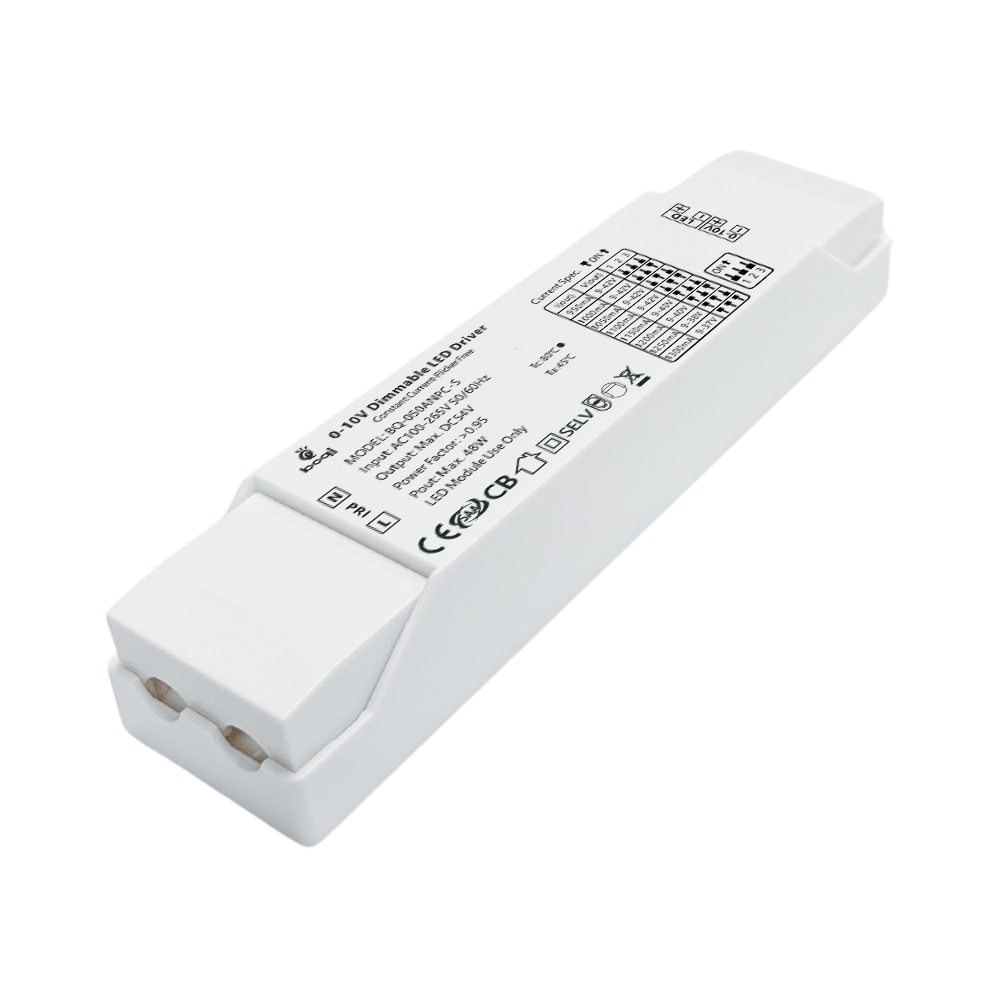

Constant Current 0-10V Dimmable LED Drivers 48W 1000mA — *(3) L*W*H = 140*47*28 mm

Constant Current 0-10V Dimmable LED Drivers 60W 1500mA — *(4) L*W*H = 155*53*30 mm

Constant Current 0-10V LED Drivers

Note: The code in the table, such as *(1) corresponds to the number of the picture on the left.

Model	OUTPUT POWER	INPUT VOLTAGE	OUTPUT CURRENT
BQ-012ANPC *(1)	3-12W	DC9-45V	300mA
BQ-015ANPC 300 *(1)	10-15W	DC36-50V	300mA
BQ-015ANPC 350 *(1)	10-15W	DC24-45V	350mA
BQ-020ANPC 300 *(1)	12-18W	DC36-60V	300mA
BQ-020ANPC 450 *(1)	12-18W	DC24-42V	450mA
BQ-030ANPC 450 *(2)	15-24W	DC33-54V	450mA
BQ-030ANPC 600 *(2)	15-24W	DC24-42V	600mA
BQ-050ANPC 600 *(3)	30-42W	DC50-72V	600mA
BQ-050ANPC 1000 *(3)	24-42W	DC24-42V	1000mA
BQ-060ANPC 900 *(4)	45-63W	DC50-72V	900mA
BQ-060ANPC 1500 *(4)	45-63W	DC24-42V	1500mA

HPFC Constant Voltage 0-10V Dimmable LED Driver 12V 30W — *(5) L*W*H = 155*53*30 mm

HPFC Constant Voltage 0-10V Dimmable LED Driver 24V 75W — *(6) L*W*H = 175*56*31 mm

Constant Voltage 0-10V LED Drivers 20-75W

Note: The code in the table, such as *(5) corresponds to the number of the picture on the left.

Model	OUTPUT POWER	INPUT VOLTAGE	OUTPUT CURRENT
BQ-020ANPV 12V *(5)	20W	DC12V	1670mA
BQ-020ANPV 24V *(5)	20W	DC24V	840mA
BQ-030ANPV 12V *(5)	30W	DC12V	2500mA
BQ-030ANPV 24V *(5)	30W	DC24V	1250mA
BQ-040ANPV 12V *(5)	40W	DC12V	3340mA
BQ-040ANPV 24V *(5)	40W	DC24V	1670mA
BQ-060ANPV 12V *(6)	60W	DC12V	5000mA
BQ-060ANPV 24V *(6)	60W	DC24V	2500mA
BQ-075ANPV 24V *(6)	75W	DC24V	3125mA

Constant Voltage 0-10V LED Drivers 75-240W

Note: The code in the table, such as *(7) corresponds to the number of the picture on the left.

Model	OUTPUT POWER	INPUT VOLTAGE	OUTPUT CURRENT
BQ-075ANAV 12V *(7)	75W	DC12V	6.25A
BQ-075ANAV 24V *(7)	75W	DC24V	3.125A
BQ-100ANAV 12V *(8)	100W	DC12V	8.34A
BQ-100ANAV 24V *(8)	100W	DC24V	4.17A
BQ-150ANAV 12V *(9)	150W	DC12V	12.5A
BQ-150ANAV 24V *(9)	150W	DC24V	6.25A
BQ-200ANAV 12V *(10)	200W	DC12V	16.67A
BQ-200ANAV 24V *(10)	200W	DC24V	8.34A
BQ-240ANAV 12V *(11)	240W	DC12V	20A
BQ-240ANAV 24V *(11)	240W	DC24V	10A

Download Full Catalog to View More Products

Download our current catalog for an overview of all of our current product offerings, including features and benefits, specifications, functions, and warranties, among other things. Opt for the paperless version to save money and protect the environment.

0-10V LED Drivers Application

The 0-10V LED driver is a versatile component commonly used in various lighting applications to control the brightness levels of LED fixtures. This type of driver receives a low-voltage signal (between 0 and 10 volts) to modulate the intensity of the light output. The 0-10V system is particularly popular for its simplicity and effectiveness.

Residential Lighting
Commercial Lighting
Industrial Lighting
Outdoor Lighting
Retail Lighting
Architectural Lighting
Stage and Event Lighting
Aquarium Lighting
Horticultural Lighting
Medical Lighting

Our Certificates

We always strive to provide our customers with the best possible customer experience when working with us. In addition to our excellent customer service, we want our customers to be confident that their DALI dimmable LED Drivers are safe and of the highest quality. To ensure the best performance, all our DALI LED Drivers have passed CE, CB, SAA and RoHS certificates.

Premium 0-10V Dimmable LED Drivers Manufacturer and Supplier in China

boqi is China’s top manufacturer and supplier of 0-10V LED drivers. From constant current to voltage – we cater to all specs. and size. We aim to provide smart and sustainable 0-10V dimmable LED Driver products, solutions, and services beyond market standards and at competitive rates.

We follow strict value standards for product development, manufacturing, and quality control. We make sure you, as a consumer, experience the best products and services.

0-10V dimmable led drivers,0-10V dimmable led driver,0-10V led driver,0-10V led drivers,0-10V drivers,0-10V driver,0-10V dimmable,0-10V dimming,0-10V dimming led driver,0-10V dimming led drivers,0-10V dimming drivers,0-10V dimming driver,Dimmable LED Drivers Manufacturer,0-10V Dimmable LED Drivers Manufacturer

A Brief Self-Nomination, Why Choose boqi?

boqi has provided visionary solutions for top architects and light designers for more than Fifteen years now. Our LED drivers can be found on flagship buildings all around the world. We are known all across the globe for our innovative lighting products, unparalleled quality, and peak performance.

Customer-Centric. We offer application-specific solutions through bespoke products that fully fit the needs of our customers. You always come first!

Technology Leader. boqi solutions are created using cutting-edge technology and are built to satisfy future demands.

Manufacturing Pioneer. boqi has the luxury to experiment and innovate with technology because we have state-of-the-art production operations. LED technology has completely changed the dimming LED driver design, allowing us to showcase light in new and interesting ways.

Still not finding what you're looking for?

Contact our consultants for more available products.

0-10V Dimming Function - Wiring Diagram

Installing 0-10V drivers is quite easy to understand

Now there is 1 kind of 0-10V dimming wirings, which is much easier to understand.

The interface of the LED driver: L/N (strong electric input, connect to the interface to dimmer’s AC OUT L1/N1 ); LED+/LED- (output interface, connect to the light); 0-10V+/0-10V- (signal interface, connect to dimmer’s 0-10V D+/D-)

Step 1: Connect L/N of the LED drivers to the AC OUT of the dimmer.

Step 2: Connect LED+/LED- of the LED driver to the input interface of the light.

Step 3: Connect 0-10V+/0-10V- of the LED driver to dimmer’s 0-10V.

Step 4: Connect the INPUT of the dimmer to electric power.

*Remark: Before powering on, check if the 0-10V LED driver is connecting with the right side as manual.
We have 0-10V Dimmers, which are compatible with 99.99% 0-10V dimmable LED drivers on the market.

F.A.Q

Will your 0-10V dimmable LED Drivers work as 0-10V or 1-10V?

Yes, it depends on the dimmers, like 0-10V or 1-10V dimmers. If necessary, we can modify the program in the 0-10V module to add codes for the 1-10V setting.

Will you optimize the design?

Yes, like our TRIAC LED drivers we have made the new design to improve to fit 2 modes. Our engineer team will optimize customized items’ design based on reasonability and efficiency.

Do you provide lable printing services?

Yes, we will provide the label printing service by laser machine. Just send us your logo and model, we will send you the drawing to confirm within 4 hours.

Do you provide wires assembly services?

Yes, if necessary, we can assemble your wires on the led drivers. Also, we can purchase your needed wires to assemble.

What kind of the certificates do your LED drivers have?

Our LED drivers are with CE and CB issued by TUV, SAA and RoHs etc.

How long will the LED drivers to ship?

If the quantity are in stock, they will be ready to ship in 3-5 days.

How to pack?

Each LED driver will be wrapped with a foam cotton bag to avoid bumps, and then placed in a reinforced 5-layer corrugated box.

How to transport to our company?

For small bulk goods, we will deliver them directly to you via DHL, FedEx, UPS, TNT. It usually takes 3-7 days.

Why Us

Our Ultimate Stepss to Shorten Your Lead Time

#Step 1. Tailor a Plan For Your orders

#Step 2. Optimize Production Process & Ensure Quality

#Step 3. Advance the Work

boqi is a Professional LED Drivers Manufacturing Company That You Can Trust

Streamlined Supply Chain

To benefit from our all-in-one service starts from conception, samples, production, packing, finally shipping. My dear clients only need to wait for the goods delivered.

Self-Owned Factory

Positive after-sales service and solutions. Never shirk responsibility, our team will take the initiative to deal with problems

Goods in stock

We usually have the standard goods like TRIAC type, 0-10V type, DALI type, dimmers are in stock, and be able to ship in 1-2 days.

Save Cost

We will reduce your 20%-30% purchase cost by buying the matched LED Drivers with good quality, improving lightings' quality, win the best words of mouth.

Gapless Communication

You can communicate seamlessly with our English sales team, and your requirements will be transferred to the matched products or engineering team clearly.

Fast Response

You can get a quick quote within 4 hours. And we offer fast sample service, your samples will be sent out as fast as 3 days or less

High Precision

By hiring true professionals and not just standard workers to operate our production machines and testers, ensure you can get dimmable LED drivers with high precision data.

Positive Services

Positive after-sales service and solutions. Never shirk responsibility, our team will take the initiative to deal with problems

The Whole Process Of Producing LED Drivers

We made the circuit design by our engineer team via project evaluation and drawing steps. After the sample approval, we will start the production of the bulk orders. When we get the PCB that is produced according to our design, our testers will make a sampling inspection of them. Then, there are our production processing, Let’s look at

1. After the PCB is evenly coated with solder paste, The mounter will paste the components on its surface.

2. The plug-in machine inserts the components into the pasted circuit board.

We use the high precision mounter and plug-in machine, that maintain our production accuracy and efficiency.

3. The unfinished PCB will come into wave soldering device, gain the tin to fix all SMD and dip parts. Wave soldering is the best technique for soldering, which can ensure a high soldering rate and a clear soldering surface.

4. Manual repair welding shall be carried out for the missing welding on the plate.

5. Our quality engineers will test the specifications and function of the power supply by test room.

6. Conduct an aging test on the led drivers to evaluate if they are matched the quality standard, and promise the yield rate up to 99.5%.
