At boqi, we offer DALI dimmable LED Drivers with any constant current or constant voltage modes. With 14 years experience of the LED driver manufacturing, a focus on quality control, precision, material selection, fast delivery that make you worry-free.
Samples for testing are available, welcome to contact our experts today!
With 14 years of experience, boqi is well versed in this field. Yes, you are dealing with masters. You can trust them with your needs and expectations.
Need proof? Why don’t you contact us, to get our catalog to know more about us.
Want to know how we can do business? Let’s talk!
*Get Our Catalog (with full detailed specification)
Contact our consultants for more available products.

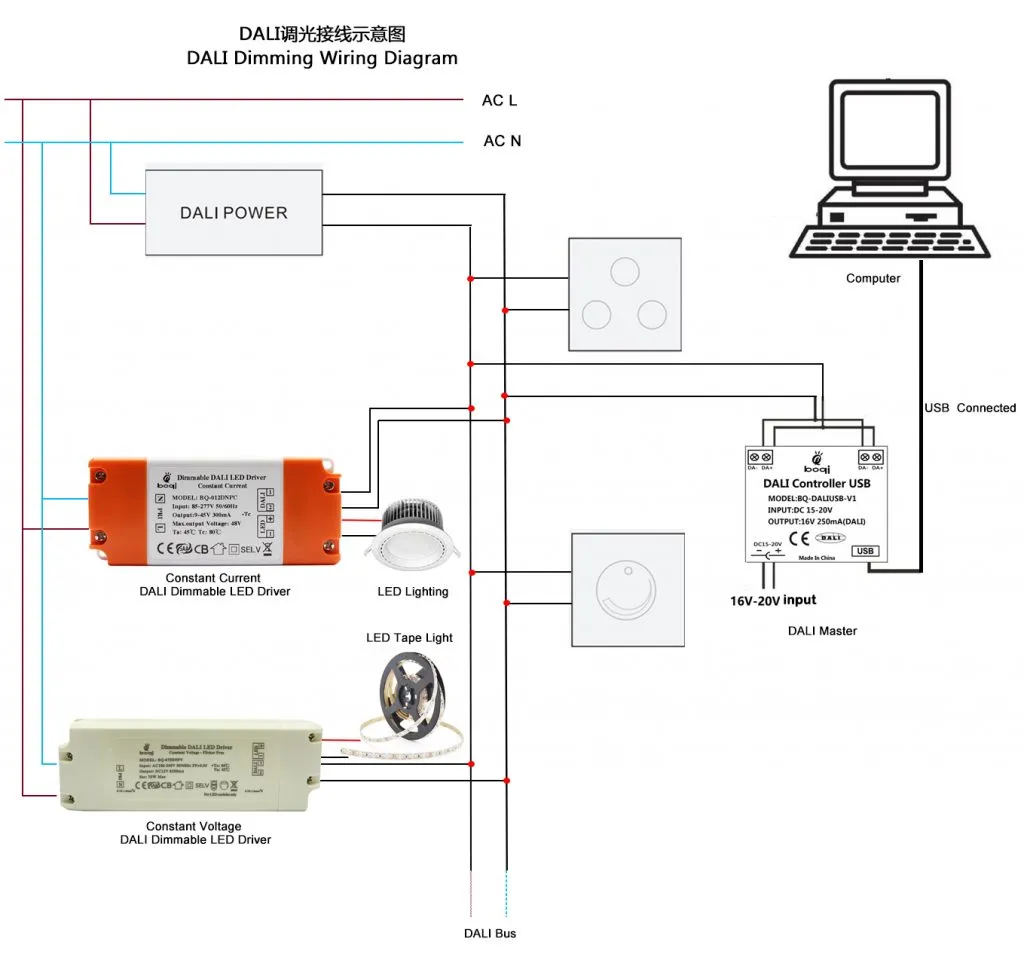

A DALI System usually combines with Computer, DALI MASTER, DALI power supply, DALI Control Panel or Knob, DALI Luminaires ( DALI LED Drivers and Light Sources)
The left diagram is for reference:
①Connect DALI signal wires of all LED drivers, panel and knob to DALI signal power supply ports on the master in parallel (Vertical lines in the middle in the diagram is for DALI signal wiring circuit)
②Connect the master and panel to the 24V auxiliary power supply ports on the switch power supply
③Connect the output terminals of DALI LED driver (LED+/LED-) to the input terminals of the light fixtures
④Connect the switch power supply and all LED drivers to electricity (lines with AC marked in the diagram)
*As DALI is not defined as a Safety Extra Low voltage system this means that normal wiring standards are applicable. DALI control cables may be run next to the normal mains wiring to a maximum length of 300m using 1.5㎡ cables. DALI wiring consists of 2 control wires with a current limited power supply supplying a maximum current of 250ma.M

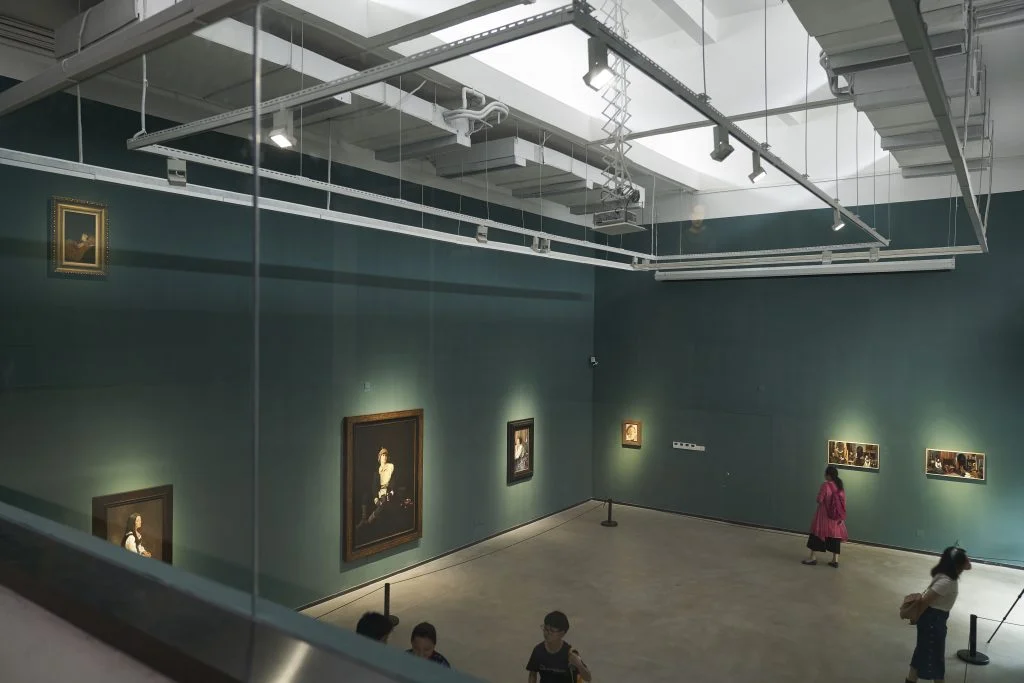

Dali dimming lighting can make every work of art present the best effect. Users can adjust each lamp to the best brightness through the software, and the appropriate lighting makes the color of these works of art lifelike with the combination of light and shadow. Such lights only require users to press a few buttons, rather than adjust them one by one.

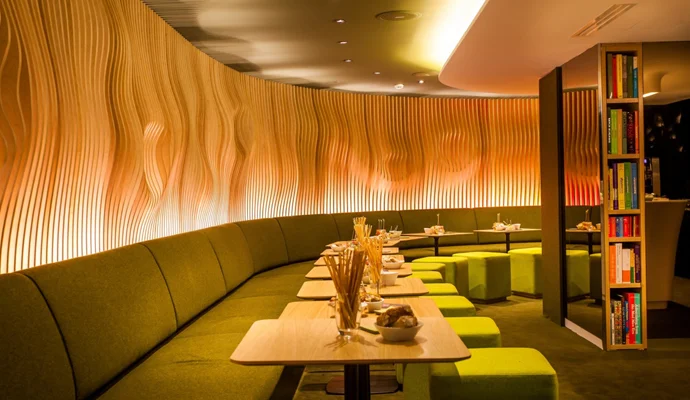

Restaurants and hotels should be the places with the most lighting requirements. An excellent restaurant and hotel lighting design must require Dali dimmable lighting, which can make different areas have different lighting effects, also known as scenes. Proper lighting can make the food look more delicious, make the environment brighter and spacious, bring customers a better user experience and better service.

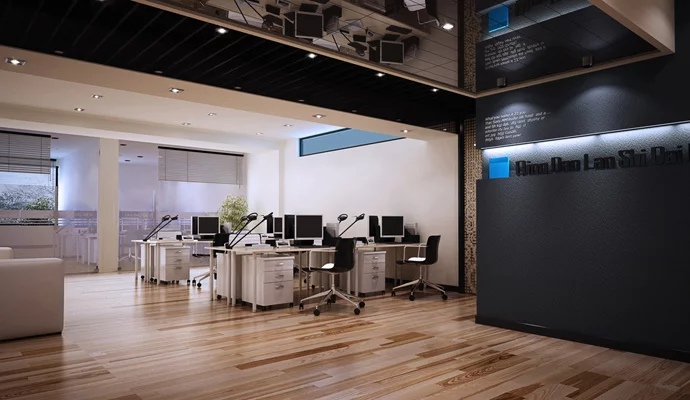

Everyone should stay in the office for at least 8 hours a day for a series of work. Then a good lighting environment is essential. Dali dimming lighting is the best choice of humanistic lighting. The light can be adjusted according to people’s needs, and the brightness of the light can be gradually changed with time. For example, near noon, the lights will slowly dim, making the office a temporary place suitable for a lunch break. On the contrary, when efficient work is needed, the lights will slowly turn on to wake people up
We made the circuit design by our engineer team via project evaluation and drawing steps. After the sample approval, we will start the production of the bulk orders. When we get the PCB that is produced according to our design, our testers will make a sampling inspection of them. Then, there are our production processing, Let’s look at
1. After the PCB is evenly coated with solder paste, The mounter will paste the components on its surface.
2. The plug-in machine inserts the components into the pasted circuit board.
We use the high precision mounter and plug-in machine, that maintain our production accuracy and efficiency.
3. The unfinished PCB will come into wave soldering device, gain the tin to fix all SMD and dip parts. Wave soldering is the best technique for soldering, which can ensure a high soldering rate and a clear soldering surface.
4. Manual repair welding shall be carried out for the missing welding on the plate.
5. Our quality engineers will test the specifications and function of the power supply by test room.
6. Conduct an aging test on the led drivers to evaluate if they are matched the quality standard, and promise the yield rate up to 99.5%.
We help you avoid the pitfalls to deliver the quality and value your LED drivers need on-time and on-budget.
