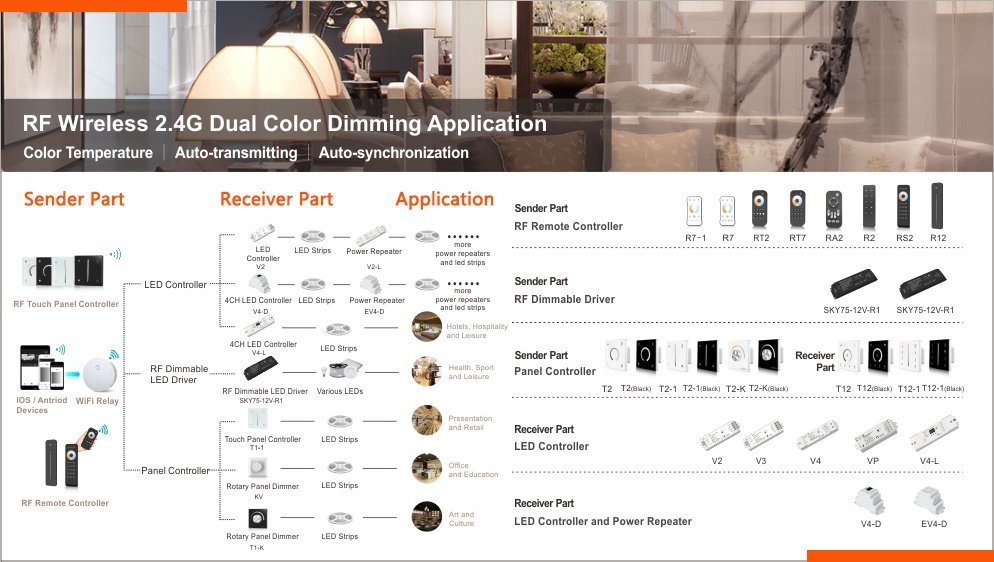

RF CCT Control System
The boqi Wireless CCT Series provides a versatile lineup of 2/3/4/5-channel controllers, complemented by handheld remotes, panel remotes, and dimmable LED drivers. Designed for intelligent lighting control, the series supports a wide range of functions, including on/off switching, smooth brightness and color-temperature adjustment, zone grouping, scene creation, scheduling, and sensor integration.
The 2-channel CCT controller works seamlessly with all types of remotes—handheld, panel, or desktop—covering dimming, CCT, and even RGB+CCT applications. Powered by advanced 2.4G wireless technology, the system offers stable control at distances up to 30 meters, while the cascading feature allows multiple controllers to relay signals, extending coverage to several hundred meters.
The 3/4/5-channel models can be configured as CCT controllers for dual-white lighting when paired with a suitable CCT remote. Each controller supports pairing with up to 10 remotes, enabling flexible multi-zone setups. A single remote can manage one or multiple zones, and any zone can contain an unlimited number of synchronized controllers, ensuring unified lighting performance.
The CCT series includes a full range of products such as constant voltage and constant current controllers, CCT remotes, CCT wall panels, dimmable LED drivers, WiFi-RF bridges, and power repeaters, forming a complete wireless color-temperature control solution.
RF DIM Control System - Product Line
RF Constant Voltage Controller (CCT, Dimming)
- Supports DC12/24/36/48V input with 2/4 channel PWM output for 1/2 group dual-color CCT control.
- Offers 4096-level flicker-free PWM dimming.
- Wireless 2.4G technology extends remote control up to 30 meters, expandable to hundreds of meters via cascade function.
- Compatible with 1-10 remote controls for partitioned lighting control.
- With a CCT remote, 3/4/5 channel controllers manage dual-color lights.
- Integrates with remotes, panels, WiFi-RF converters for a complete lighting system.
- Features various dimming options: push switch, touch button, knob, digital display.
- Includes safety protections: over-heat, over-load, short circuit, reverse polarity.
- Works with power repeaters for expanded output.
V2
V2-L
V2-S
V2-X
V2-B
V2-C
V2-M
V2-W
T2
T2-1
T2-K
V2+R7-1
RT2+V2
V2+R12
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|

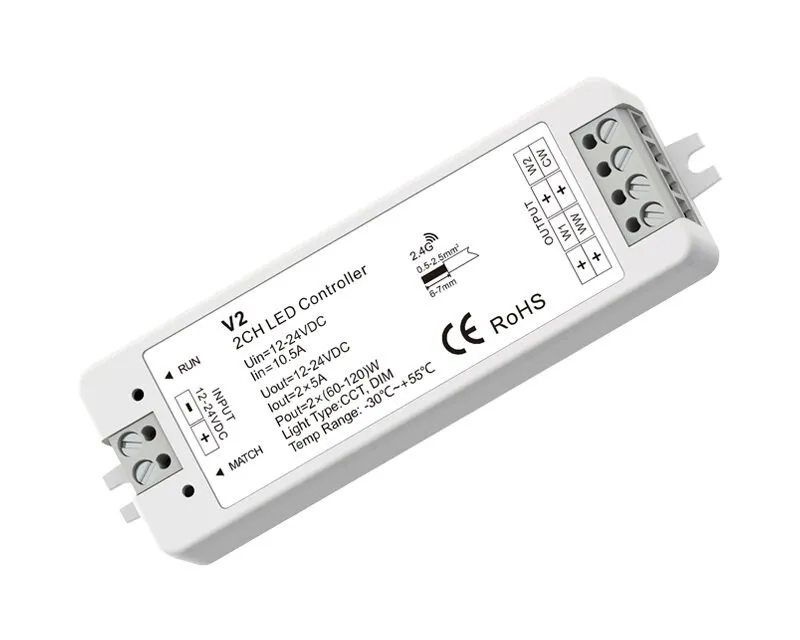

| V2 | 2CH*5A 12-24VDC CV Controller | 📄VIEW |

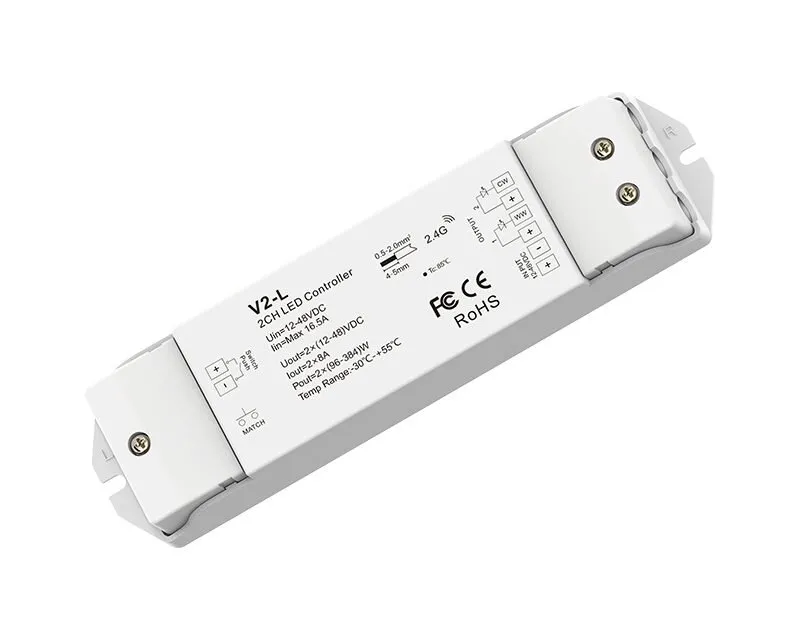

| V2-L | 2CH*8A 12-48VDC CV Controller(Push Dim) | 📄VIEW |

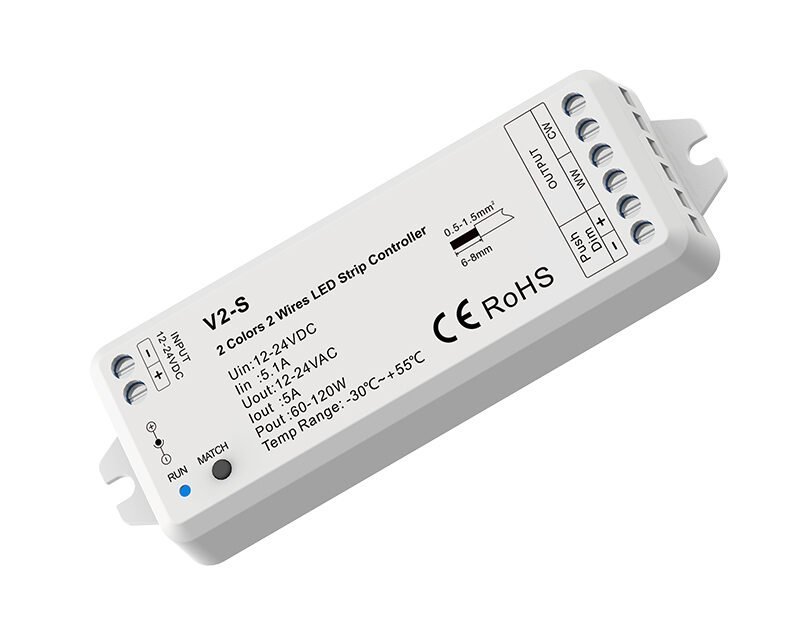

| V2-S | 1CH*5A 12-24VDC 2-Wires WW+CW CCT Controller | 📄VIEW |

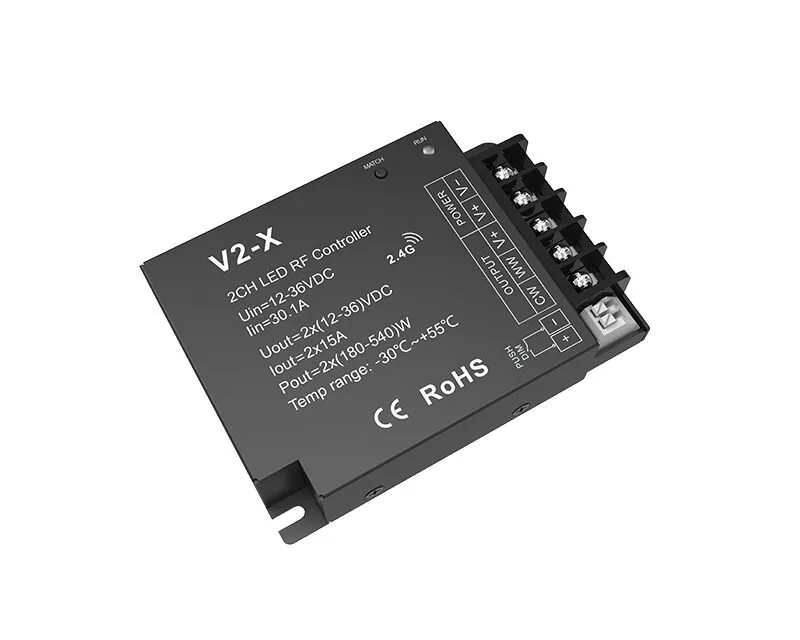

| V2-X | 2CH*15A 12-36VDC CV Controller | 📄VIEW |

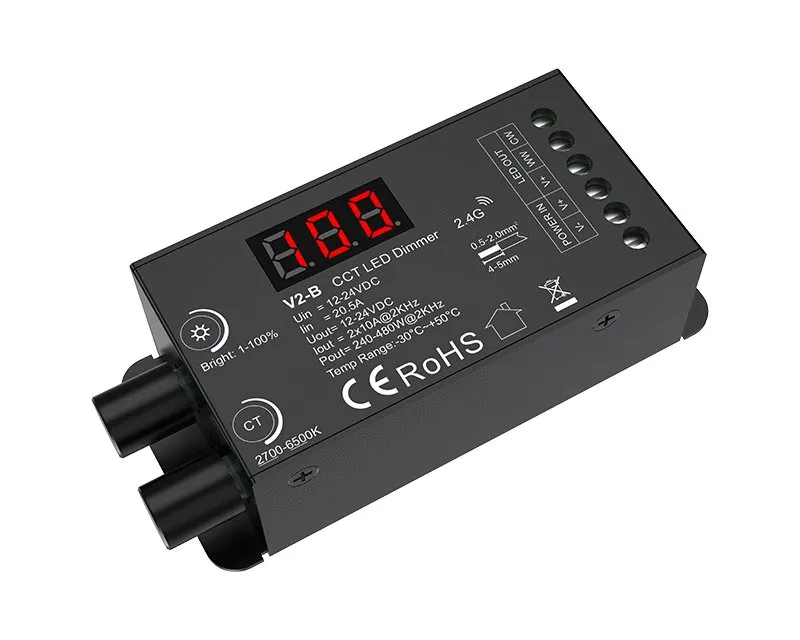

| V2-B | 2CH*10A 12-24VDC CV Controller | 📄VIEW |

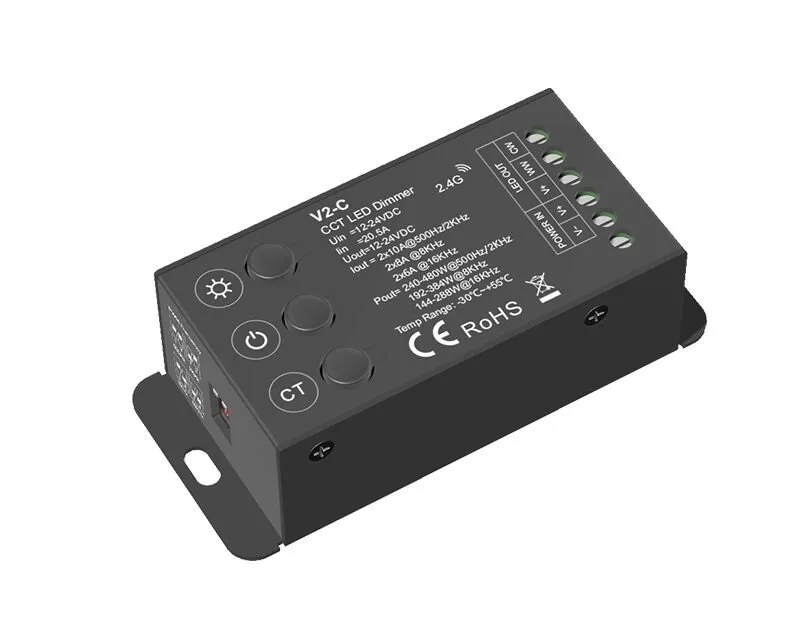

| V2-C | 2CH*10A 12-24VDC CV Controller | 📄VIEW |

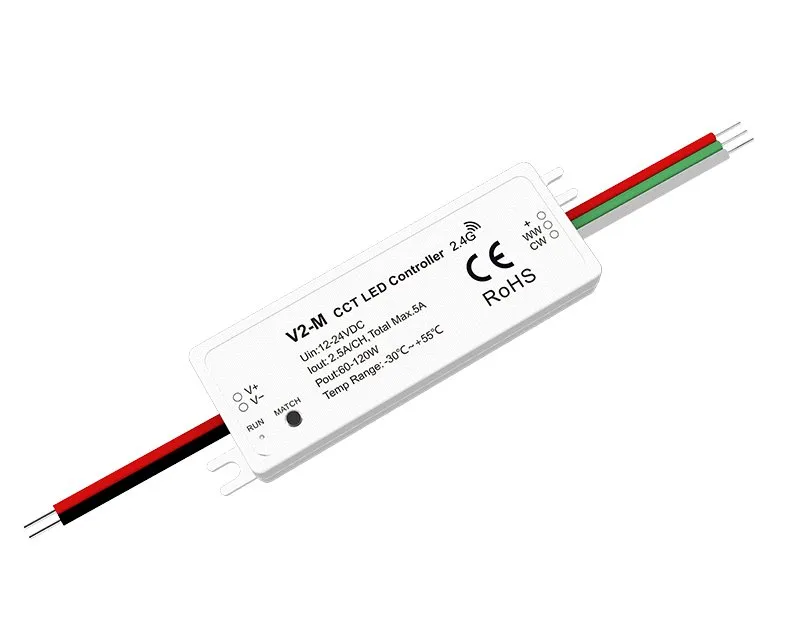

| V2-M | 2CH*2.5A 12-24VDC Dual Color LED Mini RF Controller | 📄VIEW |

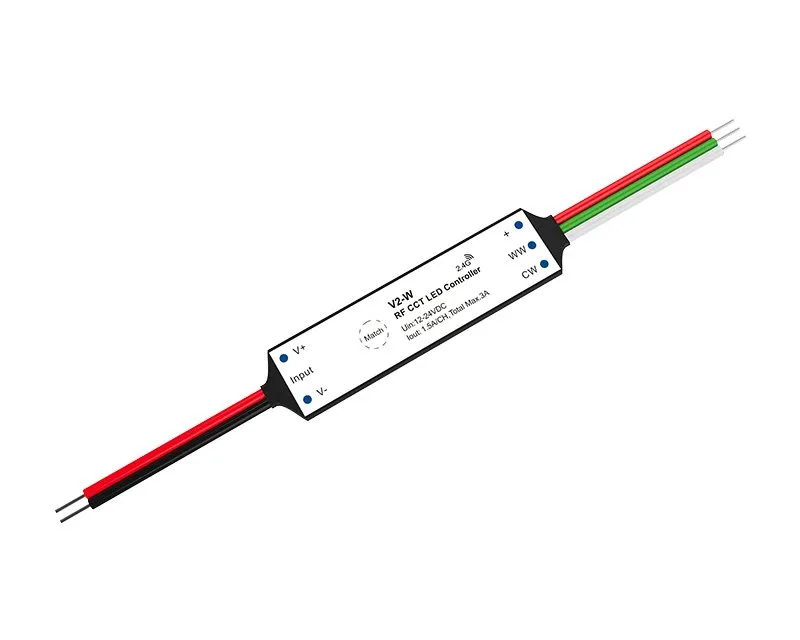

| V2-W | 2CH*1A 12-24VDC Dual Color LED Mini Controller | 📄VIEW |
| T2 | 4CH*3A 12-24VDC CV Color Temperature Touch Panel Controller | 📄VIEW |
| T2-1 | 4CH*3A 12-24VDC CV Color Temperature Touch Panel Controller | 📄VIEW |
| T2-K | 2CH*5A 12-48VDC CV Color Temperature Controller | 📄VIEW |

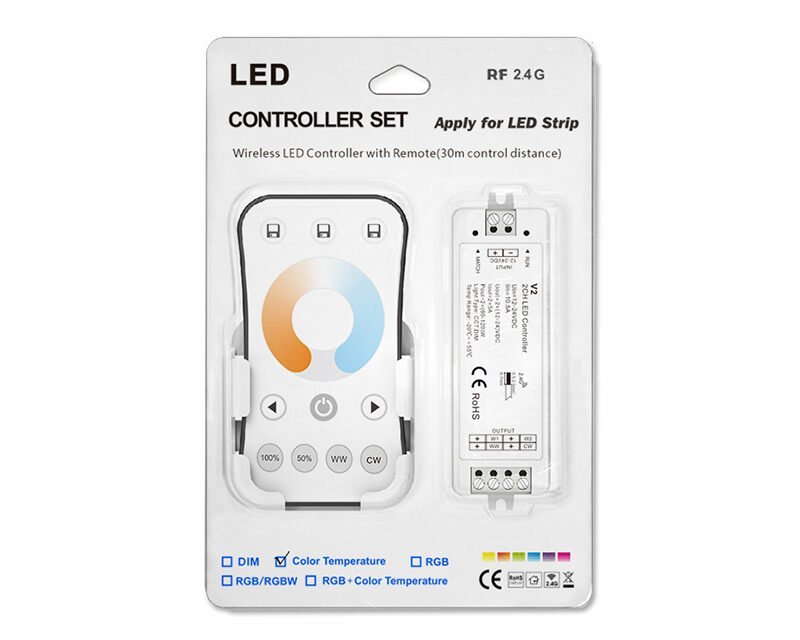

| V2+R7-1 | 5A*2CH Color Temperature LED Controller Set | 📄VIEW |

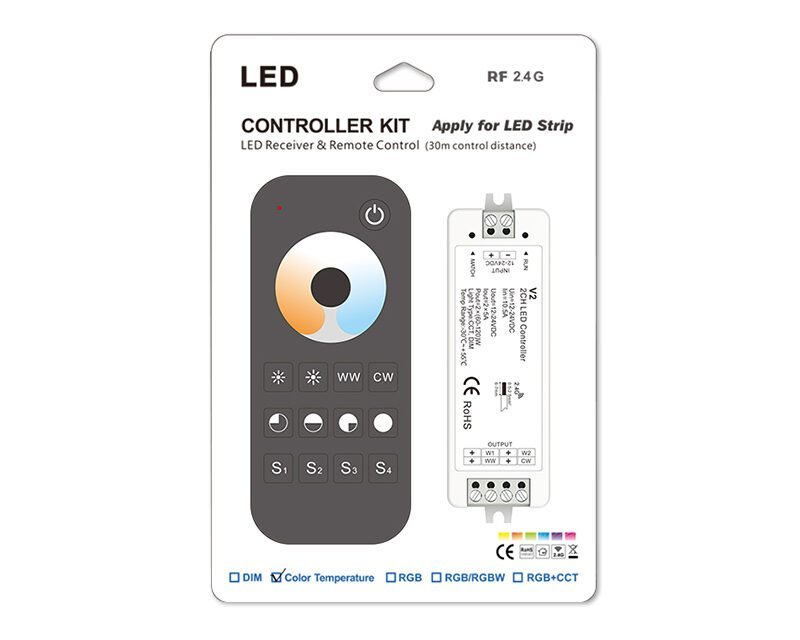

| RT2+V2 | 5A*2CH Dual Color LED Controller Kit | 📄VIEW |

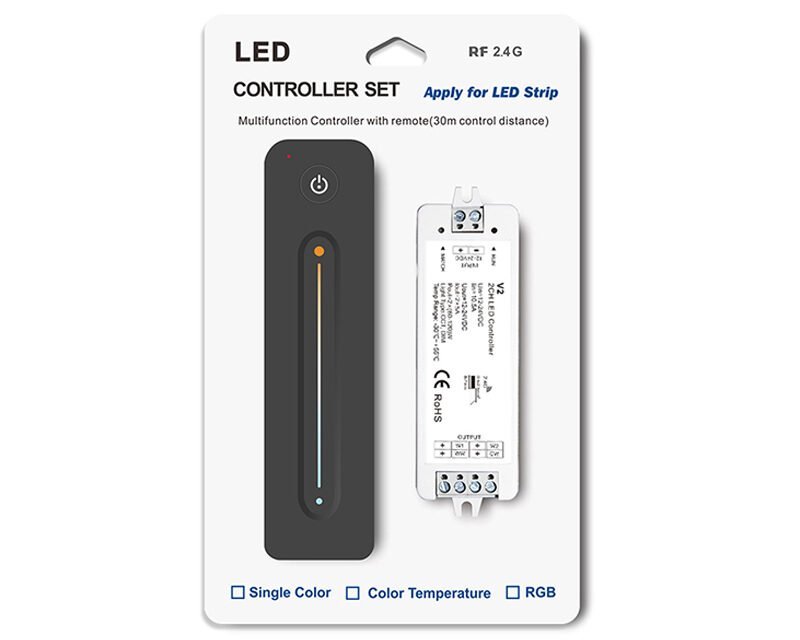

| V2+R12 | 5A*2CH Color Temperature LED Controller Set | 📄VIEW |

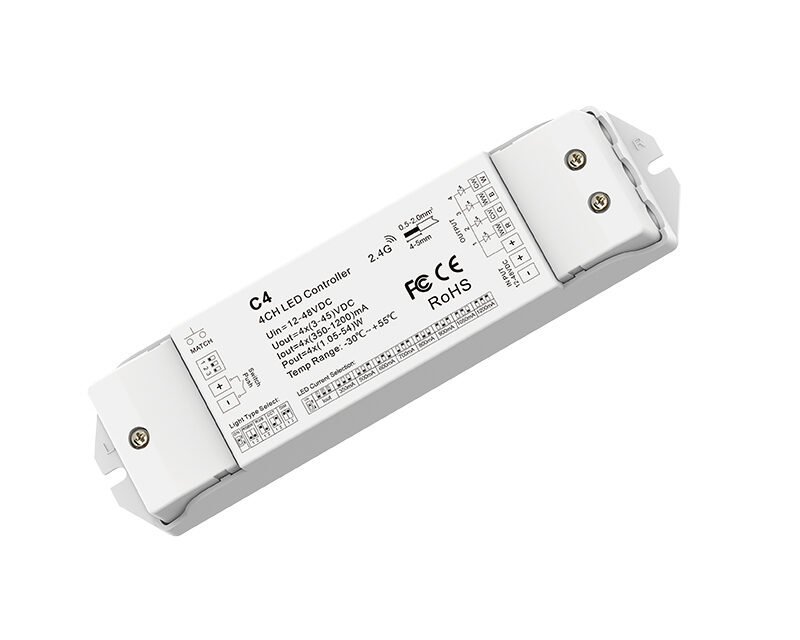

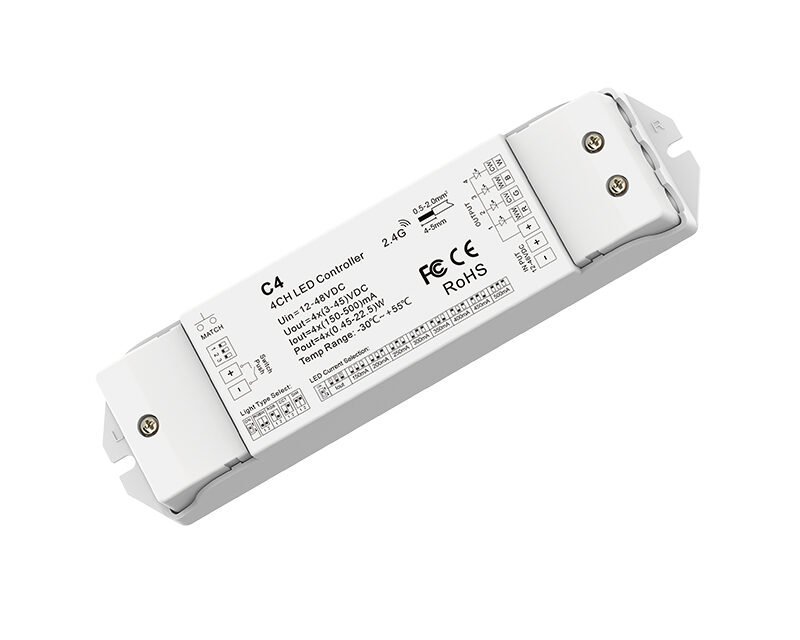

RF Constant Current Controller (CCT, RGBW, RGB, Dimming)
The RF CCT Constant Current Receiver is designed to function as a dual-color CCT controller, configurable via DIP switch settings.
- It accommodates a versatile DC power input range of 12/24/36/48V, providing a 4-channel PWM constant current output, suitable for 1 or 2 groups of dual-color CCT.
- The standard output is set at 350/700mA, with customization options available for other currents ranging from 150-1200mA.
- This receiver boasts a sophisticated 4096-level, flicker-free PWM dimming capability for precise light control.
- Equipped with wireless 2.4G technology, it offers a remote control range of up to 30 meters, extendable to several hundred meters through its cascade function.
- It is capable of receiving signals from 1 to 10 remote controls, enabling effective partitioned control of lighting zones.
- The system integrates seamlessly with remote controls, panels, and WiFi-RF converters to form a complete lighting control solution.
- It can be connected to an external push switch, allowing for both on/off functionality and 0-100% dimming control.
- Safety features include protections against short circuits and reverse polarity, ensuring reliable and secure operation.
RF CCT Remote Controller
The hand-held CCT remote control, available in single and 4-zone models, is powered by either 7#AAA or button batteries, offering varied choices.
1. Designed for dual-color LED lights, it allows on/off switching, color temperature, brightness adjustments, and scene settings.
2. With wireless 2.4G technology, it has a 30-meter range, extendable through cascading controller connections.
3. Standby time varies from six months to two years based on usage.
4. Each remote can pair with an unlimited number of controllers, and each zone in multi-zone remotes can do the same.
5. Controllers can pair with 1 to 10 remotes, enabling flexible zone matching.
R7
R7-1
RT2
RT7
R12
R2
RS2
RT8C
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|

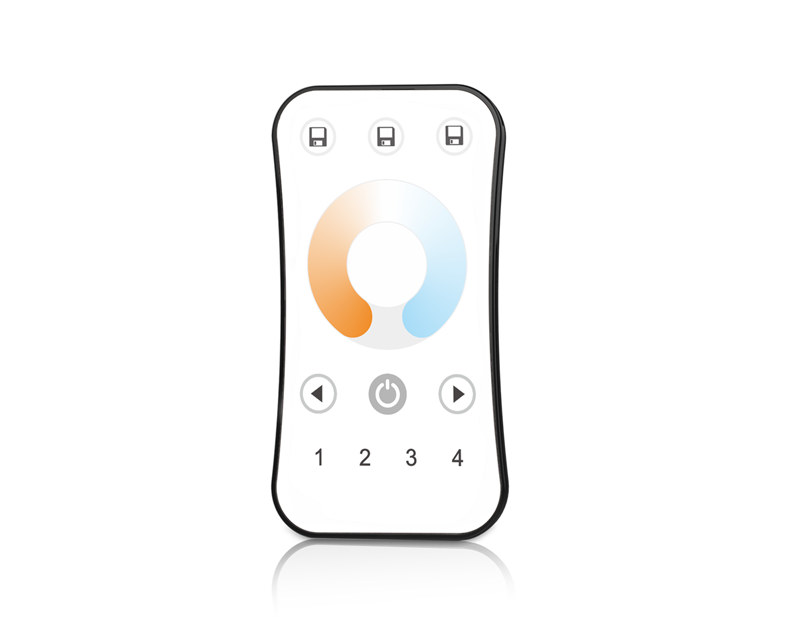

| R7 | 4 Zones Color Temperature Remote Control | 📄VIEW |

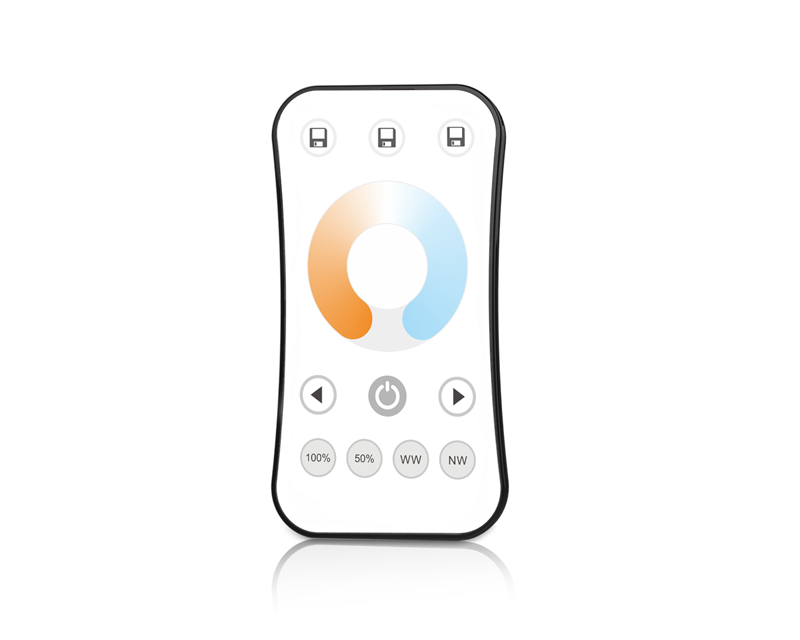

| R7-1 | 1 Zone Color Temperature Remote Control | 📄VIEW |

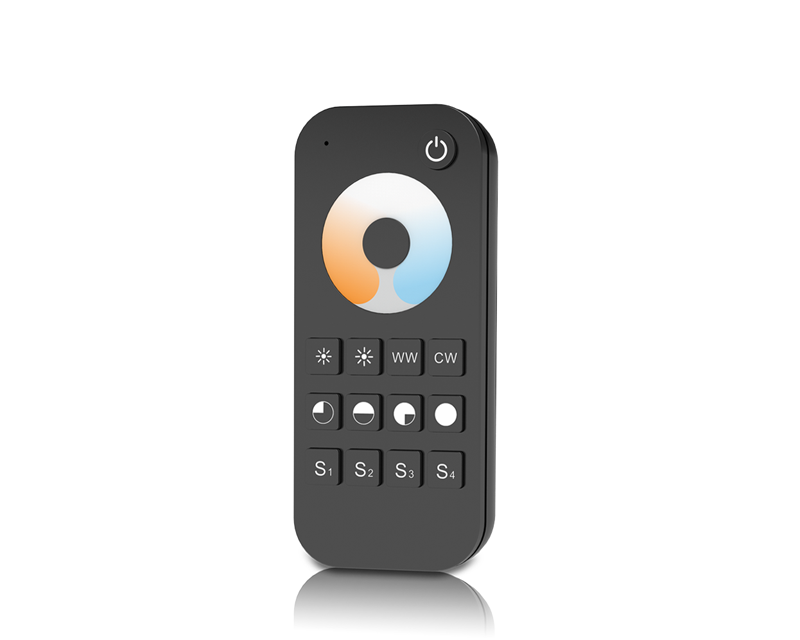

| RT2 | 1 Zone Color Temperature Remote Control | 📄VIEW |
| RT7 | 4 Zones Color Temperature Remote Control | 📄VIEW |
| R12 | 1 Zone Color Temperature Remote Control | 📄VIEW |

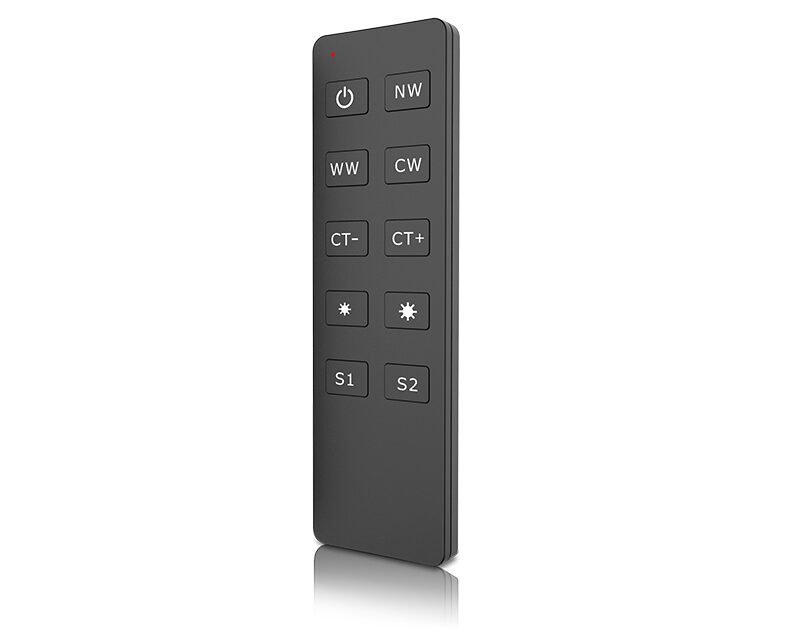

| R2 | 1 Zone Color Temperature Remote Control | 📄VIEW |
| RS2 | 4 Zones Color Temperature Remote Control | 📄VIEW |
| RT8C | 8 Zones Color Temperature Remote Control | 📄VIEW |
RF CCT Panel Remote Controller
The CCT panel remote control, offered in single and 4-zone variants, includes button, knob, and touch glass panels (white & black), supporting high voltage AC100-240V, low voltage DC12-24V, and power options of 7#AAA or button batteries.
1. Designed for dual-color LED lights, it allows on/off control, color temperature, brightness adjustment, group partitioning, and scene selection.
2. Utilizing wireless 2.4G technology, it reaches up to 30 meters, extendable through cascading with other controllers.
3. Battery-powered remotes have a six months to two years standby time, based on usage.
4. Each remote can pair with an unlimited number of controllers, applicable for each zone in multi-zone remotes.
5. Controllers can match with 1-10 remote controls, adaptable across different remote zones.

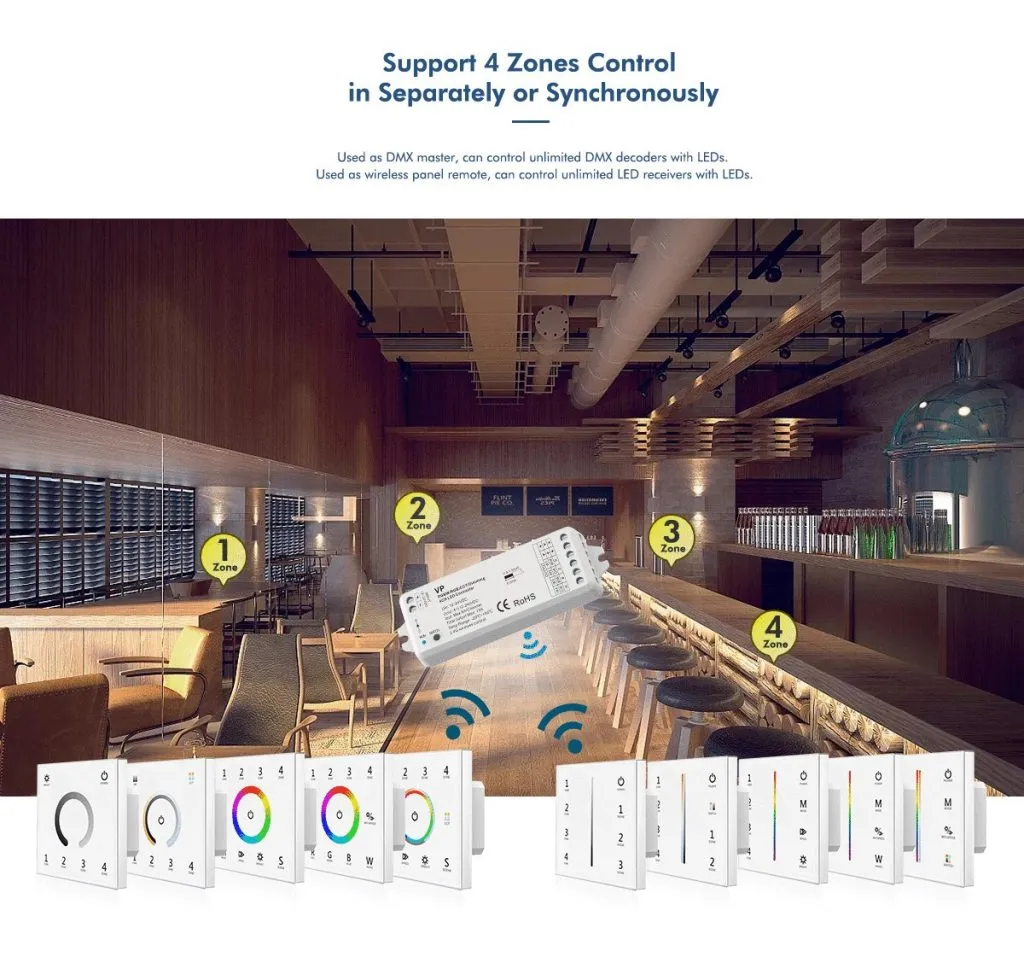

6. All CCT panel controllers, including constant voltage and DMX512 masters, can serve as remotes for other RF controllers and receive signals from various remotes.
T12
T12-1
T22
TW2
TW2-4
RK2
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|
| T12 | 4 Zones Color Temperature Remote Control(100-240VAC Input) | 📄VIEW |
| T12-1 | 4 Zones Color Temperature Remote Control(100-240VAC Input) | 📄VIEW |

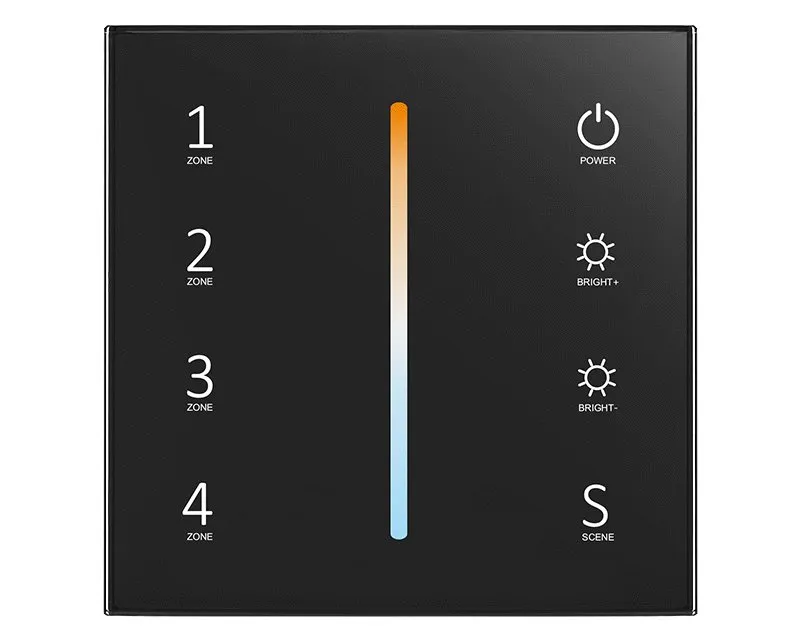

| T22 | 4 Zones Color Temperature Remote Control(2*AAA battery) | 📄VIEW |
| TW2 | 1 Zone CCT Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery) | 📄VIEW |
| TW2-4 | 4 Zone CCT Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery) | 📄VIEW |

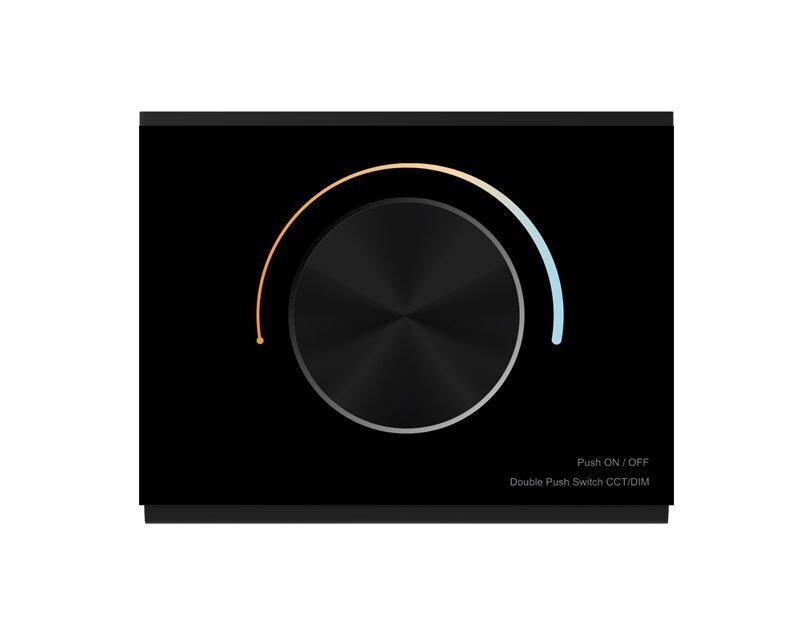

| RK2 | Desk Mount Color Temperature Remote Control(CR2032 Battery) | 📄VIEW |
Download Full Catalog to View More Products
Access our latest catalog to gain comprehensive insights into our extensive range of products, encompassing their features, benefits, specifications, functions, and warranties, among other pertinent details. Opt for the paperless version to save money and protect the environment.
How to choose right RF CCT Controller?
Selecting the right RF CCT (Color Temperature Tunable) controller ensures stable, flexible, and user-friendly control over dual-white LED lighting systems. The first step is to identify your lighting type and power configuration. If you are using dual-color CCT LED strips or lamps, choose a controller that supports 2-channel output—one channel for warm white and one for cool white. For more advanced setups or additional zones, 3/4/5-channel controllers may offer extra flexibility.
Next, consider the control method required for your project. RF CCT controllers from boqi are compatible with handheld remotes, wall-mounted panel remotes, and multi-zone systems. If your installation needs group control, scene setting, or separate zone configuration, choose a controller that supports up to 10 remotes and unlimited receivers per zone. This allows extensive scalability for residential or commercial environments.
Wireless performance is another key factor. boqi controllers use 2.4G RF technology, providing stable communication up to 30 meters. For large spaces, choose controllers with a cascading (signal forwarding) function, allowing control distances to extend to several hundred meters.
Finally, ensure compatibility with your system: confirm whether you need constant voltage or constant current versions, and whether the controller should integrate with other devices such as WiFi-RF converters or power repeaters. Selecting the right combination ensures smooth dimming, synchronized CCT adjustments, and reliable long-term performance.
Lead Time
- Samples: lead times are typically 2-3 days, extending for customizations like custom labels.
Bulk Orders: take 3-4 weeks to process.
Shipping Time: Express shipping via couriers like DHL or FedEx takes 5-7 days, while sea freight is around 2-4 weeks.
Guarantee: Boqi maintains an efficient order processing team, ensuring minimal lead times even amid raw material shortages by stocking essential components. For urgent projects, a specialized team ensures schedules are met.
5 Year Warranty
boqi’s R&D team, rigorous protocols, and advanced factory steps ensure our LED drivers’ high quality.
- Our engineers bring deep expertise in electronics and lighting, contributing to our robust development process.
- We enforce strict production standards, using only certified components to guarantee quality.
- Designs are crafted with significant safety and performance margins, ensuring durability.
- Our verification system is meticulous, reflecting our commitment to precision in product validation.
Our Certificates
We are committed to delivering an unparalleled customer experience. In addition to our exceptional customer service, we want our customers to have utmost confidence in the safety and quality of our 0-10V dimmable LED Drivers. To this end, all our 0-10V LED Drivers have successfully passed the CE, CB, SAA, and RoHS certifications.

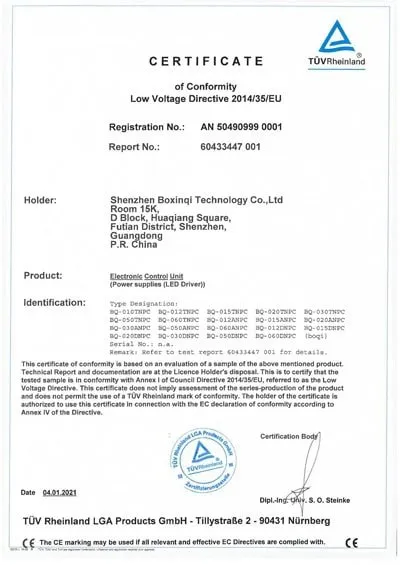

CE – LVD

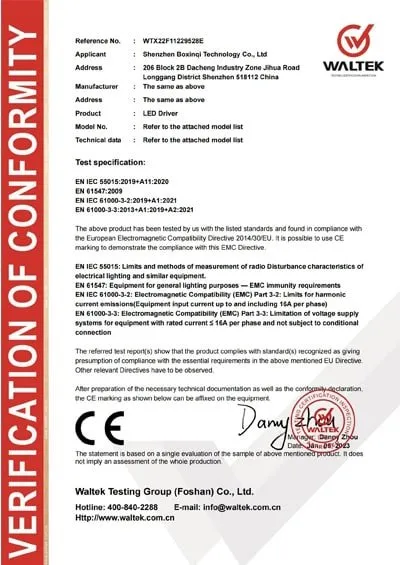

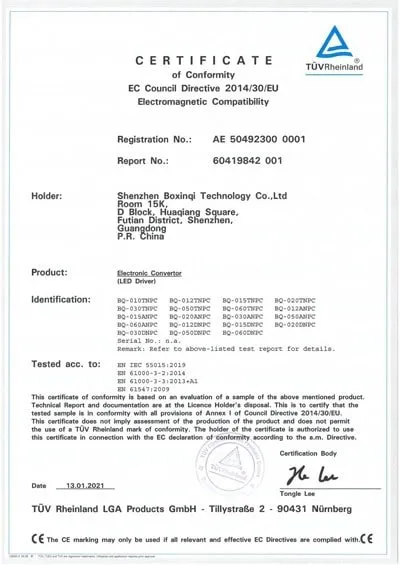

CE – EMC
TUV – CE

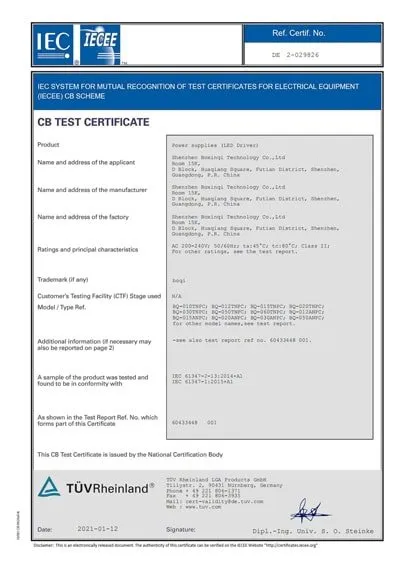

TUV – CB

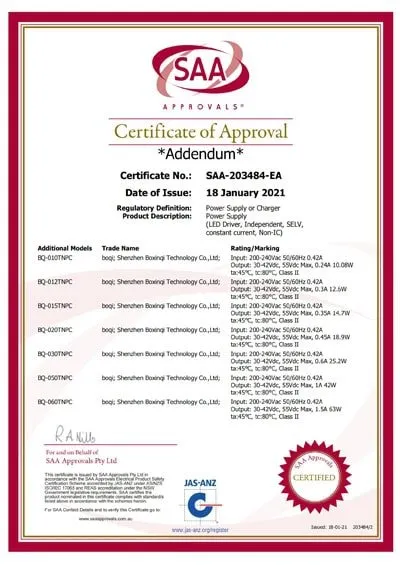

SAA

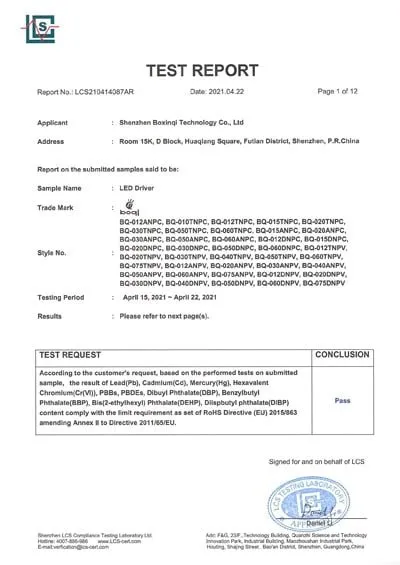

RoHS
Tell us your requirements
Boqi encourages customer feedback and offers customization options to meet specific requirements. They provide a platform for customers to submit their requirements and suggestions.
*We respect your confidentiality and all information is protected
FAQ
These FAQs cover basic information about RF CCT Controllers, their operation, compatibility, and troubleshooting. For more specific information, it’s recommended to refer to the user manual of the specific model you are using or considering.
