RF DIM Control System

Wireless lighting control is rapidly becoming a preferred solution in modern projects thanks to its cable-free setup, easy installation, cost efficiency, and stable performance. The BOQI Wireless Dimming Series combines flexibility and innovation, offering a complete range of 1/2/3/4-channel controllers, remotes, wall panels, and dimmable LED drivers to create intelligent, seamless lighting environments.

This series enables on/off switching, brightness adjustment, scene creation, grouping, scheduling, and sensor integration, providing a fully customizable lighting experience.

  1. The single-channel controller works with all BOQI remote types—handheld, panel, or desktop—for CCT, RGB, RGBW, and RGB+CCT control, delivering 0–100% dimming, 256-step brightness, and 4096-level grayscale precision.

  2. Operating on 2.4GHz wireless technology, each remote achieves a 30-meter control range, with signal forwarding between controllers extending coverage to hundreds of meters.

  3. Multi-channel controllers (2/3/4CH) serve as dimming controllers for single-color LEDs when paired with dimming remotes.

  4. Each controller can link with up to 10 remotes, supporting multiple zones and grouping configurations.

  5. One remote can control multiple zones, while each zone can include an unlimited number of controllers.

  6. Controllers in the same zone automatically synchronize for consistent lighting effects.

  7. The system includes constant voltage and constant current controllers, WiFi-RF converters, power repeaters, and dimmable LED drivers, offering a complete wireless lighting ecosystem.

RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

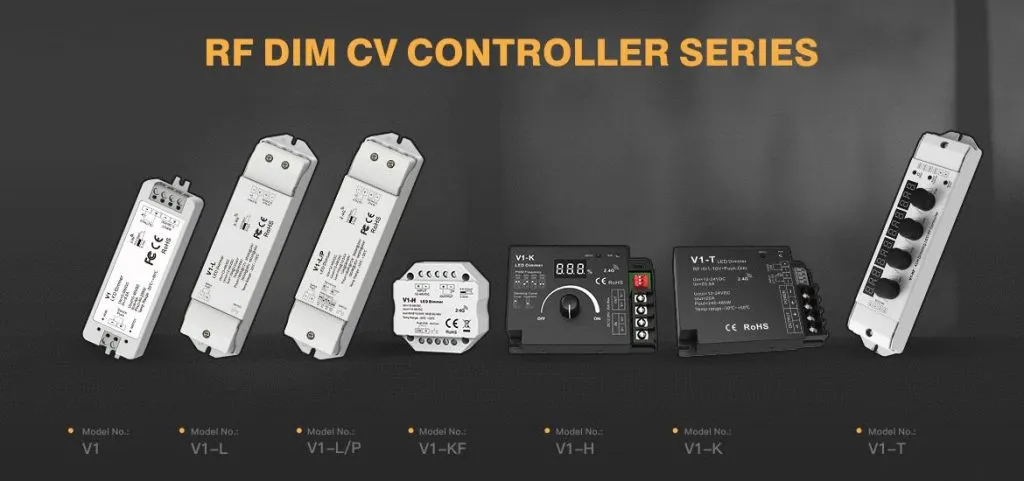

RF DIM Control System - Product Line

RF Constant Voltage Controller (Dimming)

  1.  Supports DC12/24/36/48V power with 1/3/4 channel PWM output for diverse electrical needs.
  2.  Features 4096-level flicker-less dimming, 256 brightness levels, and precise gray-scale control.
  3.  Wireless 2.4G technology enables a 30-meter remote control range, extendable with cascade function.
  4.  Compatible with 1-10 remotes for segmented lighting control.
  5.  Dimming remote integration allows single-color light control with multi-channel controllers.
  6.  Compatible with remote controls, panels, and WiFi-RF converters for a comprehensive lighting system.
  7.  Offers multiple dimming methods: push switches, touch buttons, knobs, and digital displays.
  8.  Equipped with over-heat, over-load, short circuit, and reverse polarity protection.
  9.  Expandable output with a power repeater for scalable lighting solutions.
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

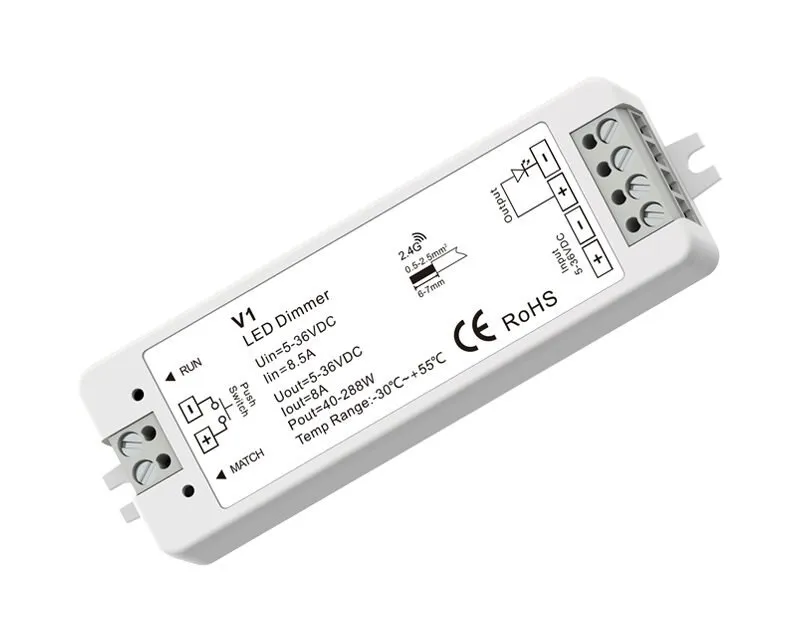

V1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-L
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-L/P
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

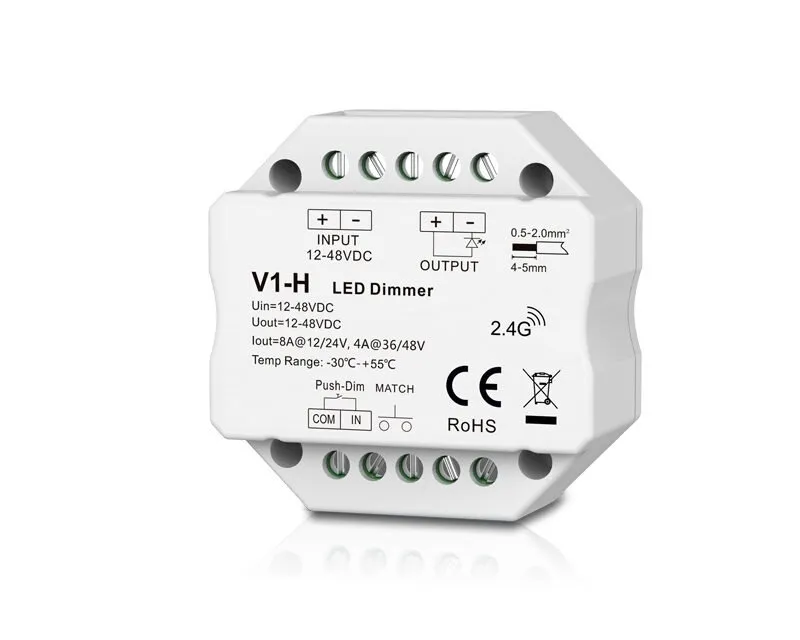

V1-H
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

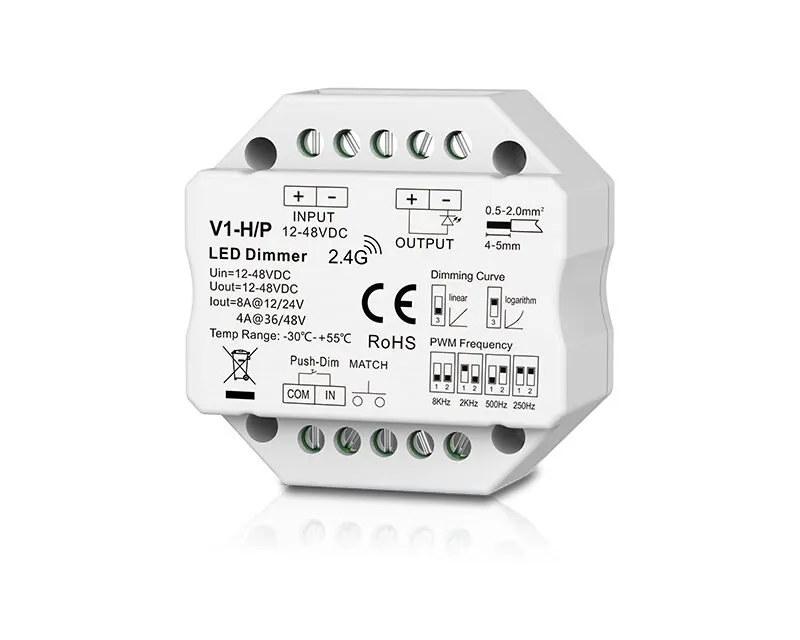

V1-H/P
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

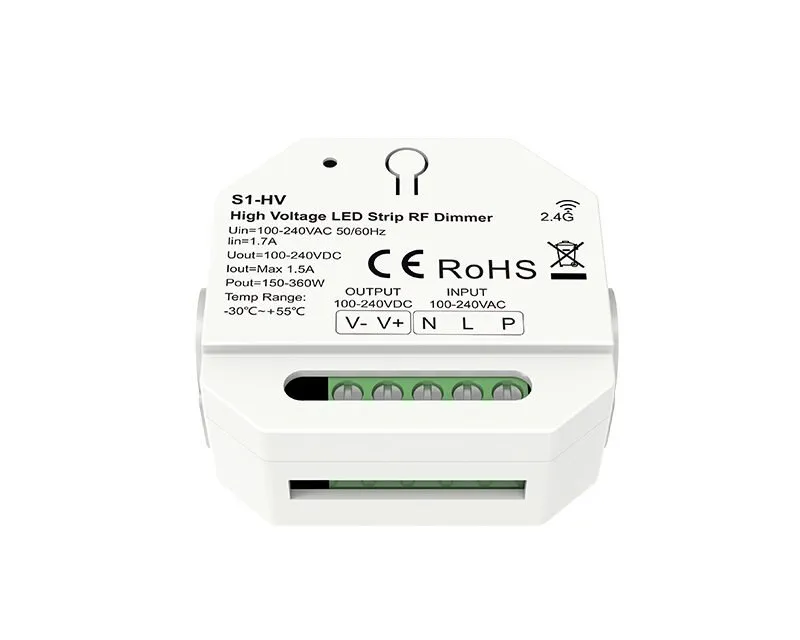

S1-HV
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

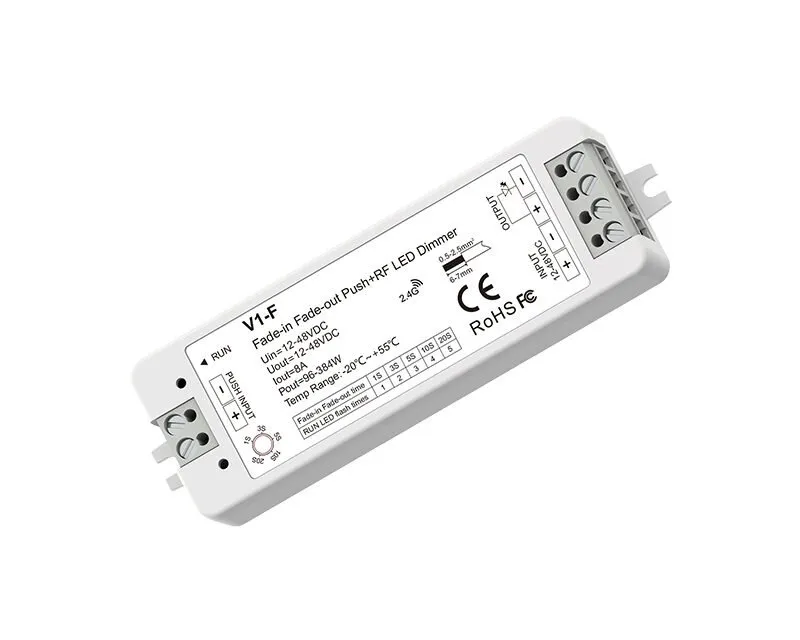

V1-F
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

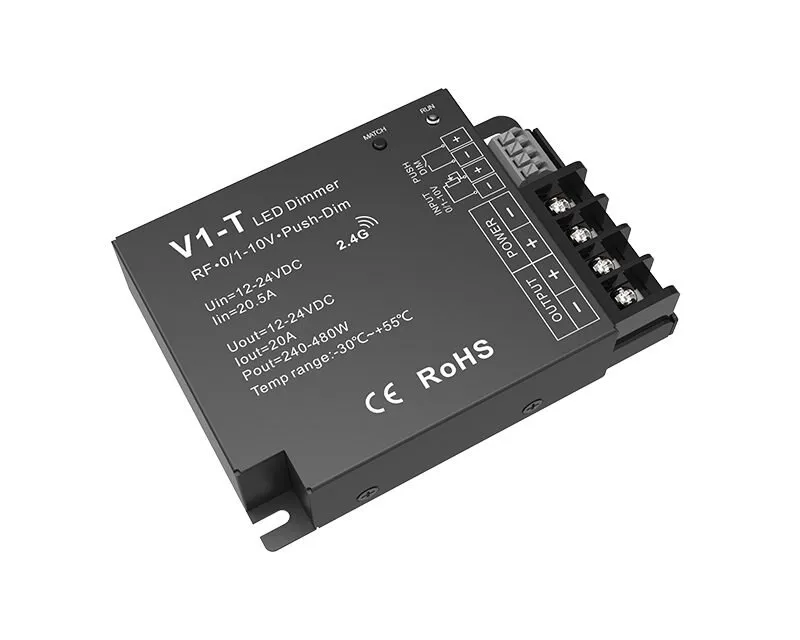

V1-T
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

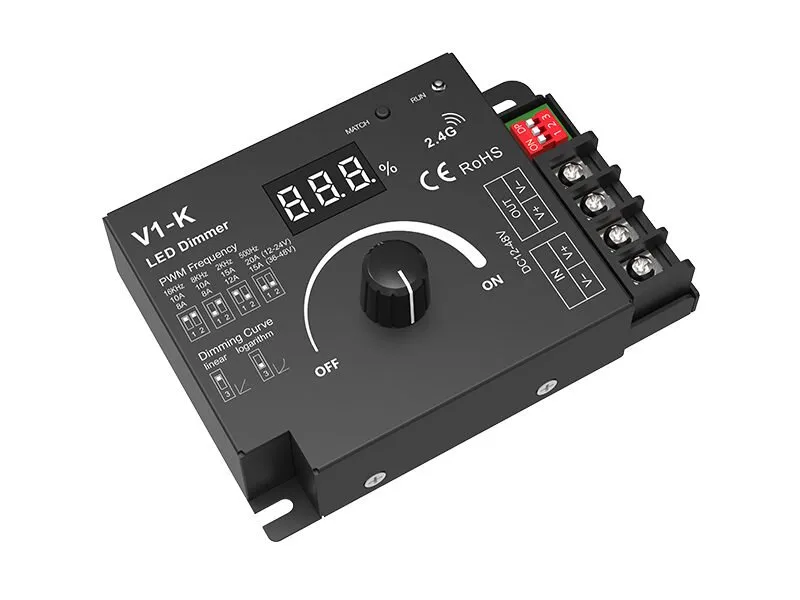

V1-K
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-B
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

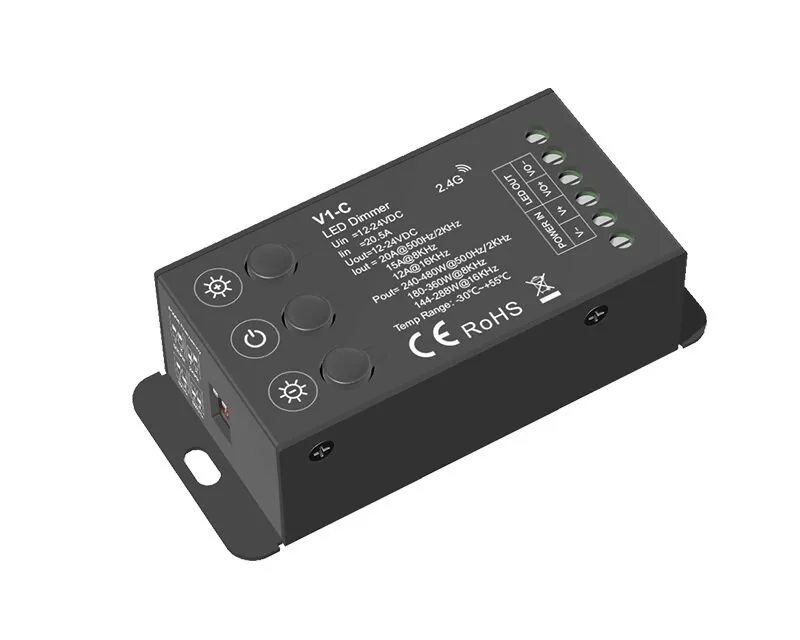

V1-C
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-M
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-W
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1-N(PUSH Dim)
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
Q1-S(without RF)
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
VD1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V4-WPS
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T1-1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T1-K
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
V1+R6-1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

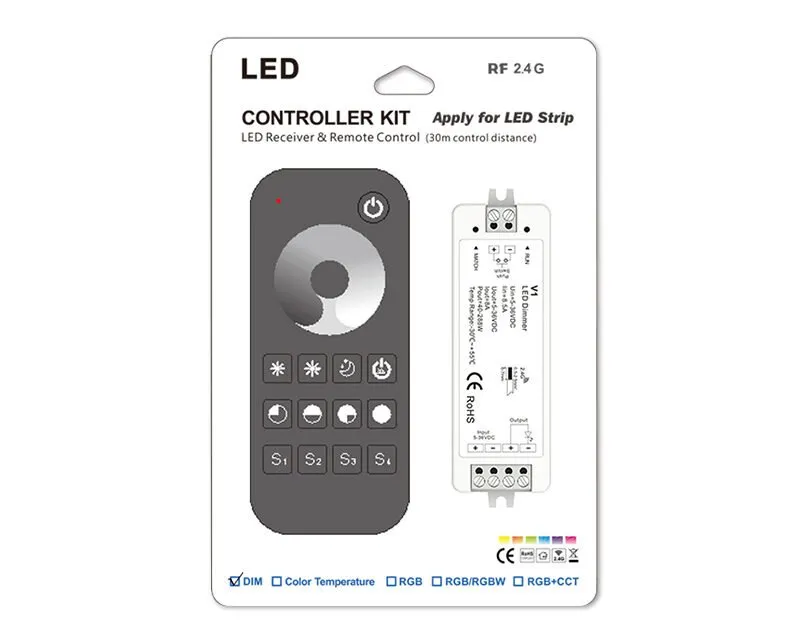

RT1+V1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

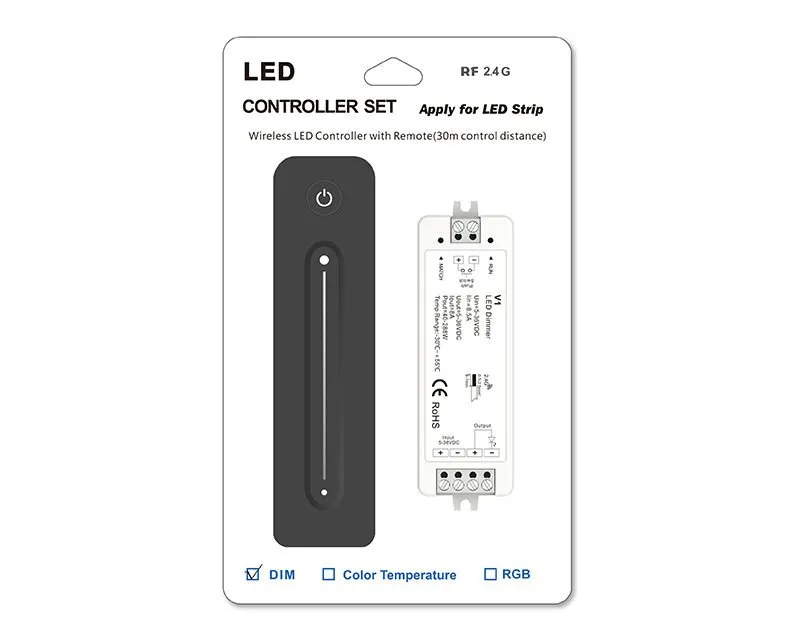

V1+R11
MODELDESCRIPTIONDATASHEET
V11CH*8A 5-36VDC CV Controller, Push-Dim📄VIEW

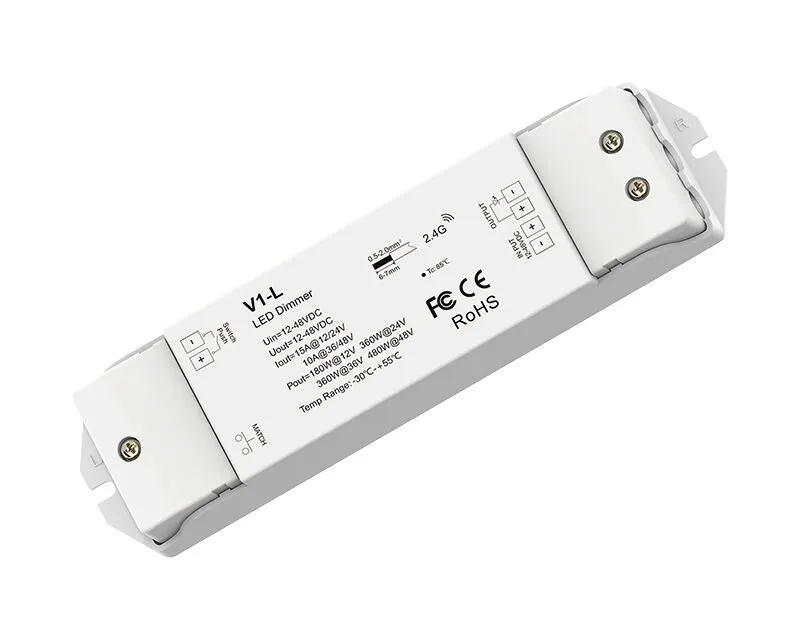

V1-L1CH*15A 12-48VDC CV Controller, Push-Dim📄VIEW

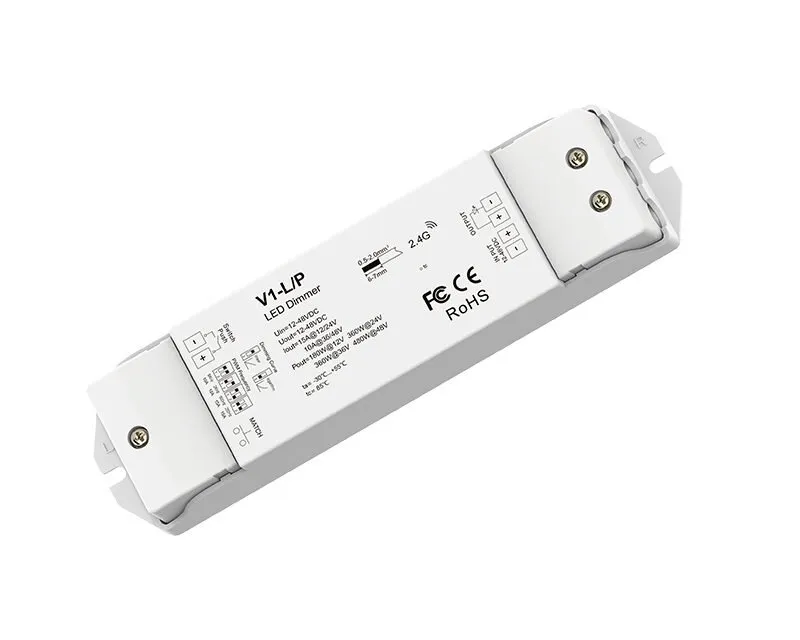

V1-L/P1CH*15A 12-48VDC CV Controller, Push-Dim📄VIEW
V1-H1CH*4A/8A 12-48VDC RF Controller Push-Dim Wall Box Mounting📄VIEW
V1-H/P1CH*4A/8A 12-48VDC CV controller📄VIEW
S1-HV1CH*1.5A 100-240VAC High voltage LED Strip RF dimmer📄VIEW
V1-F1CH*8A 12-48VDC CV Fade-in Fade-out LED Dimmer(Push Dim)📄VIEW
V1-T1CH*20A 12-24VDC CV RF,0 /1-10V,Push-Dim(3-in-1) Controller📄VIEW
V1-K1CH*20A 12-48VDC CV Controller📄VIEW

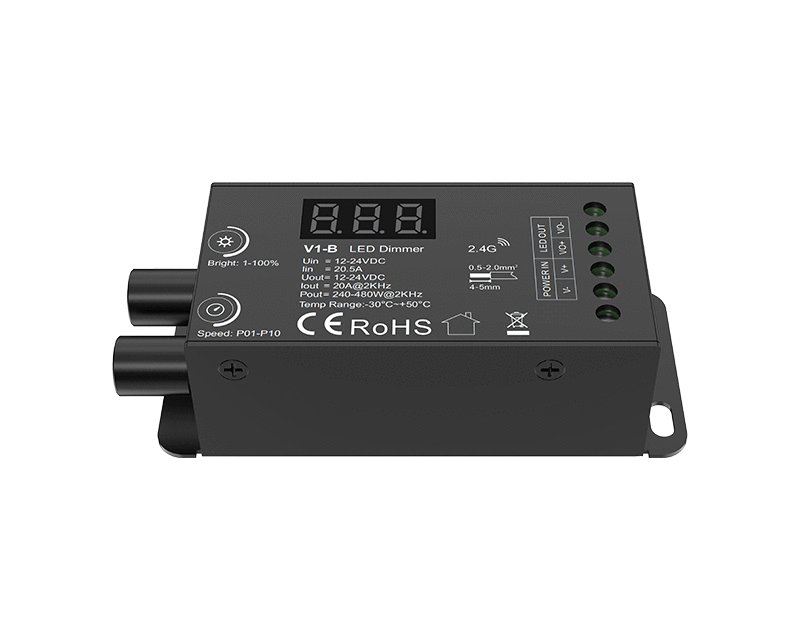

V1-B1CH*20A 12-24VDC CV Controller📄VIEW
V1-C1CH*20A 12-24VDC CV Controller📄VIEW
V1-M1CH*5A 12-24VDC CV Mini Controller📄VIEW

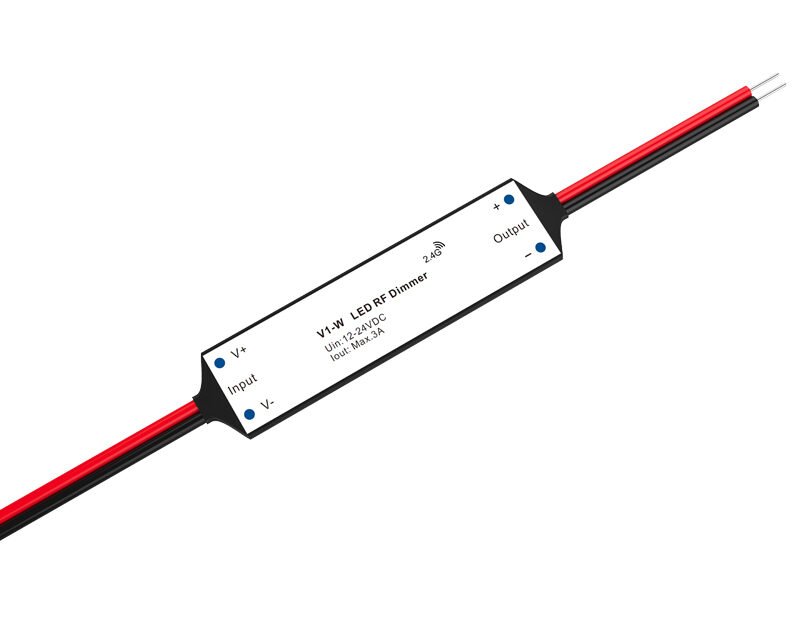

V1-W1CH*3A 12-24VDC CV Mini Controller📄VIEW

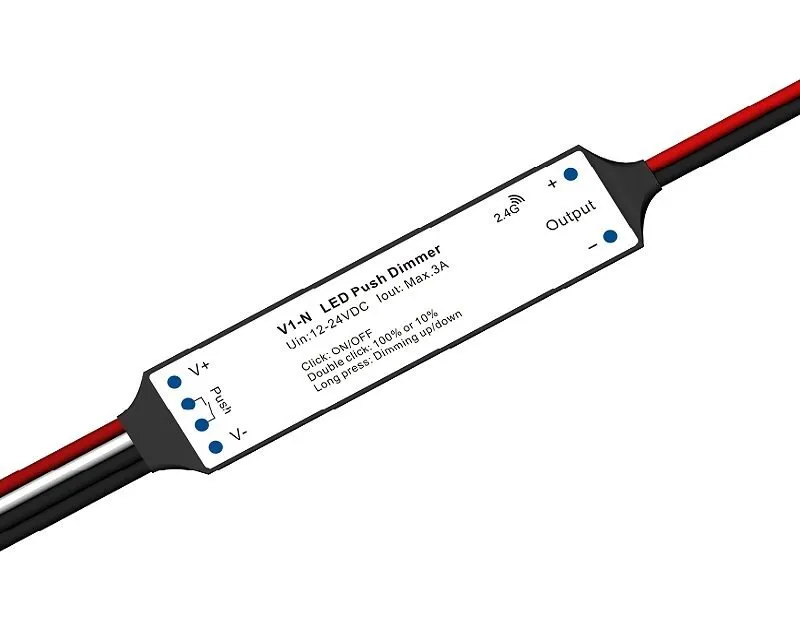

V1-N (Push Dim)1CH*3A 12-24VDC CV Mini Controller📄VIEW
Q1-S( without RF)1CH*4A 12-24VDC 3-Key Mini Controller📄VIEW
VD15-24VDC 1CH*5A RF LED Controller📄VIEW
V4-WPS4CH*5A 12-36VDC IP67 Waterproof Controller📄VIEW

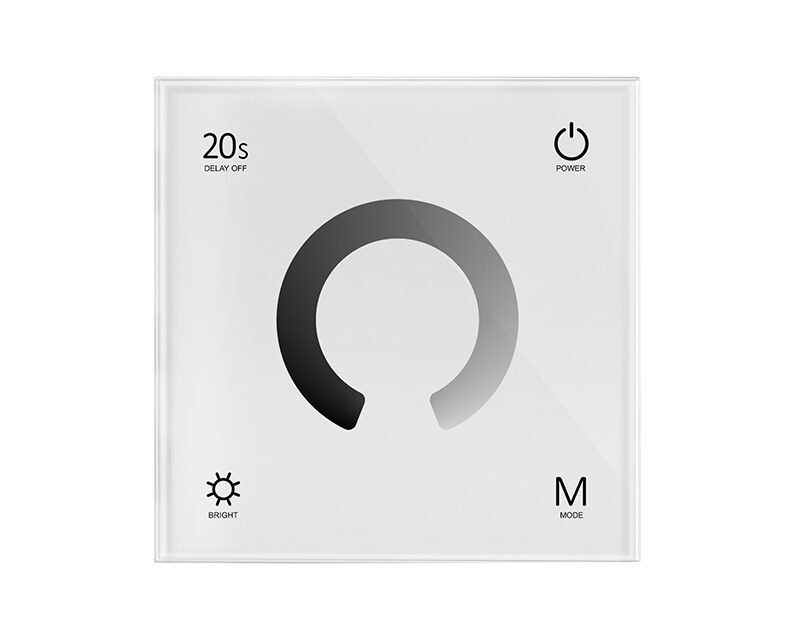

T14CH*3A 12-24VDC CV Dimming Touch Panel Controller📄VIEW
T1-14CH*3A 12-24VDC CV Dimming Touch Panel Controller📄VIEW
T1-K3CH*4A 12-48VDC CV Dimming Controller📄VIEW

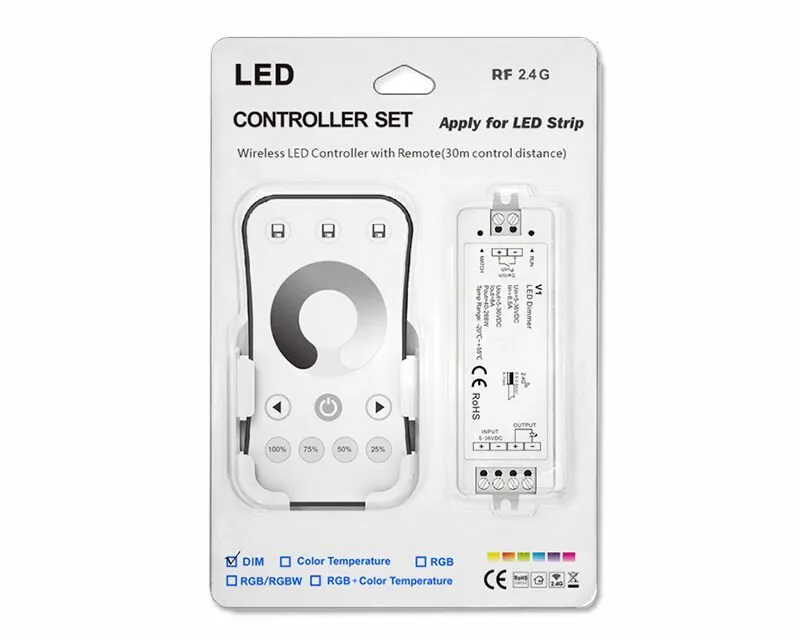

V1+R6-18A*1CH DIM LED Controller Set📄VIEW
RT1+V18A*1CH Single Color LED Controller Kit📄VIEW
V1+R118A*1CH LED Controller Set📄VIEW



Get Instant Quote
Back To Index

RF Dimming Remote Controller

The hand-held dimming remote control is available in single zone, 4 zone, and 8 zone configurations, powered either by 7#AAA batteries or a button battery. This variety offers customers a range of choices to suit their specific needs.

  1.  The remote is designed for use with single color LED lights, providing capabilities for turning on/off, adjusting brightness, grouping partitions, and setting scenes.
  2.  It employs Wireless 2.4G technology, enabling a remote control distance of up to 30 meters. Control distances can extend to several hundred meters through cascading connections between controllers.
  3.  The standby time of the remote ranges from six months to two years, varying according to usage frequency.
  4.  Each remote can theoretically be paired with an unlimited number of controllers, and for multi-zone remotes, each zone can also be paired with countless controllers.
  5.  Every controller can be synchronized with up to 10 different remote controls, and a single controller can be paired across different zones of a remote.
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
R6-1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
R6
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RT1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RT6
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
R11
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
R1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RU4
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RU8
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RT8
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RS1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RS6
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
R1-1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RM1
MODELDESCRIPTIONDATASHEET
R6-11 Zone Dimming Remote Control📄VIEW
R64 Zones Dimming Remote Control📄VIEW
RT11 Zone Dimming Remote Control📄VIEW
RT64 Zones Dimming Remote Control📄VIEW
R111 Zone Dimming Remote Control📄VIEW
R11 Zone Dimming Remote Control📄VIEW
RU44 Zones Dimming Remote Control📄VIEW
RU88 Zones Dimming Remote Control📄VIEW
RT88 Zones Dimming Remote Control📄VIEW
RS14 Zones Dimming Remote Control📄VIEW
RS64 Channels Dimming Remote Control📄VIEW
R1-11 Zone Dimming Remote Control📄VIEW
RM11 Zone Dimming Remote Control📄VIEW



Get Instant Quote
Back To Index

RF Dimming Panel Remote Controller

The dimming panel remote control is available in configurations ranging from single zone to four zones, encompassing button panels, knob panels, and touch glass panels in both white and black glass. Power options include high voltage AC100-240V, low voltage DC12-24V, 7#AAA battery, or button battery, offering a diverse array of choices for customers.

1. This remote is adept for managing single color LED lights, enabling functions like on/off, brightness control, group partitioning, and scene setting.
2. Utilizing Wireless 2.4G technology, it offers a remote control range of 30 meters, with the potential to extend several hundred meters via cascading connections between controllers.
3. The battery life of the panel remote spans six months to two years, varying based on usage frequency.
4. Theoretically, each remote can be paired with an unlimited number of controllers, and this extends to each zone in a multi-zone remote.
5. Each controller is capable of being paired with 1-10 remote controls and can be assigned to different zones of a single remote control.
6. All dimming panel controllers, including constant voltage controllers, DMX512 masters, Triac dimmers, and 0/1-10V dimmers, can function as remote controls for other RF controllers and also serve as RF controllers to receive signals from other remotes.

RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
PF1-2
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
PK1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T11-K
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T11
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T11-1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T21
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
TW1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
TW1-4
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RK1
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
T11(IT)
MODELDESCRIPTIONDATASHEET
PF1-22 Zones Dimming Remote Control(CR2032 Battery)📄VIEW
PK1Dimming Remote Control(CR2032 Battery)📄VIEW
T11-KRotary Panel Dimming Remote Control(100-240VAC Input)📄VIEW
T114 Zones Dimming Remote Control(100-240VAC Input)📄VIEW
T11-14 Zones Dimming Remote Control(100-240VAC Input)📄VIEW
T214 Zones Dimming Remote Control(2*AAA Battery)📄VIEW
TW11 Zone Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)📄VIEW
TW1-44 Zone Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery)📄VIEW
RK1Desk Mount Dimming Remote Control(CR2032 Battery)📄VIEW
T11(IT)4 Zones Dimming Remote Control(100-240VAC Input)📄VIEW



Get Instant Quote
Back To Index

RF CV Dimmable Driver (DIM)

  • This unit provides a DC12/24V output and features a single channel PWM for constant voltage regulation. The output power ranges between 40-75W, accommodating a variety of lighting needs.
  • The dimming interface includes RF Wireless and AC Push-Dim options, mirroring the control functions found in boqi RF dimming constant voltage controllers.
  • For safety, the device is equipped with over-heat, over-load, and short circuit protection systems, which automatically reset to ensure continuous operation.
  • The product boasts a lifespan of 50,000 hours and comes with a 5-year warranty, underscoring its reliability and quality assurance.
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

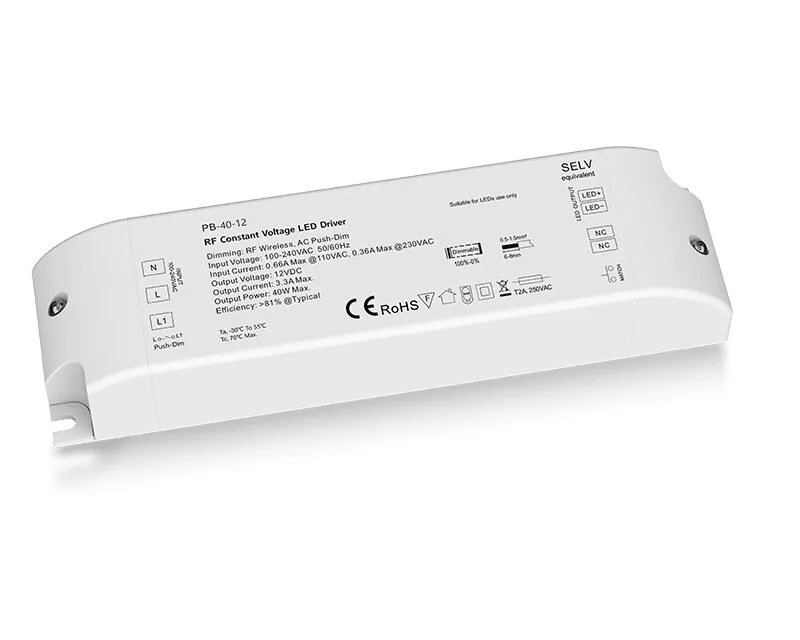

PB-40-12
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

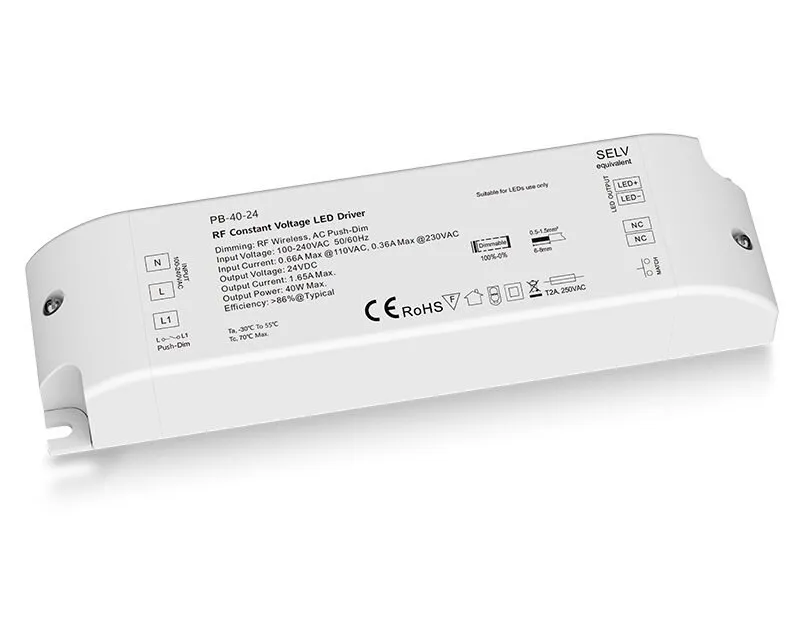

PB-40-24
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

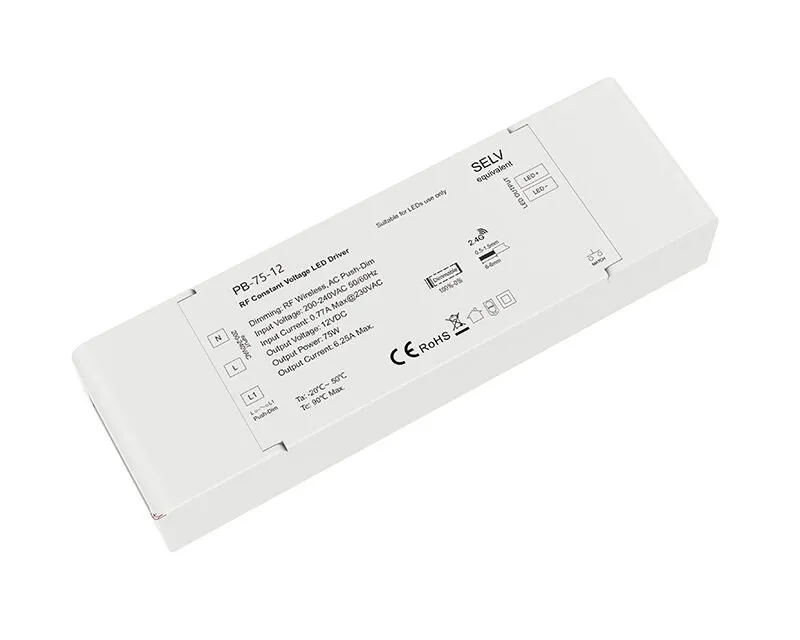

PB-75-12
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

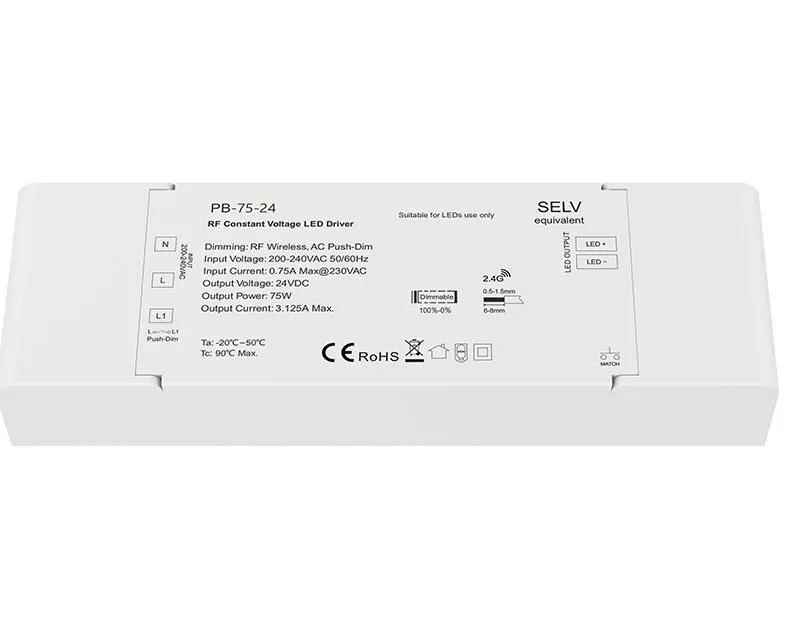

PB-75-24
MODELDESCRIPTIONDATASHEET
PB-40-1240W 12V RF Dimmable LED Driver, Push-Dim📄VIEW
PB-40-2440W 24V RF Dimmable LED Driver📄VIEW
PB-75-1275W 12V RF Dimmable LED Driver📄VIEW
PB-75-2475W 24V RF Dimmable LED Driver📄VIEW
Get Instant Quote
Back To Index

Download Full Catalog to View More Products

Access our latest catalog to gain comprehensive insights into our extensive range of products, encompassing their features, benefits, specifications, functions, and warranties, among other pertinent details. Opt for the paperless version to save money and protect the environment.

Download Full Catalog Now

How to choose right RF Dimming Controller?

RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

Selecting the right RF dimming controller ensures stable wireless performance, smooth dimming, and compatibility with your LED lighting system. At boqi, RF controllers are designed to deliver reliable, interference-free communication and flexible control for both residential and commercial lighting.

1. Frequency and Range:
BOQI RF controllers operate on 2.4GHz, offering strong signal transmission and stable control over distances up to 30 meters without the need for additional wiring—ideal for large rooms or multi-zone lighting systems.

2. Lighting Type Compatibility:
Choose an RF controller that matches your LED driver type, such as constant voltage or constant current, and the number of channels required (single-color, CCT, RGB, or RGBW). This ensures accurate dimming and color consistency.

3. Control Options:
RF dimming controllers can be paired with remote controls, wall panels, or smartphone apps. For enhanced flexibility, many BOQI models support multi-zone control and synchronization with up to 10 receivers under one remote.

4. Dimming Performance:
BOQI RF controllers feature 256-step smooth dimming from 0–100%, ensuring flicker-free brightness control and compatibility with high-quality LED drivers.

By matching frequency, lighting type, and control needs, boqi RF dimming controllers provide stable, responsive, and user-friendly lighting control for any environment.

Lead Time

  • Samples: lead times are typically 2-3 days, extending for customizations like custom labels.

  • Bulk Orders: take 3-4 weeks to process.

  • Shipping Time: Express shipping via couriers like DHL or FedEx takes 5-7 days, while sea freight is around 2-4 weeks.

  • Guarantee: Boqi maintains an efficient order processing team, ensuring minimal lead times even amid raw material shortages by stocking essential components. For urgent projects, a specialized team ensures schedules are met.

RF DIM Series,RF DIM Control System,RF Dimming Remote Controller
RF DIM Series,RF DIM Control System,RF Dimming Remote Controller

5 Year Warranty

boqi’s R&D team, rigorous protocols, and advanced factory steps ensure our LED drivers’ high quality.

  • Our engineers bring deep expertise in electronics and lighting, contributing to our robust development process.
  • We enforce strict production standards, using only certified components to guarantee quality.
  • Designs are crafted with significant safety and performance margins, ensuring durability.
  • Our verification system is meticulous, reflecting our commitment to precision in product validation.

Tell us your requirements

Boqi encourages customer feedback and offers customization options to meet specific requirements. They provide a platform for customers to submit their requirements and suggestions.

*We respect your confidentiality and all information is protected

FAQ

An RF dimming controller is a wireless device that adjusts LED brightness using radio frequency (RF) signals, allowing remote control without additional wiring.

boqi RF dimming controllers operate on a stable 2.4GHz frequency, providing reliable wireless communication with minimal signal interference.

The effective control range is up to 30 meters in open space, making it suitable for both residential and commercial lighting applications.

Yes, boqi RF dimming systems support multi-zone control, allowing one remote to manage several receivers or lighting zones simultaneously.

They are available for both constant voltage and constant current LED drivers, suitable for single-color, tunable white (CCT), RGB, and RGBW lighting.

No. Unlike infrared remotes, RF controllers do not require line-of-sight, enabling convenient control through walls or obstacles.

Yes. They provide smooth, 256-level dimming from 0–100%, ensuring flicker-free performance with compatible LED drivers.

Product Category

Application

Why boqi

Contact Us

  • Block 3, Shangshuijing 6 Industrial Park, Jihua Road, Longgang Dist, Shenzhen, 518112, Guangdong, China
  • 86-13662271822
  • zoe@boqiled.com

© 2025 boqi is a Trademark of Shenzhen Boxinqi Technology Co Ltd

Linkedin Facebook Twitter Youtube Instagram
en_USEnglish
fr_FRFrançais it_ITItaliano arالعربية viTiếng Việt id_IDBahasa Indonesia de_DEDeutsch es_ESEspañol da_DKDansk fiSuomi ja日本語 ko_KR한국어 nb_NONorsk bokmål nl_NLNederlands pt_PTPortuguês ru_RUРусский sv_SESvenska thไทย tr_TRTürkçe zh_HK香港中文 en_USEnglish

Ask For A Quick Quote

We will contact you within 1 working day, please pay attention to the email with the suffix “@boqiled.com”.
