ZH RF RGB/RGBW Control System

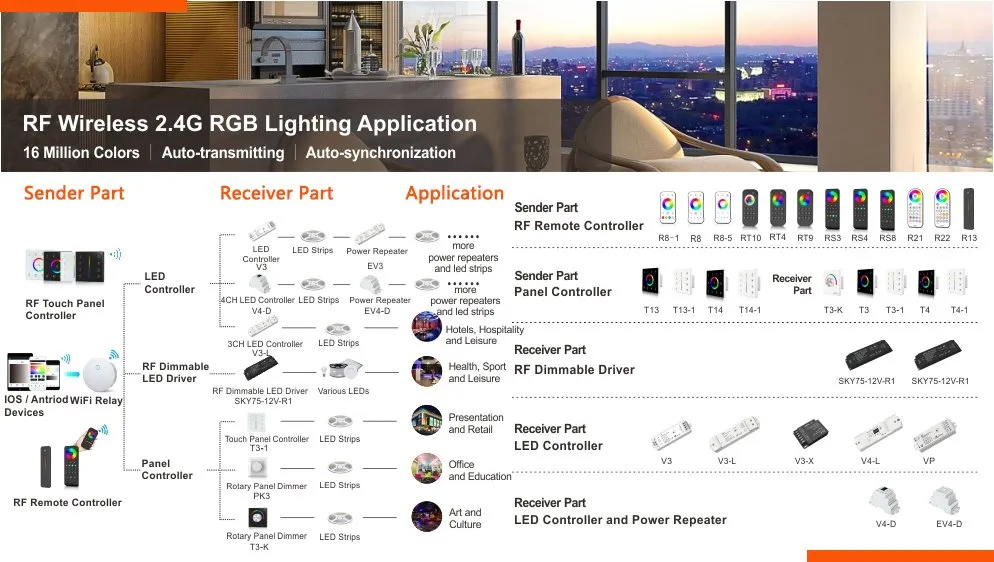

The boqi Wireless RGB Series delivers a complete smart lighting control solution with 3/4/5-channel controllers, remote controls, touch panels, and dimmable LED drivers. Designed for flexibility and precision, this series enables on/off switching, brightness adjustment, static color selection, dynamic lighting effects, scene creation, scheduling, and sensor-based automation — empowering users to create personalized lighting environments effortlessly.
The 3-channel RGB controller is compatible with a wide range of remote types, including handheld, wall-mounted, and desktop options. It supports multiple lighting modes such as dimming, CCT, RGB, RGBW, and RGB+CCT, providing smooth and accurate color transitions.
Powered by advanced 2.4GHz wireless technology, BOQI controllers ensure stable signal transmission up to 30 meters, with cascading functionality allowing extended coverage across hundreds of meters.

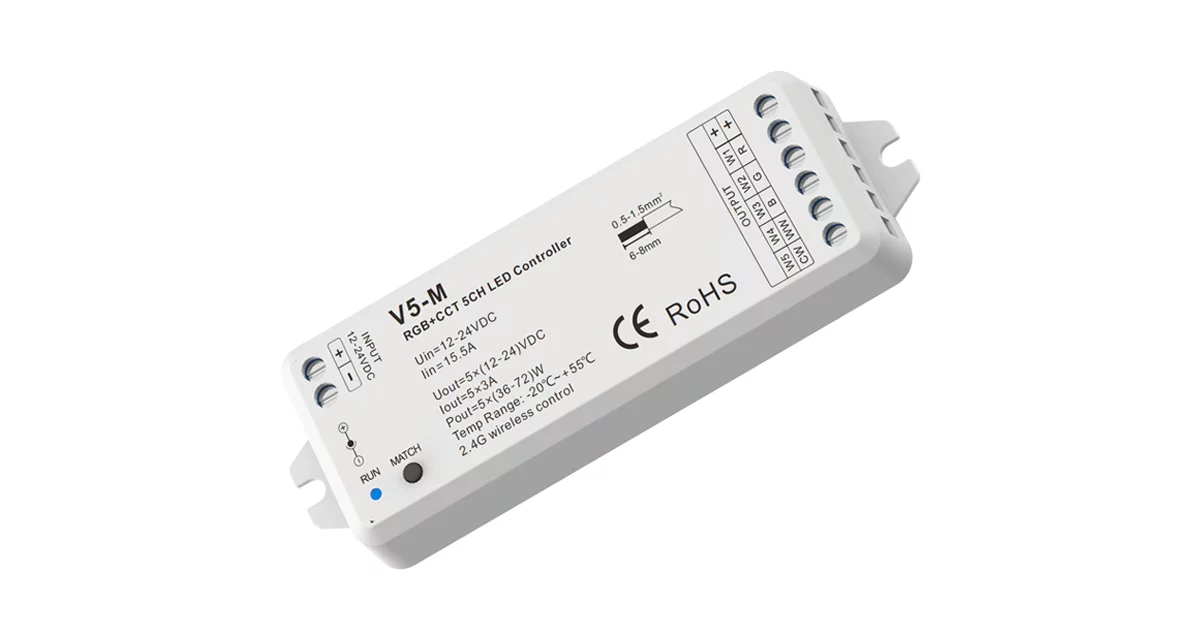

The 4-channel and 5-channel controllers serve as versatile RGB controllers when connected to RGB lighting systems and paired with corresponding RGB remotes. Each controller can be linked to up to 10 remotes, supporting multi-zone operation and flexible group management.
A single remote can manage one or multiple zones, and each zone can connect to an unlimited number of controllers, ensuring synchronized lighting across large installations.
The Wireless RGB Series includes constant voltage and constant current controllers, RGB remotes, RGB wall panels, WiFi-RF converters, 3-channel power repeaters, and dimmable LED drivers, delivering a robust, scalable, and fully synchronized wireless control ecosystem.
RF Constant Voltage Controller (RGB, CCT, Dimming)
- Supports DC12/24/36/48V power with 1/3/4 channel PWM output for diverse electrical neaveds.
- Features 4096-level flicker-less dimming, 256 brightness levels, and precise gray-scale control.
- Wireless 2.4G technology enables a 30-meter remote control range, extendable with cascade function.
- Compatible with 1-10 remotes for segmented lighting control.
- Dimming remote integration allows single-color light control with multi-channel controllers.
- Compatible with remote controls, panels, and WiFi-RF converters for a comprehensive lighting system.
- Offers multiple dimming methods: push switches, touch buttons, knobs, and digital displays.
- Equipped with over-heat, over-load, short circuit, and reverse polarity protection.

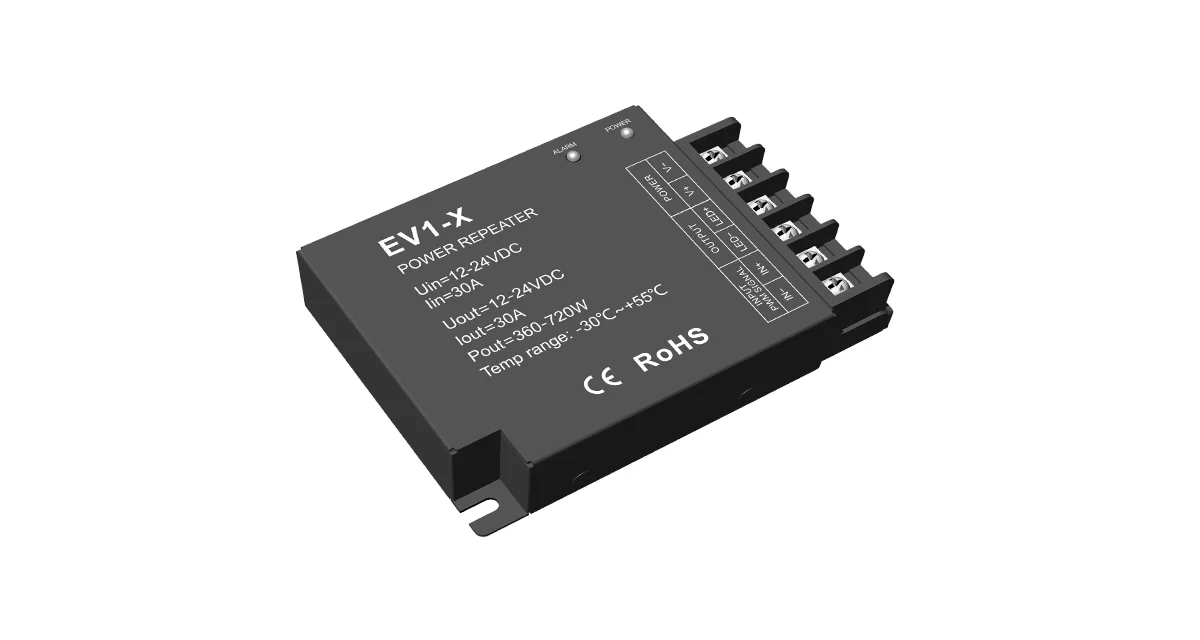

- Expandable output with a power repeater for scalable lighting solutions.
V3
V3-L
V3-X
V3-C
S3
VD3
V3-W
T3
T3-1
T3-K
V3+R8-1
V3+R13
V3+R9
RT4+V3
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|

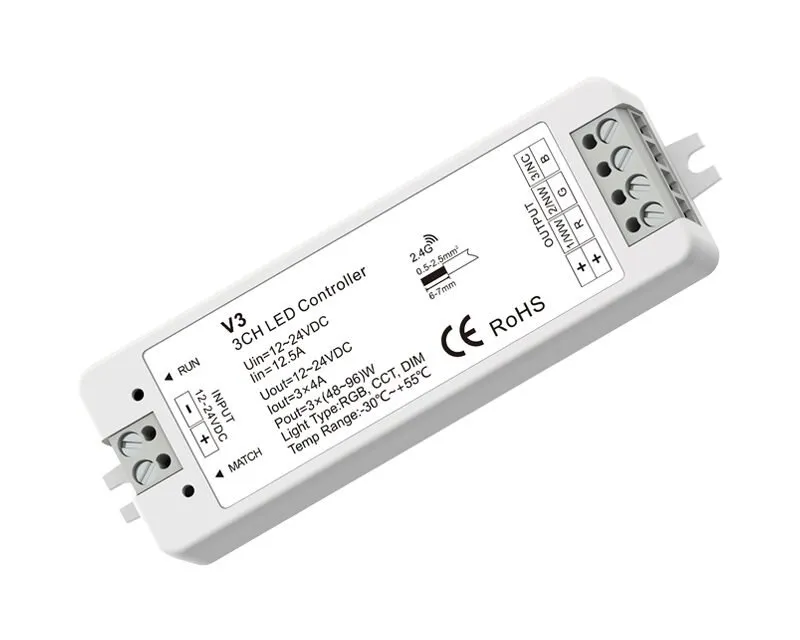

| V3 | 3CH*4A 12-24VDC CV Controller | 📄VIEW |

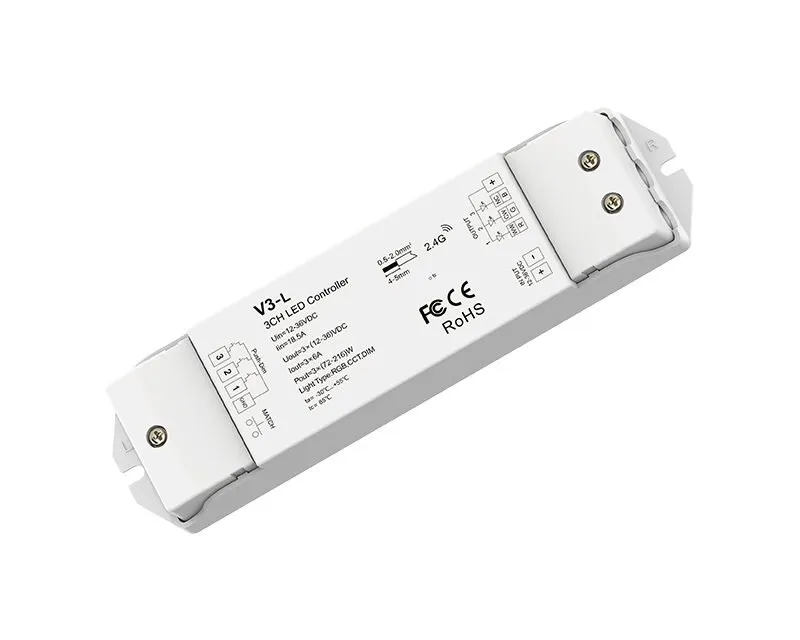

| V3-L | 3CH*6A 12-48VDC CV Controller(Push Dim) | 📄VIEW |

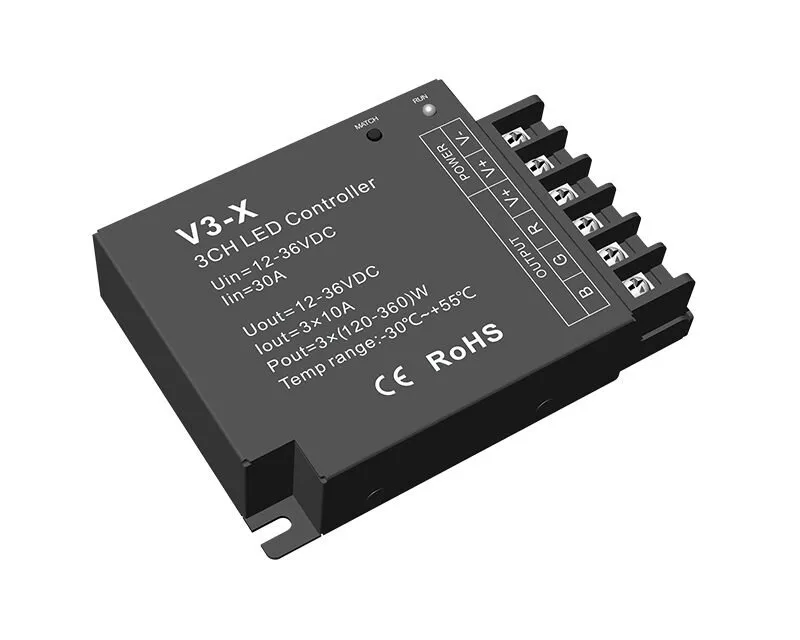

| V3-X | 3CH*10A 12-36VDC CV Controller | 📄VIEW |

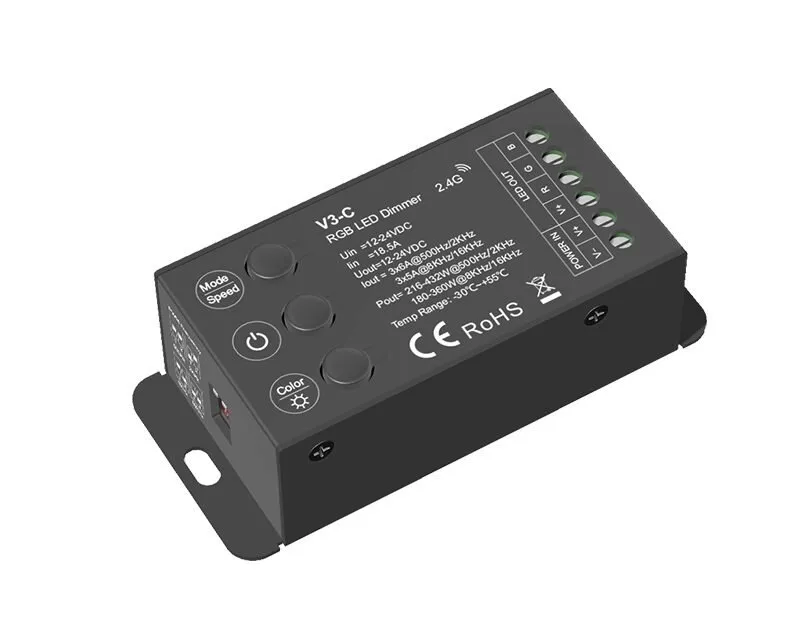

| V3-C | 3CH*6A 12-24VDC CV Controller | 📄VIEW |
| S3 | 3CH*1A 110-240VAC High Voltage LED Strip Controller | 📄VIEW |

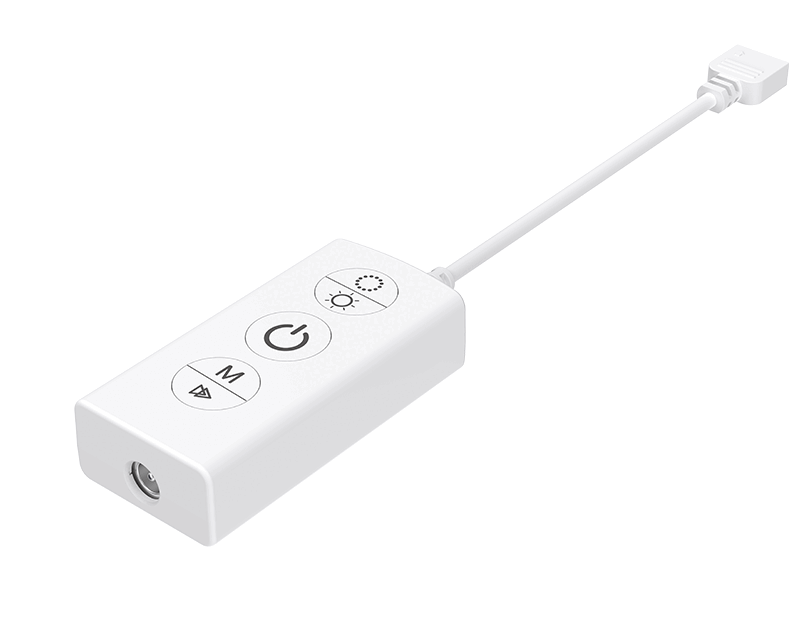

| VD3 | S1-HVa3CH*1.5A 5-24VDC CV Controller | 📄VIEW |
| V3-W | 3CH*1A 12-24VDC RGB LED Mini Controller | 📄VIEW |
| T3 | 3CH*4A 12-24VDC CV RGB Touch Panel Controller | 📄VIEW |

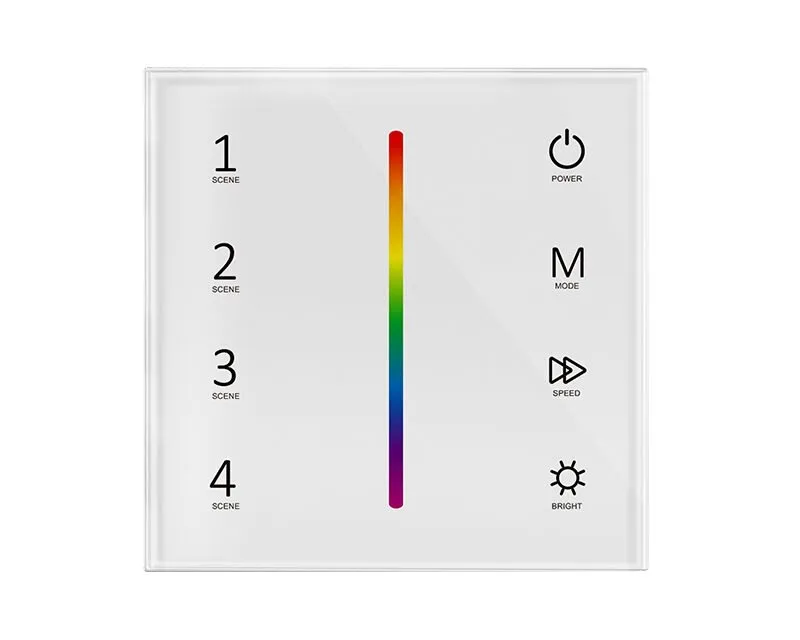

| T3-1 | 3CH*4A 12-24VDC CV RGB Touch Panel Controller | 📄VIEW |

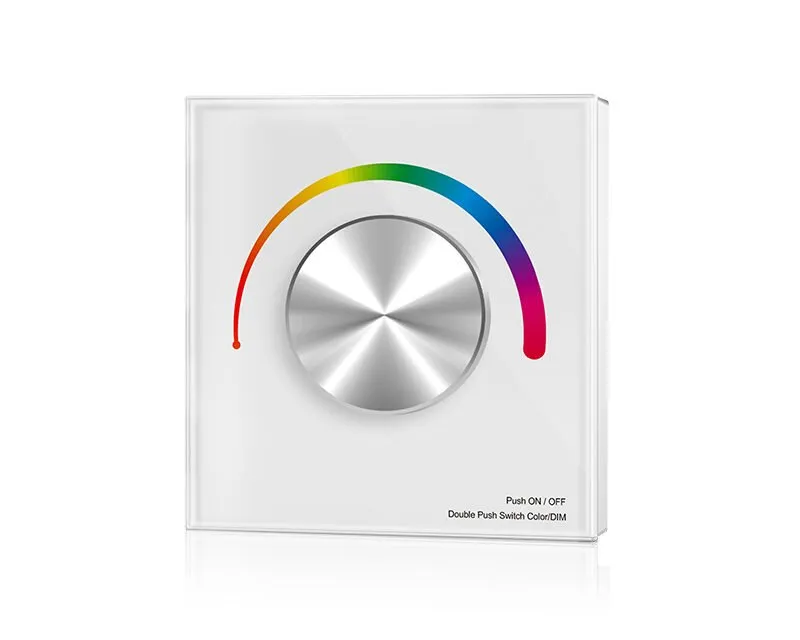

| T3-K | 3CH*4A 12-48VDC CV RGB Controller | 📄VIEW |
| V3+R8-1 | 4A*3CH RGB LED Controller Set | 📄VIEW |

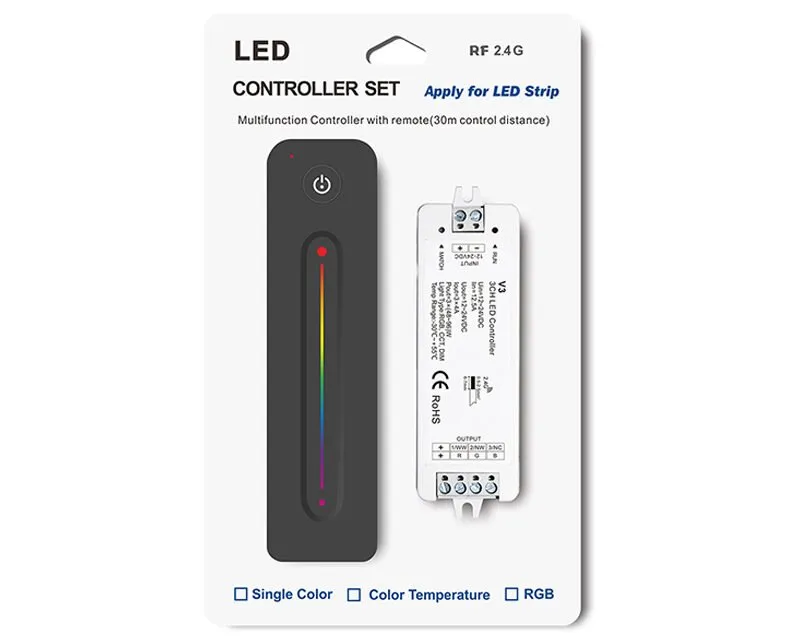

| V3+R13 | 4A*3CH RGB LED Controller Set | 📄VIEW |

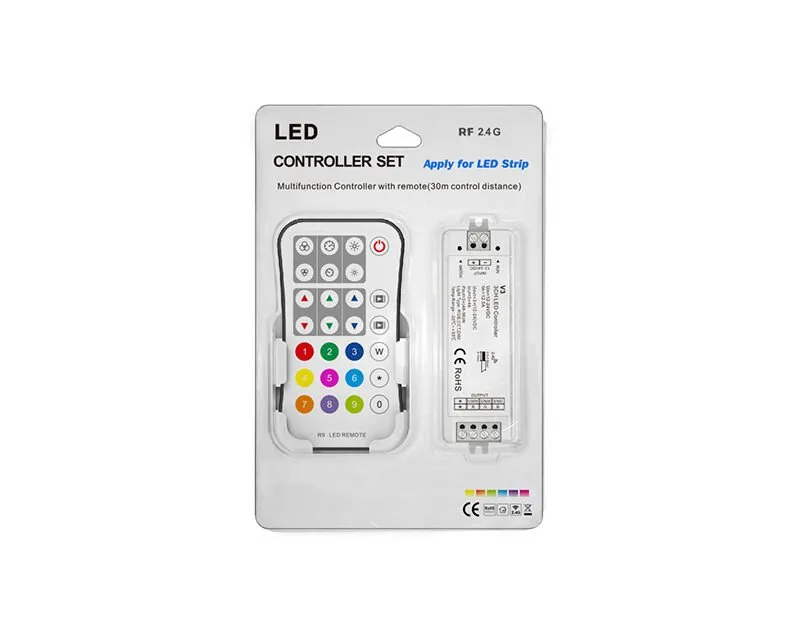

| V3+R9 | 4A*3CH RGB LED Controller Set | 📄VIEW |

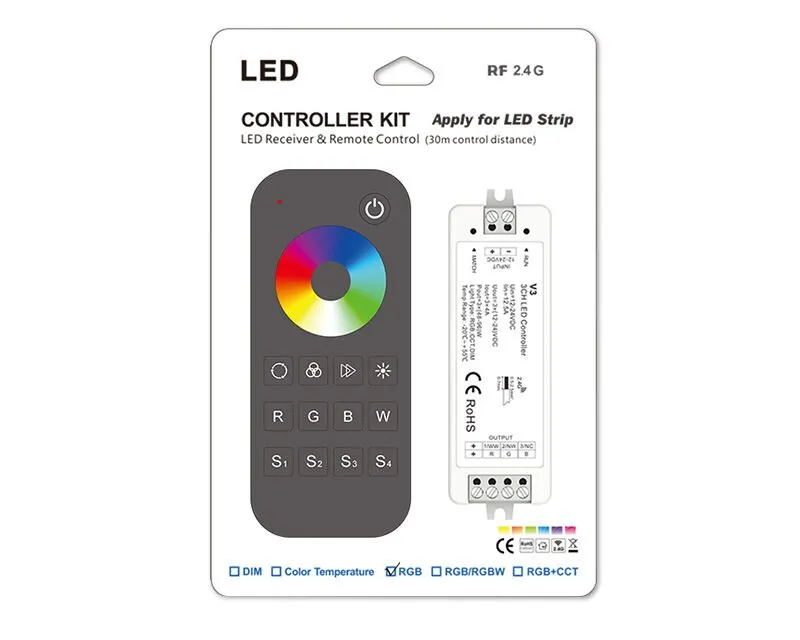

| RT4+V3 | 4A*3CH RGB LED Strip Controller Kit | 📄VIEW |
RF Constant Voltage Controller (RGBW, RGB, CCT, Dimming)
VP
V4
V4-L
V4-X
V4-WPS
V4-K
V4-S
V4-W
T4
T4-1
VP+R8-1
RT4+VP
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|
| VP | 4CH*4A 12-24VDC CV Controller | 📄VIEW |
| V4 | 4CH*5A 12-48VDC CV Controller | 📄VIEW |
| V4-L | 4CH*5A 12-24VDC CV Controller | 📄VIEW |
| V4-X | 4CH*8A/5A 12-48VDC CV Controller | 📄VIEW |
| V4-WPS | 4CH*5A 12-36VDC IP67 Waterproof Controller | 📄VIEW |
| V4-K | 4CH*4A 12-24VDC CV 4 Knob RGB/RGBW Controller | 📄VIEW |
| V4-S | 4CH*3A 12-24VDC RF Controller Wall Box Mounting | 📄VIEW |
| V4-W | 4CH*1A 12-24VDC RGBW LED Mini Controller | 📄VIEW |
| T4 | 4CH*3A 12-24VDC CV RGBW Touch Panel Controller | 📄VIEW |
| T4-1 | 4CH*3A 12-24VDC CV RGBW Touch Panel Controller | 📄VIEW |
| VP+R8-1 | 3A*4CH RGBW LED Controller Set | 📄VIEW |
| RT4+VP | 4A*4CH RGBW LED Strip Controller Kit | 📄VIEW |

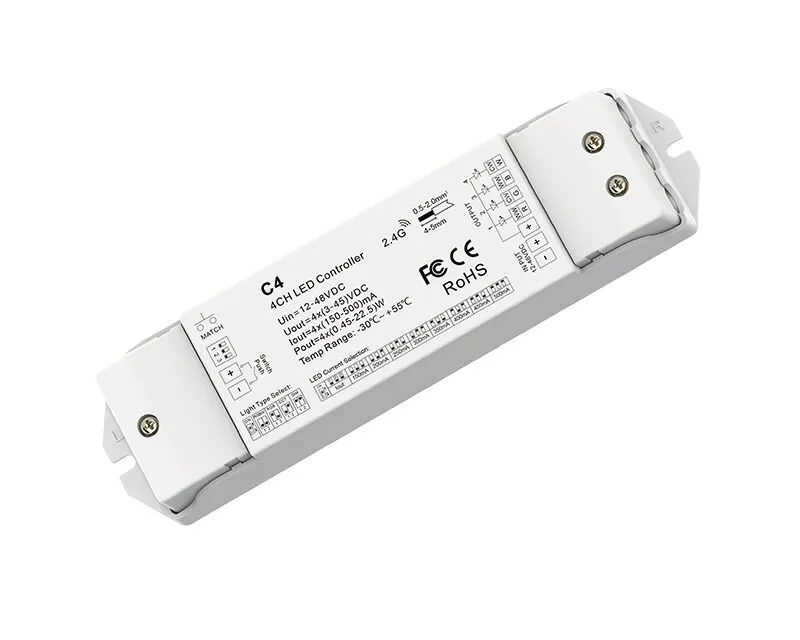

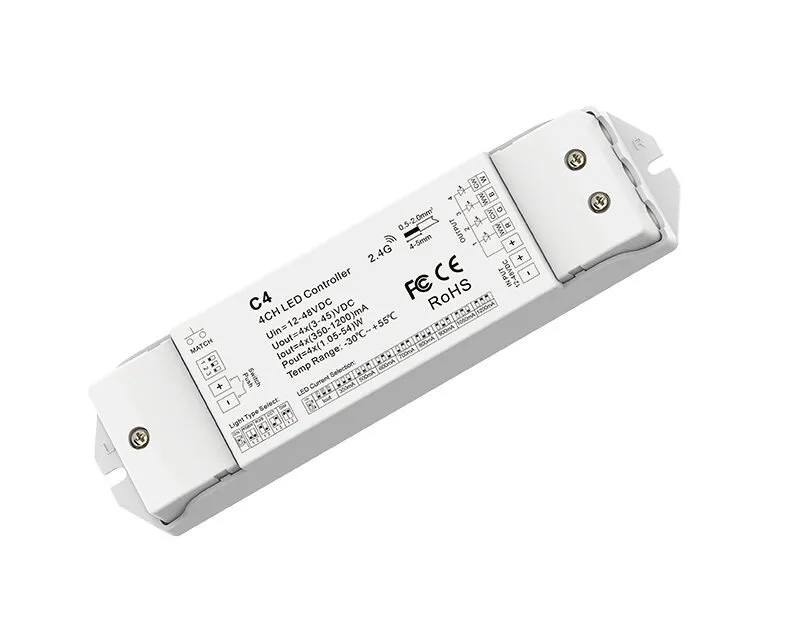

RF Constant Current Controller (RGBW, RGB, CCT, Dimming)
- Configurable as an RGB controller using a DIP switch, this device adapts to various lighting needs.
- It accepts DC12/24/36/48V power input and has 3 channels of PWM constant current output; the fourth channel is unused.
- Offering a standard output of 350/700mA, it can be customized for outputs ranging from 150-1200mA.
- Utilizes PWM for 4096 levels of flicker-free dimming, ensuring smooth lighting transitions.
- Features wireless 2.4G with up to 30 meters of remote control range, extendable through cascading for broader coverage.
- Supports 1-10 remote controls for partitioned lighting management.
- Integrates with remotes, panels, or WiFi-RF converters for a complete lighting control system.
- Includes 10 dynamic modes with jump and gradual change styles for diverse lighting effects.
- Connects to an external push switch for easy on/off and 0-100% dimming.
- Equipped with short circuit and reverse polarity protection for enhanced safety and durability.
RF RGB/RGBW Remote Controller
The hand-held RGB remote control comes in single, 2, 4, and 8 zone variants, powered by either a 7#AAA or button battery, providing a range of options for different lighting needs.
- Ideal for RGB LED lights, this remote allows on/off switching, color adjustment, dynamic changes, and group or scene creation, enabling both static and dynamic lighting effects.
- Featuring wireless 2.4G technology, it controls lights up to 30 meters away, extendable to several hundred meters through cascaded controllers.
- Depending on usage, the remote offers a standby time of six months to two years, ensuring long-term reliability.
- Each remote can pair with an unlimited number of controllers, and each zone within a multi-zone remote can also connect with numerous controllers, offering extensive control.
- Each controller can be paired with up to 10 remotes and integrated into different zones of a remote, allowing flexible lighting management.
R8-1
R8
R9
RT4
RT9
RS9
RS3
RS4
RS8
R13
R14
R15
R16
RM3
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|

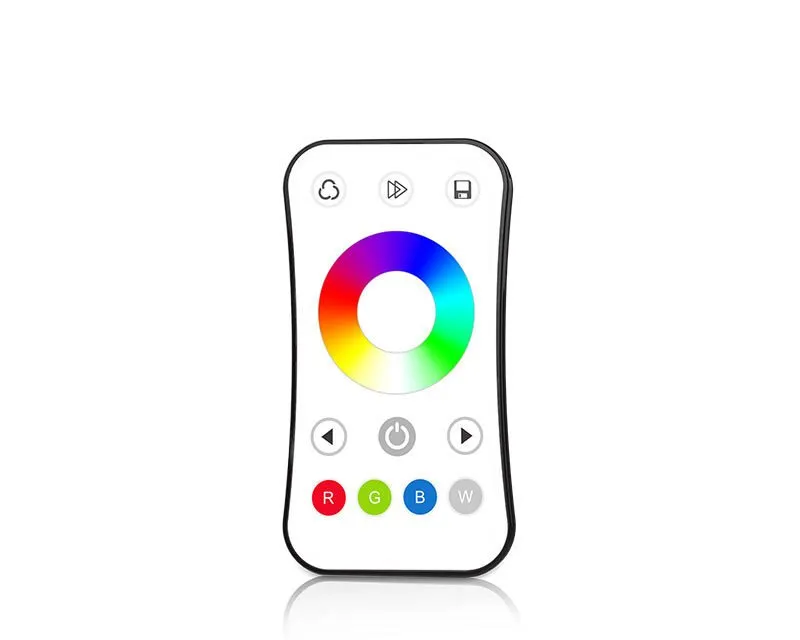

| R8-1 | 1 Zone RGB/RGBW Remote Control | 📄VIEW |

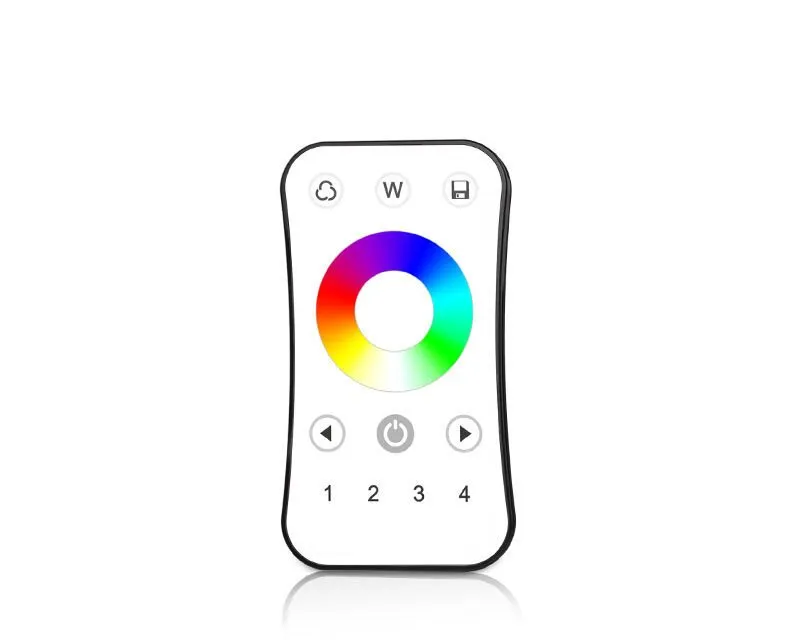

| R8 | 4 Zones RGB/RGBW Remote Control | 📄VIEW |

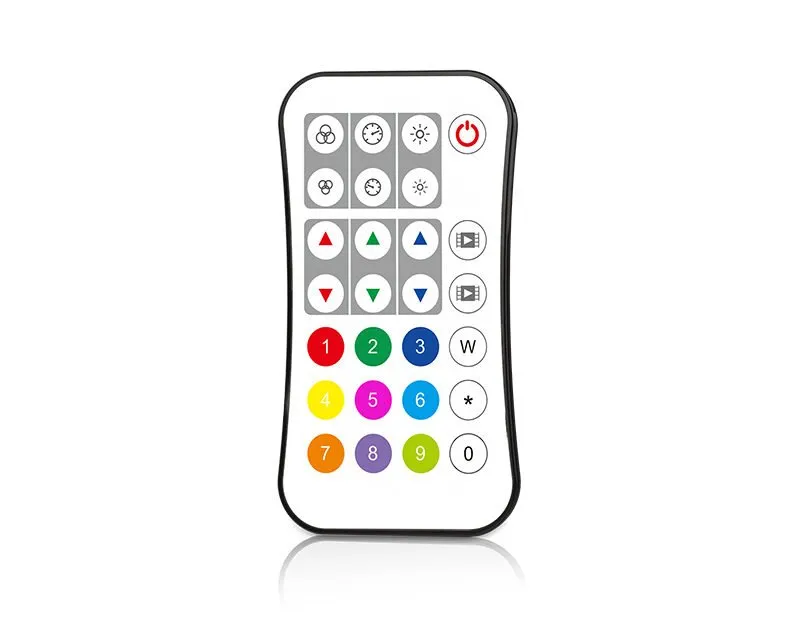

| R9 | 1 Zone RGB/RGBW Remote Control | 📄VIEW |
| RT4 | 1 Zone RGB/RGBW Remote Control | 📄VIEW |

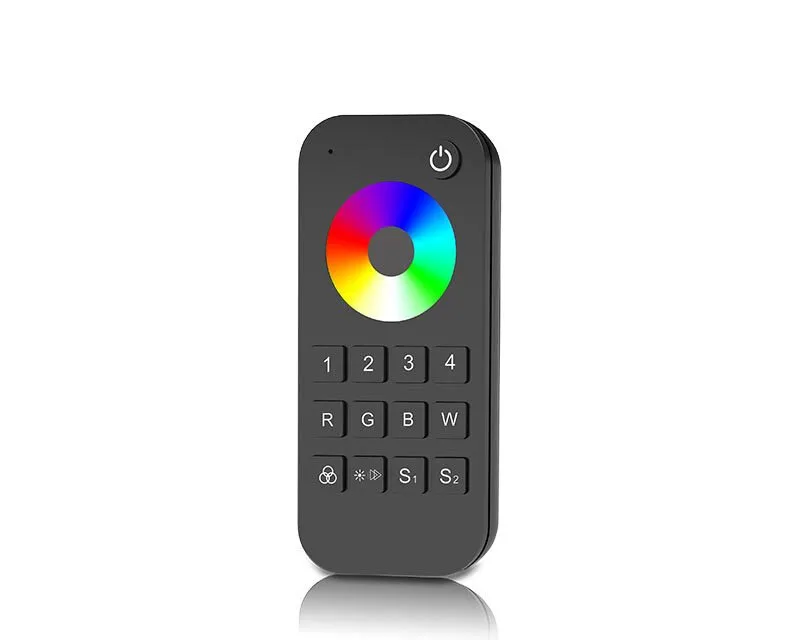

| RT9 | 4 Zones RGB/RGBW Remote Control | 📄VIEW |
| RS9 | 1 Zone RGB/RGBW Remote Control | 📄VIEW |

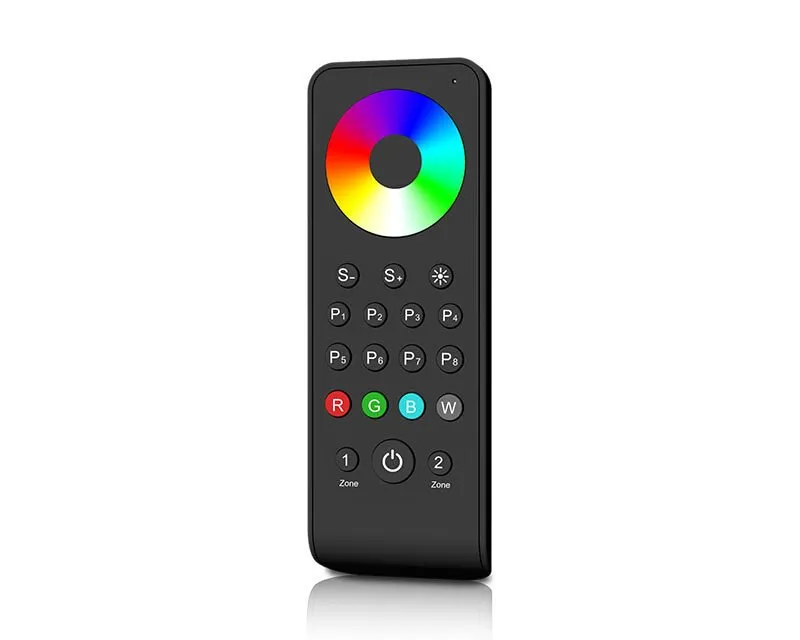

| RS3 | 2 Zones RGB/RGBW Remote Control | 📄VIEW |
| RS4 | 4 Zones RGB/RGBW Remote Control | 📄VIEW |
| RS8 | 8 Zones RGB/RGBW Remote Control | 📄VIEW |

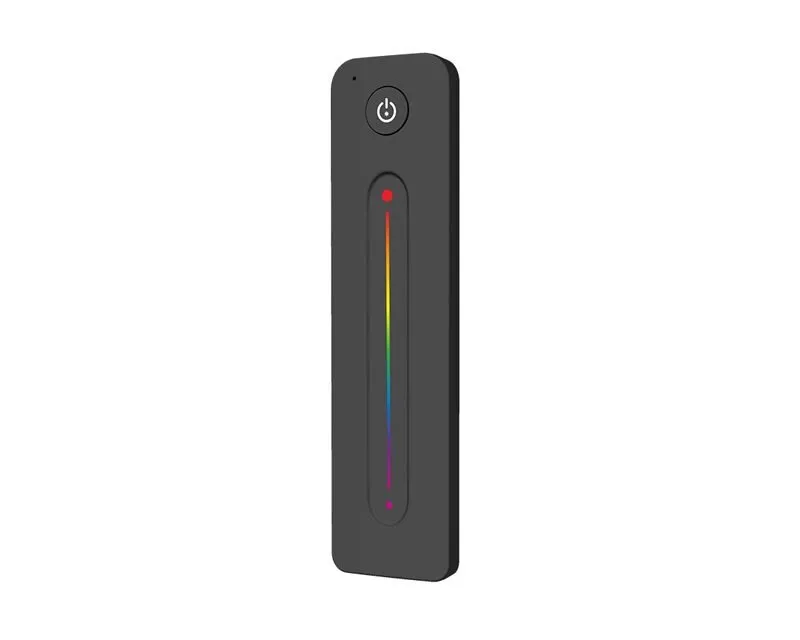

| R13 | 1 Zone RGB Remote Control | 📄VIEW |
| R14 | 1 Zone RGBW Remote Control | 📄VIEW |

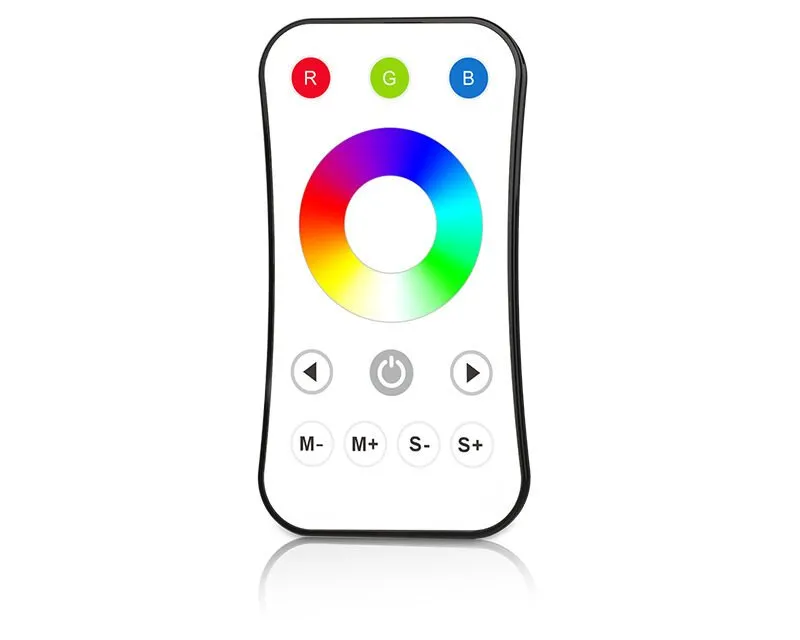

| R15 | 1 Zone RGB Remote Control | 📄VIEW |

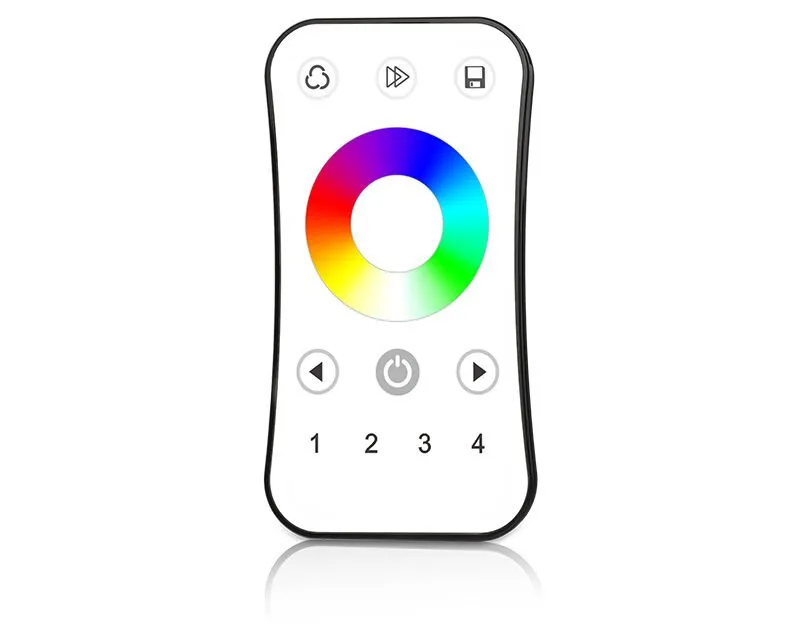

| R16 | 4 Zones RGB Remote Control | 📄VIEW |

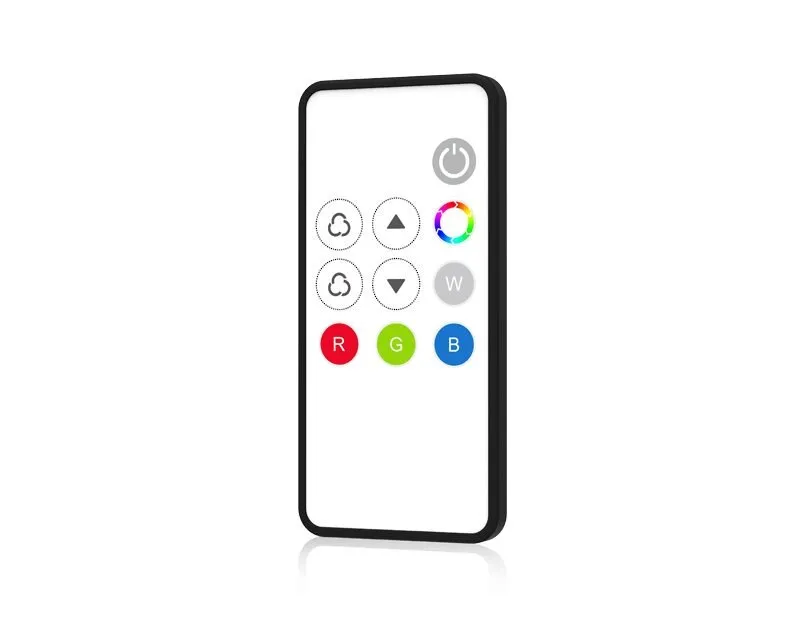

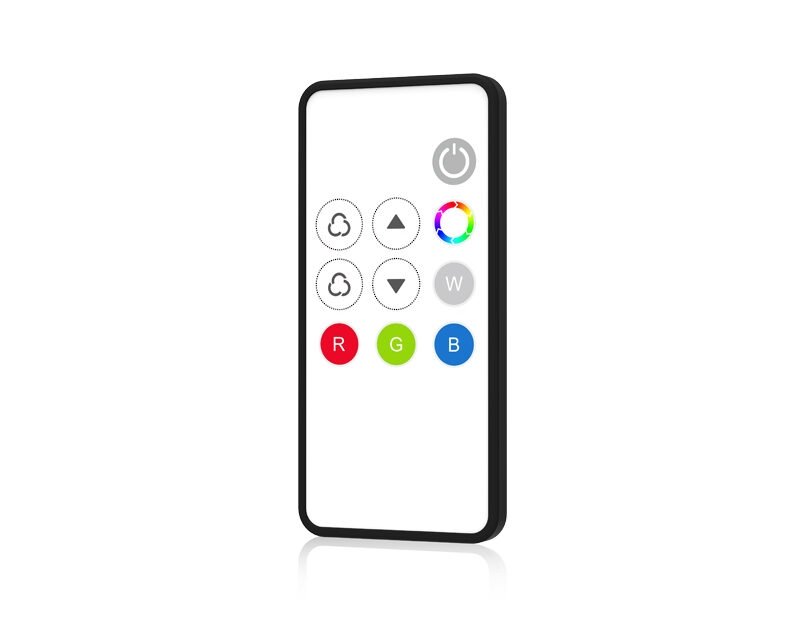

| RM3 | 1 Zone RGB Remote Control | 📄VIEW |
RF RGB/RGBW Panel Remote Controller
The RGB panel remote control, available in single and 4 zone models, includes button, knob, and touch glass panels (white & black). It supports high voltage AC100-240V, low voltage DC12-24V, and is powered by either a 7#AAA or button battery, offering diverse options for various needs.
- Designed for RGB LED lights, this remote enables on/off switching, color adjustment, dynamic transitions, group segmentation, and scene creation for vibrant lighting effects.
- With wireless 2.4G technology, it controls up to 30 meters, extendable to several hundred meters through cascading controller connections.
- The panel remote’s battery life ranges from six months to two years, based on usage, ensuring reliable performance.
- Each remote can pair with an unlimited number of controllers, and each zone in a multi-zone remote can connect with multiple controllers, providing extensive control.
- Controllers are compatible with 1-10 remote controls and can be integrated across different remote zones, offering flexible lighting management.
- All RGB panel controllers, including constant voltage and DMX512 masters, function as both remote controls for other RF controllers and as RF controllers to receive signals from other remotes.
T13
T14
T14-1
T24
TW4
TW4-4
RK3
T14(IT)
| MODEL | DESCRIPTION | DATASHEET |
|---|---|---|

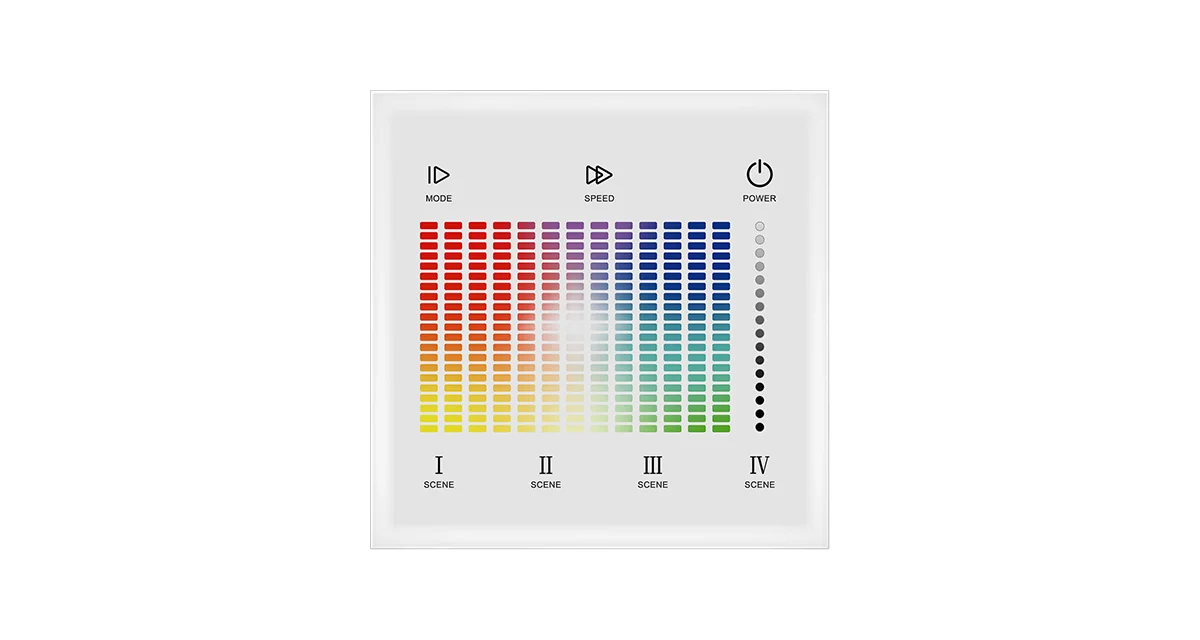

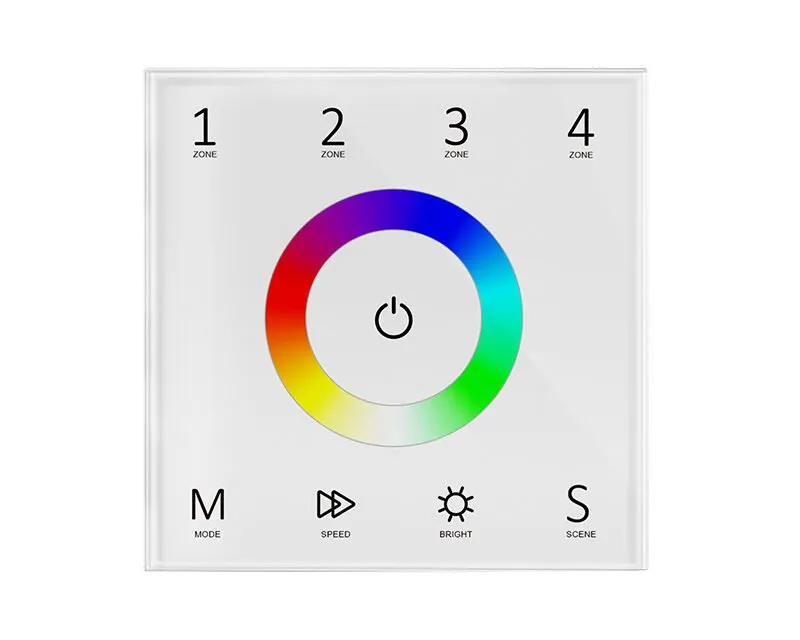

| T13 | 4 Zones RGB Remote Control(100-240VAC Input) | 📄VIEW |

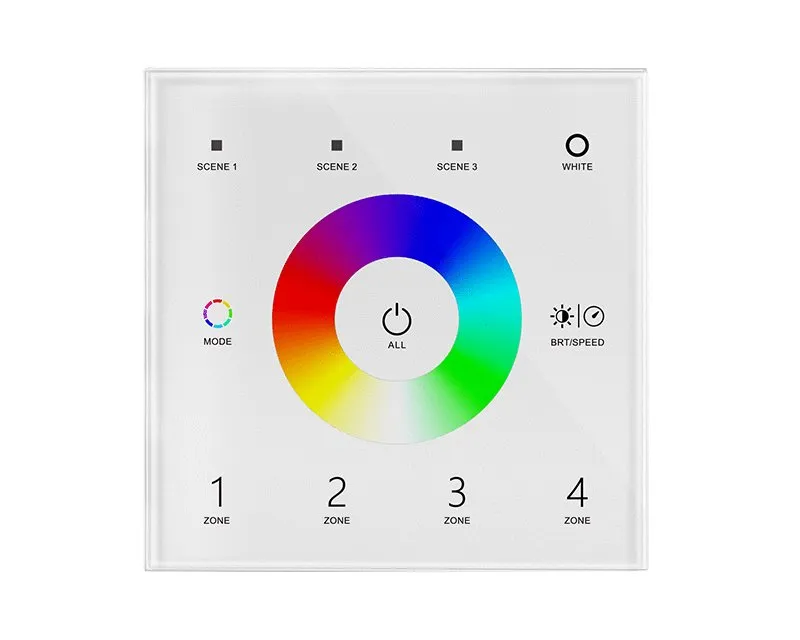

| T14 | 4 Zones RGBW Remote Control(100-240VAC Input) | 📄VIEW |

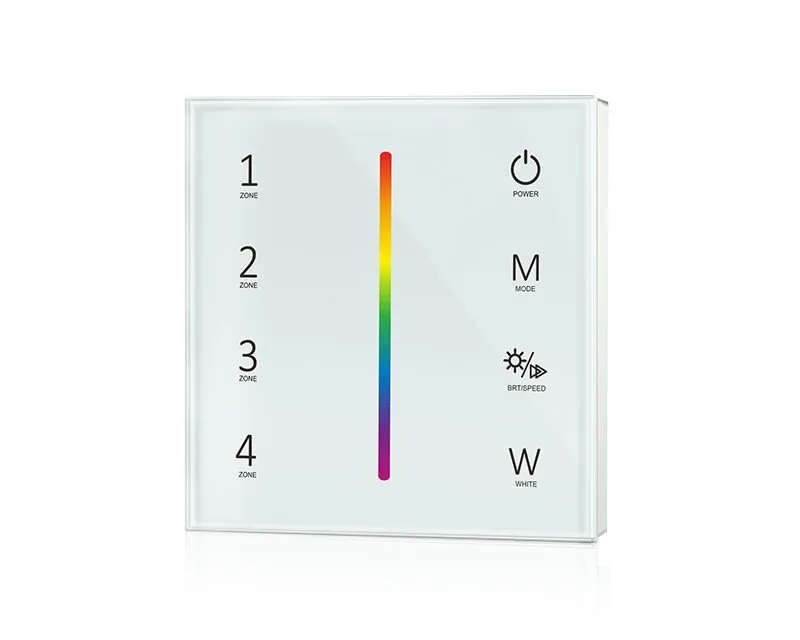

| T14-1 | 4 Zones RGBW Remote Control(100-240VAC Input) | 📄VIEW |
| T24 | 4 Zones RGBW Remote Control(2*AAA Battery) | 📄VIEW |

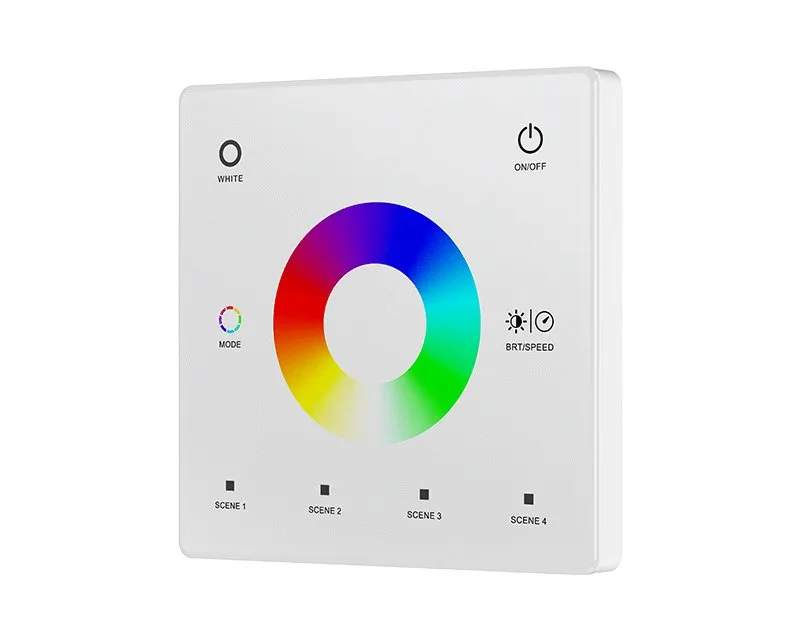

| TW4 | 1 Zone RGB/RGBW Touch Panel Remote Control(CR2032 Battery) | 📄VIEW |

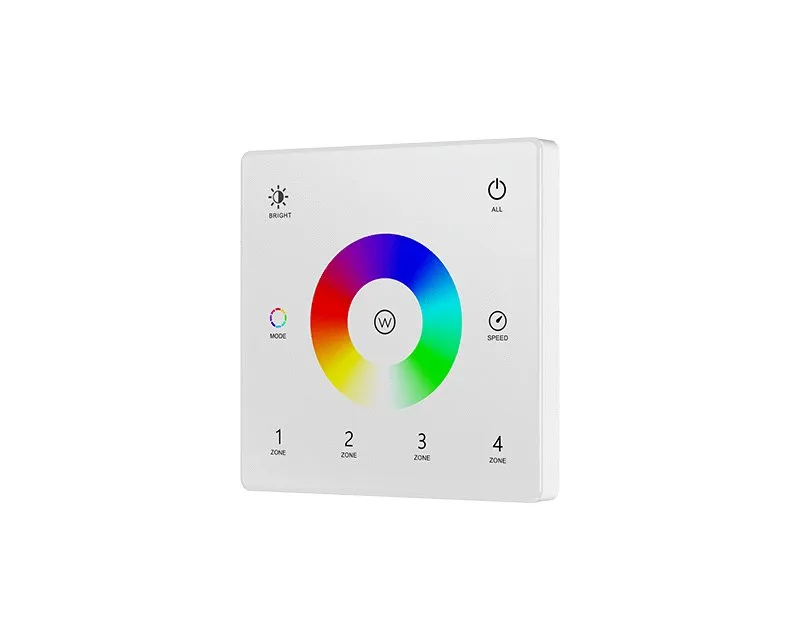

| TW4-4 | 4 Zone RGB/RGBW Wall Mounted Touch wheel Panel Remote Control(CR2032 Battery) | 📄VIEW |
| RK3 | Desk Mount RGB Remote Control(CR2032 Battery) | 📄VIEW |

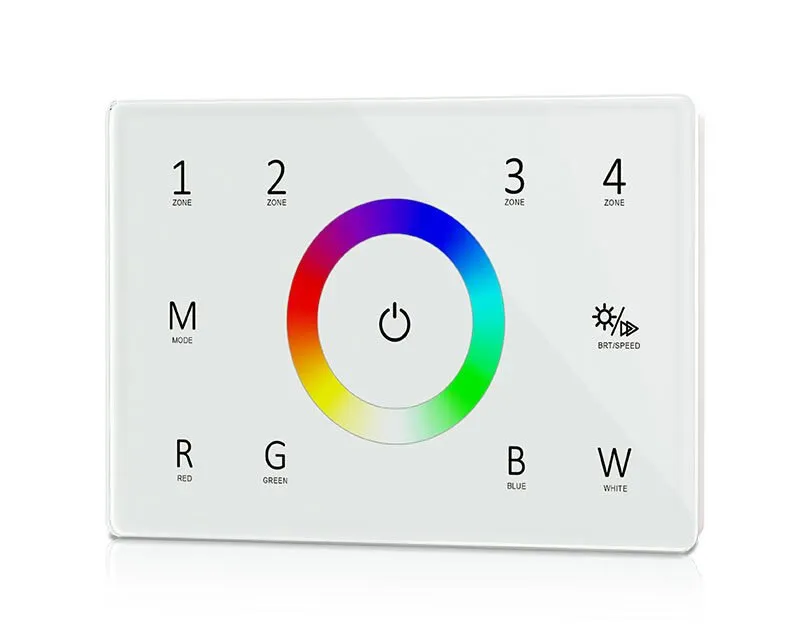

| T14(IT) | 4 Zones RGBW Remote Control(100-240VAC Input) | 📄VIEW |
Download Full Catalog to View More Products
Access our latest catalog to gain comprehensive insights into our extensive range of products, encompassing their features, benefits, specifications, functions, and warranties, among other pertinent details. Opt for the paperless version to save money and protect the environment.
How to choose right RF RGB or RGBW Control System?
Choosing the right RF RGB or RGBW control system depends on your lighting setup, desired functions, and installation environment. boqi’s RF control systems offer flexibility, stability, and ease of use for both residential and commercial projects.
First, determine the lighting type — whether you are using RGB (three-color) or RGBW (four-color) LED strips. RGB systems provide dynamic color effects, while RGBW adds a dedicated white channel for softer, more natural illumination.
Next, consider the control method. BOQI offers handheld remotes, wall-mounted panels, and multi-zone controllers using 2.4GHz RF technology, ensuring stable communication up to 30 meters without wiring. For extended installations, the signal cascading feature allows seamless communication between multiple controllers, extending the control range to several hundred meters.
Choose between single-zone or multi-zone systems depending on whether you need to control all lights together or manage separate areas independently.
Finally, check compatibility with constant voltage or constant current controllers based on your LED driver type. BOQI’s RF RGB/RGBW systems support scene setting, color selection, brightness adjustment, and synchronization, providing a reliable and intelligent lighting experience.
By matching the right controller, remote, and driver, users can build a fully synchronized, flexible, and visually stunning RF lighting control system.
