Types of LED Dimmers

Before diving into the wiring process, it’s important to understand the types of LED dimmers available:

1. Phase-Cut Dimmers: Suitable for residential applications, these are the most common types of dimmers.
2. Leading Edge and Trailing Edge TRIAC Dimmers: Suitable for LED dimmable lighting or traditional lighting, these are the highly compatible types of dimmers.
3. 0-10V Dimmers: Commonly used in commercial and industrial settings, these offer precise control.
4. DALI dimmers: They are usually the panel, and are controlled by DALI master, suitable for intelligent systems and Human-Centric lighting.
5. Smart Dimmers: These are Wi-Fi or Bluetooth-enabled dimmers that can be controlled via smartphones or voice commands.

Common Dimmer Wiring Work

Components Prepared

• LED Light Fixture or Bulb
• LED-Compatible Dimmer Switch
• Electrical Wire (typically 14 or 12-gauge)
• Wire Nuts or Connectors
• Screwdriver
• Wire Stripper
• Voltage Tester
• Optional: Junction Box

Safety Precautions

• Always turn off the power at the circuit breaker before beginning any electrical work.
• Use a voltage tester to ensure that the power is off.
• Follow local electrical codes and regulations.
• If you’re unsure about any step, consult a qualified electrician.

Diagram

  +----------------+      +-------------------+
  |                |      |                   |
  |  LED Dimmer    |------|   LED Driver      |
  |                |      |                   |
  +----------------+      +-------------------+
                             |
                             |
                             |
                     +----------------+
                     |                |
                     |   LED Light    |
                     |                |
                     +----------------+

Brief Common Step-by-Step Guide

Step 1: Turn Off the Power

Turn off the power at the circuit breaker and use a voltage tester to confirm that the power is off.

Step 2: Prepare the Wires

Use a wire stripper to strip about half an inch of insulation off the ends of the electrical wires that will be connected.

Step 3: Identify the Wires

Typically, you’ll have the following wires:

• Brown / Black: Hot wire
• Blue / White: Neutral wire
• Green / Yellow or Bare Copper: Ground wire

Step 4: Connect the Dimmer

1. Ground Wire: Connect the ground wire from the dimmer to the ground wire in the electrical box using a wire nut.
2. Neutral Wire: If the dimmer has a neutral wire (usually white), connect it to the neutral wire in the electrical box.
3. Hot Wire: Connect the black wire from the dimmer to the black (hot) wire in the electrical box.

Step 5: Connect the LED Light

1. Connect the other end of the black (hot) wire to the LED light’s black wire.
2. Connect the other end of the white (neutral) wire to the LED light’s white wire.
3. Connect the other end of the ground wire to the LED light’s ground wire.

Step 6: Secure All Connections

Use wire nuts or appropriate connectors to secure all connections. Make sure no bare wire is exposed.

Step 7: Test

Turn the power back on at the circuit breaker and test the dimmer to ensure it’s working as expected.

Detailed Guides for 5 kinds of Dimmers

Phase-Cut Dimmers

Wiring a phase-cut dimmer can be a complex task that involves working with high-voltage electrical circuits. Incorrect wiring can result in electrical shock, fire, or damage to the dimmer and other electrical components. If you’re not experienced with electrical work, it’s strongly recommended that you consult with or hire a qualified electrician to perform the installation.

That said, if you are comfortable with electrical work and have taken all necessary safety precautions, here is a general guide on how to wire a phase-cut dimmer:

Tools and Materials Needed

• Screwdrivers
• Wire strippers
• Electrical tape
• Wire nuts
• Multimeter
• Phase-cut dimmer switch
• Appropriate electrical box and cover plate

Safety Precautions

• Turn off the power to the circuit you’ll be working on at the circuit breaker.
• Use a multimeter to confirm that the power is off.
• Wear appropriate safety gear, including gloves and eye protection.

Steps

1. Identify Wires: Open the electrical box and identify the wires. You should see a black (hot) wire, a white (neutral) wire, and possibly a green or bare copper (ground) wire.
2. Prepare the Dimmer: Unpack the phase-cut dimmer and read the manufacturer’s instructions carefully. Identify the wires or terminals on the dimmer. Typically, you’ll see similar colors: black (or red) for the hot wire, white for the neutral, and green for ground.
3. Disconnect Old Switch: If you’re replacing an old switch, disconnect it by unscrewing the wire nuts and separating the wires.
4. Connect the Dimmer with the lighting fixture(Dimmable led driver): ① Connect Dimmer #4 port’s wire of  LED driver’s INPUT -L port. ② Connect the output terminals of LED driver (LED+/LED-) to the input terminals of the light fixtures ③ Connect the dimmer’s L2 to electricity L line, and LED driver’s N to electricity N Line. (line with AC marked in the diagram)
5. Connect the Neutral Wire: If the dimmer requires a neutral connection, connect the white wire from the electrical box to the white wire or terminal on the dimmer. Use a wire nut to secure the connection.
6. Connect the Hot Wire: Connect the black (hot) wire from the electrical box to the black (or red) wire or terminal on the dimmer. Use a wire nut to secure the connection.
7. Tuck and Secure: Carefully tuck the wires back into the electrical box, making sure that all wire nuts are secure.
8. Attach the Dimmer: Screw the dimmer into the electrical box, following the manufacturer’s instructions.
9. Install Cover Plate: Attach the cover plate over the dimmer.
10. Test: Turn the power back on at the circuit breaker and test the dimmer to make sure it’s working as expected.

Remember, this is a general guide. Always follow the manufacturer’s instructions and local electrical codes. If you’re unsure about any step, consult a qualified electrician.

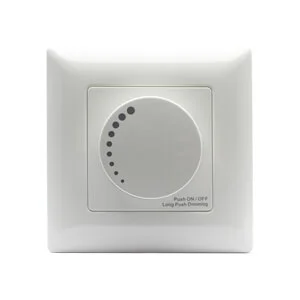

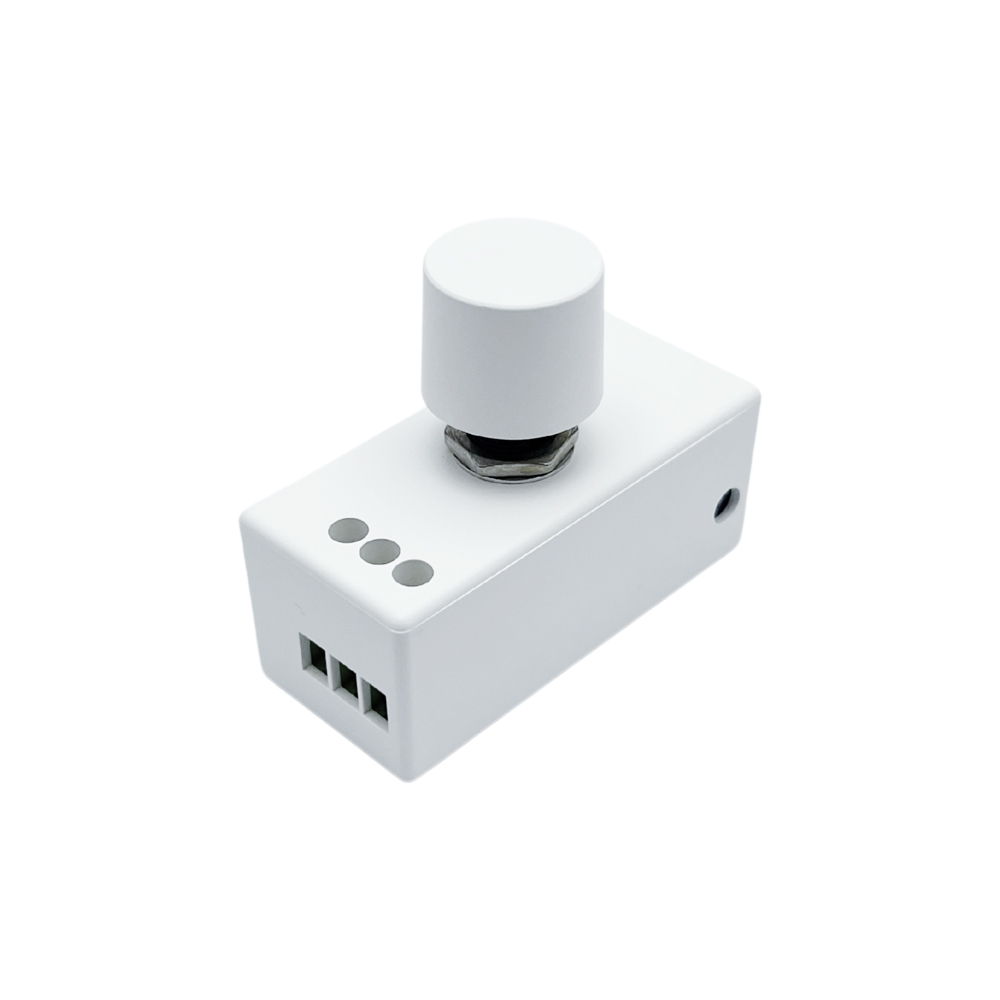

Leading Edge and Trailing Edge TRIAC Dimmers

Leading-edge and trailing-edge dimmers are types of phase-cut dimmers used to control the brightness of lights. Leading-edge dimmers cut off the beginning phase of each AC cycle, while trailing-edge dimmers cut off the end phase. These dimmers are commonly used with incandescent, halogen, and some types of LED and CFL lights.

Note: Working with electrical circuits can be dangerous. If you’re not experienced, it’s strongly recommended to consult or hire a qualified electrician. Incorrect wiring can result in electrical shock, fire, or damage to the dimmer and other electrical components.

Tools and Materials Needed

• Screwdrivers
• Wire strippers
• Electrical tape
• Wire nuts
• Multimeter
• Leading-edge or trailing-edge dimmer switch
• Electrical box and cover plate
• Safety gear (gloves, eye protection)

Safety Precautions

• Turn off the power to the circuit you’ll be working on at the circuit breaker.
• Use a multimeter to confirm that the power is off.
• Wear appropriate safety gear, including gloves and eye protection.

General Wiring Steps

1. Identify Wires: Open the electrical box and identify the wires. Typically, you’ll see a black (hot) wire, a white (neutral) wire, and possibly a green or bare copper (ground) wire.
2. Prepare the Dimmer: Unpack the dimmer and read the manufacturer’s instructions carefully. Identify the wires or terminals on the dimmer. You’ll usually see similar colors: black (or red) for the hot wire, white for the neutral, and green for ground.
3. Disconnect Old Switch: If you’re replacing an old switch, disconnect it by unscrewing the wire nuts and separating the wires.
4. Connect the Dimmer with the lighting fixture(Dimmable led driver): ① Connect Dimmer OUTPUT (AC100-240V) wires of  LED driver’s AC input (N, L). ② Connect the output terminals of LED driver (LED+/LED-) to the input terminals of the light fixtures. ③ Connect the dimmer INPUT (AC100-240V) to electricity (line with AC marked in the diagram)
5. Connect the Neutral Wire: If the dimmer requires a neutral connection, connect the white wire from the electrical box to the white wire or terminal on the dimmer. Use a wire nut to secure the connection.
6. Connect the Hot Wire: Connect the black (hot) wire from the electrical box to the black (or red) wire or terminal on the dimmer. Use a wire nut to secure the connection.
7. Tuck and Secure: Carefully tuck the wires back into the electrical box, making sure that all wire nuts are secure.
8. Attach the Dimmer: Screw the dimmer into the electrical box, following the manufacturer’s instructions.
9. Install Cover Plate: Attach the cover plate over the dimmer.
10. Test: Turn the power back on at the circuit breaker and test the dimmer to make sure it’s working as expected.

Additional Considerations

• Compatibility: Make sure the dimmer is compatible with the type of lights you are using (e.g., LED, incandescent, halogen).
• Load Requirements: Check the load requirements of the dimmer and ensure it matches with the total wattage of the lights you are controlling.
• Multi-way Switching: If you’re installing a dimmer in a multi-way switching arrangement (e.g., 3-way switch), make sure to get a dimmer that supports this and follow the specific wiring instructions for multi-way setups.

Always follow the manufacturer’s instructions and local electrical codes. If you’re unsure about any step, consult a qualified electrician.

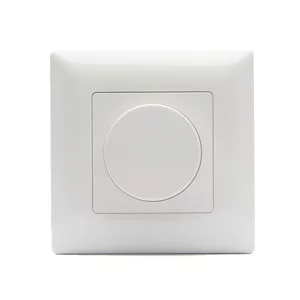

0-10V dimmer

The 0-10V dimming control method is a standard in lighting control applications, particularly for commercial and industrial settings. This system uses a low-voltage signal to control the dimming level of the light fixture. The voltage signal can range from 0V (light off) to 10V (full brightness), with varying levels of brightness in between.

Basic Components:

• Light Fixture with 0-10V dimming capability
• 0-10V Dimmer or Controller
• Low-voltage control wires (typically 18-22 AWG)
• Power supply (as required by the light fixture)
• Optional: Automation system or Building Management System (BMS)

Wiring Steps:

1. LED Drivers: Ensure that the light fixture and the 0-10V dimmer are properly connected to their respective power supplies, following all safety guidelines and local electrical codes.
2. Control Wires: Two additional wires are used for the 0-10V control signal. One wire is for the positive control signal (+) and the other is for the control signal ground (-).
3. Connection to Light Fixture: Connect the control wires to the appropriate terminals on the light fixture, often labeled as “DIM+” and “DIM-” or similar.
4. Connection to Dimmer: Connect the other ends of the control wires to the corresponding terminals on the 0-10V dimmer or controller.
5. Polarity: Make sure to maintain the correct polarity when connecting the control wires. The positive wire should connect to the “DIM+” terminals on both the fixture and the dimmer, and the negative wire should connect to the “DIM-” terminals.
6. Optional Automation: If you are integrating the 0-10V dimming system into a larger automation or BMS, ensure that the control wires are properly connected to the system’s interface.
7. Testing: Once all connections are made, power up the system and test the dimming functionality to ensure that it is working as expected.

Safety Precautions:

• Always turn off the power before working on any electrical wiring.
• Use wire nuts or appropriate connectors to secure all connections.
• Follow all local electrical codes and regulations.
• If you are unsure about any step, consult a qualified electrician.

The 0-10V dimming system is known for its reliability and is widely used in applications requiring precise control of light levels, such as commercial buildings, industrial settings, and increasingly in smart homes with advanced lighting control systems.

DALI dimmer

Digital Addressable Lighting Interface (DALI) is a protocol for the control of lighting in buildings and is known for its simplicity and robustness. DALI dimmers are used to control DALI-compatible lighting fixtures. Unlike traditional dimmers, DALI dimmers communicate with lighting fixtures digitally, allowing for more precise control and additional features like grouping and scene setting.

Safety Precautions

• Always turn off the power to the circuit you’ll be working on at the circuit breaker.
• Use a multimeter to confirm that the power is off.
• Wear appropriate safety gear, including gloves and eye protection.
• If you’re not experienced with electrical work, consult or hire a qualified electrician.

Tools and Materials Needed

• Screwdrivers
• Wire strippers
• Electrical tape or heat-shrink tubing
• Wire nuts or appropriate connectors
• Multimeter
• DALI dimmer
• DALI-compatible lighting fixtures
• DALI control cables (usually 2-wire, polarity-free)

General Steps for Wiring DALI Dimmers

1. Read the Manuals: Before starting, read the installation manuals for both the DALI dimmer and the DALI-compatible lighting fixtures to understand the specific requirements and features.
2. Plan the Network: DALI networks are usually wired in a daisy-chain topology, although star and tree topologies are also possible. Plan your network layout accordingly.
3. Turn Off Power: Make sure to turn off all power to the circuits you’ll be working on.
4. Wire Power to the Dimmer: Connect the power supply wires to the DALI dimmer according to the manufacturer’s instructions. This usually involves connecting a live (hot), neutral, and possibly a ground wire.
5. Connect DALI Lines: DALI uses a separate 2-wire control line for communication. Connect the DALI control wires from the dimmer to the DALI-compatible lighting fixtures. DALI is generally polarity-free, meaning you don’t have to worry about connecting the wires backward.
6. Daisy-Chain or Star Configuration: Depending on your layout plan, connect the DALI control wires to each fixture in a daisy-chain or star configuration. If you’re using a daisy-chain, the DALI lines will go from the dimmer to the first fixture, then from the first fixture to the second, and so on.
7. Addressing: Some DALI systems require you to set addresses for each lighting fixture. This can usually be done using a separate DALI controller or software provided by the manufacturer.
8. Test the Connections: Before restoring power, double-check all your connections to make sure they are secure.
9. Restore Power and Test: Turn the power back on and test the system to make sure that the dimmer can control the lighting fixtures as expected.
10. Configure Scenes or Groups: If your DALI system supports advanced features like scene setting or grouping fixtures, you can configure these settings according to the manufacturer’s instructions.

Remember, DALI systems can vary significantly in their features and requirements, so always refer to the manufacturer’s documentation for the most accurate and detailed information.

Conclusion

Wiring an LED dimmer is a straightforward process if you follow the steps carefully and take necessary safety precautions. Whether you’re looking to enhance your home’s ambiance or improve energy efficiency in a commercial setting, an LED dimmer is a valuable addition to your lighting system.
