0-10V Dimmable LED Driver
Constant Current
boqi Save Your Time & Cost
What Makes Our 0-10V Driver Stand Out?

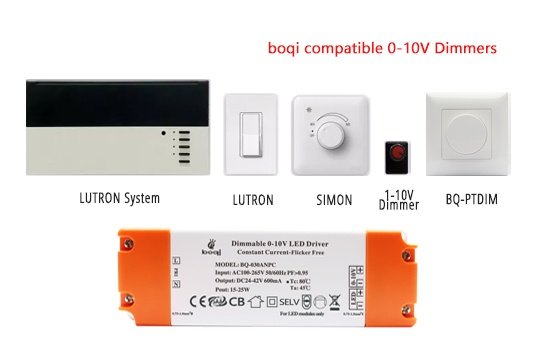

Linear or Logarithmic Dimming Curve Options-Compatible with various 0-10V dimmer brands and user preferences.

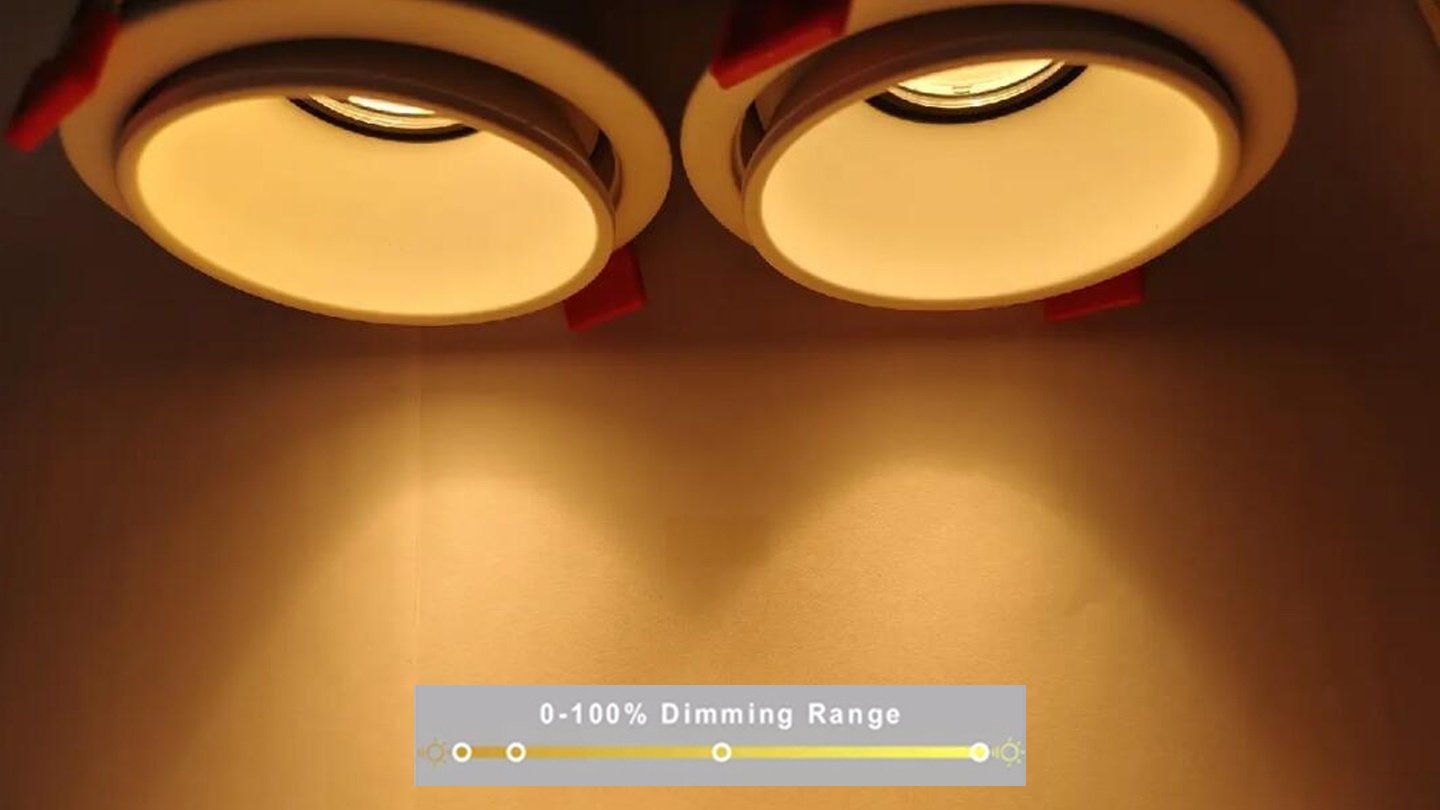

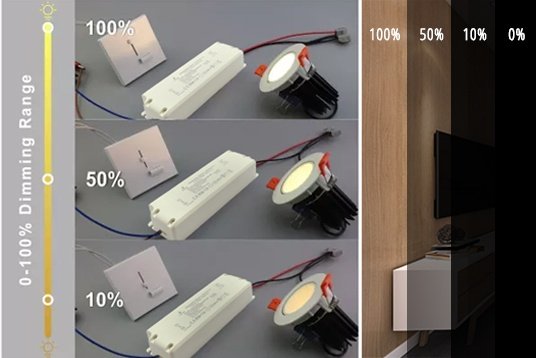

Supports 0–10V dimming with dimming Range from 0% to 100%. Provides ultra-smooth light adjustment for ambiance and energy saving.

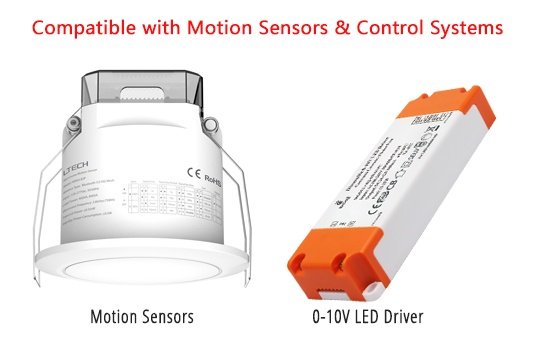

Compatible with Motion Sensors & Control Systems-Easily integrates into smart control and energy-saving lighting systems.

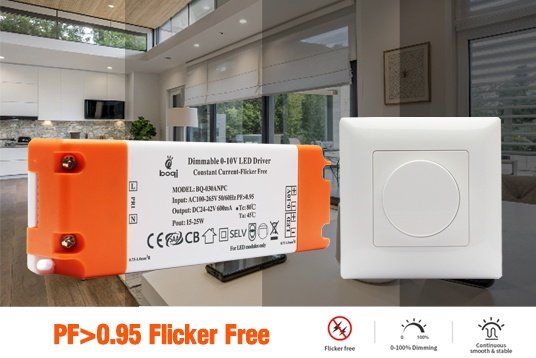

PF>0.95, Smooth Flicker-Free Dimming Supports 0–10V dimming with no visible flicker, ideal for commercial and residential lighting.
Explore boqi 0-10V LED Driver Collection
0-10V Dimmable LED Driver Constant Current
Model: BQ-012ANPC
Output Power: 3-12W
Input: 100-265VAC
Output: 9-42V 300mA

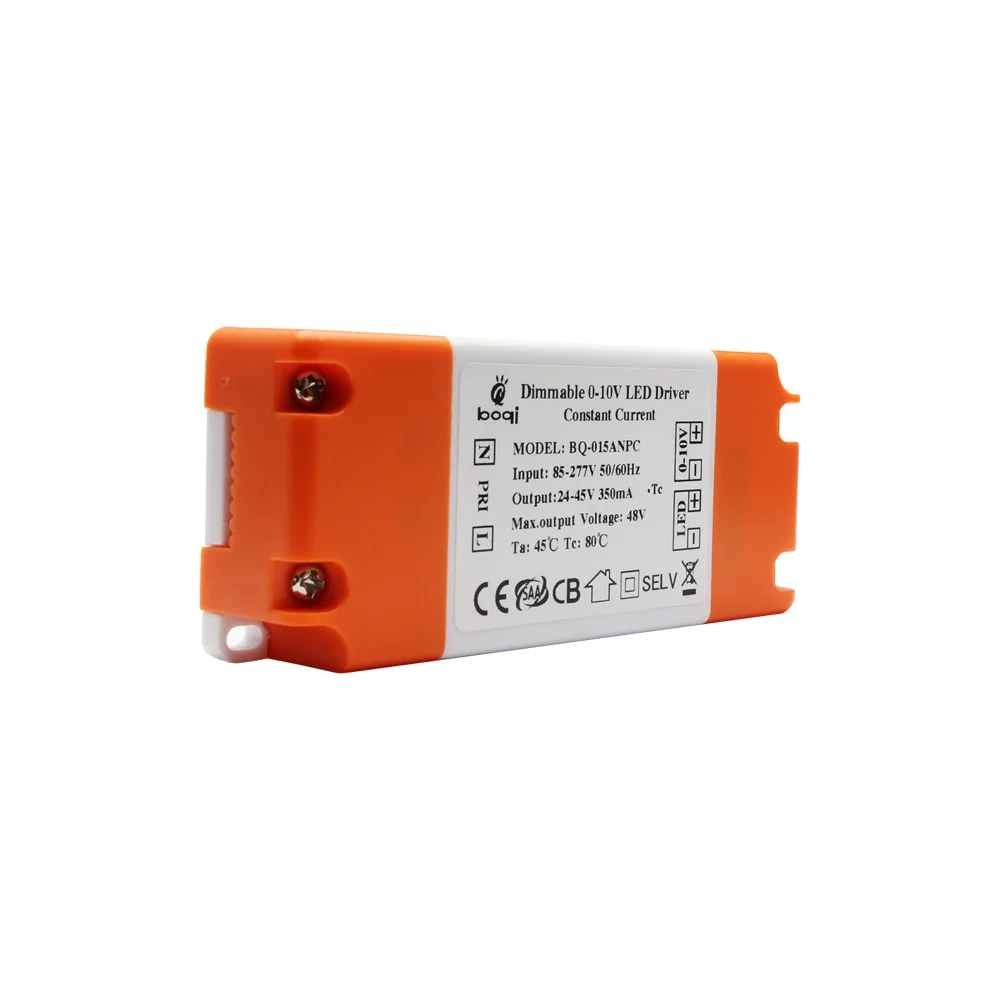

0-10V Dimmable LED Driver Constant Current
Model: BQ-015ANPC 350
Output Power: 10-15W
Input: 100-265VAC
Output: 24-42V 350mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-015ANPC 300
Output Power: 10-15W
Input: 100-265VAC
Output: 36-50V 300mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-020ANPC 450
Output Power: 12-18W
Input: 100-265VAC
Output: 24-42V 450mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-020ANPC 300
Output Power: 12-18W
Input: 100-265VAC
Output: 36-60V 300mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-030ANPC 600
Output Power: 15-24W
Input: 100-265VAC
Output: 24-42V 600mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-030ANPC 400
Output Power: 15-24W
Input: 100-265VAC
Output: 36-60V 400mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-05ANPC 1000
Output Power: 24-42W
Input: 100-265VAC
Output: 24-42V 1000mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-05ANPC 600
Output Power: 30-42W
Input: 100-265VAC
Output: 50-72V 600mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-060ANPC 1500
Output Power: 45-63W
Input: 100-265VAC
Output: 24-42V 1500mA
0-10V Dimmable LED Driver Constant Current
Model: BQ-060ANPC 900
Output Power: 45-63W
Input: 100-265VAC
Output: 50-72V 900mA
Versatile Applications, Illuminate Endless Possibilities
Office Open-Plan Lighting System
Constant current 0-10V dimmable drivers enable centralized brightness control via a wall-mounted 0-10V controller or building automation system.
Explore More Solutions
Warehouse or Industrial High Bay Lighting
Each LED fixture is driven by a constant current 0-10V dimmable driver, allowing automatic dimming during low-activity periods via sensors.
Explore More Solutions
School or University Lecture Halls
LED downlights with 0-10V dimmable constant current drivers allow teachers to adjust brightness levels easily.
Explore More Solutions
Hospital Patient Room Lighting
0-10V dimmable constant current drivers ensure adjustable lighting via nurse station or local dimming controls.
Explore More Solutions
Customize for Unique Lighting Solutions
Startup Delay Time / Soft Start
Set custom soft start behavior for smoother power-up, dimming and protection of LEDs.
Dimming Signal Compatibility
Combine 0-10V with PWM or potentiometer dimming for multi-control flexibility.

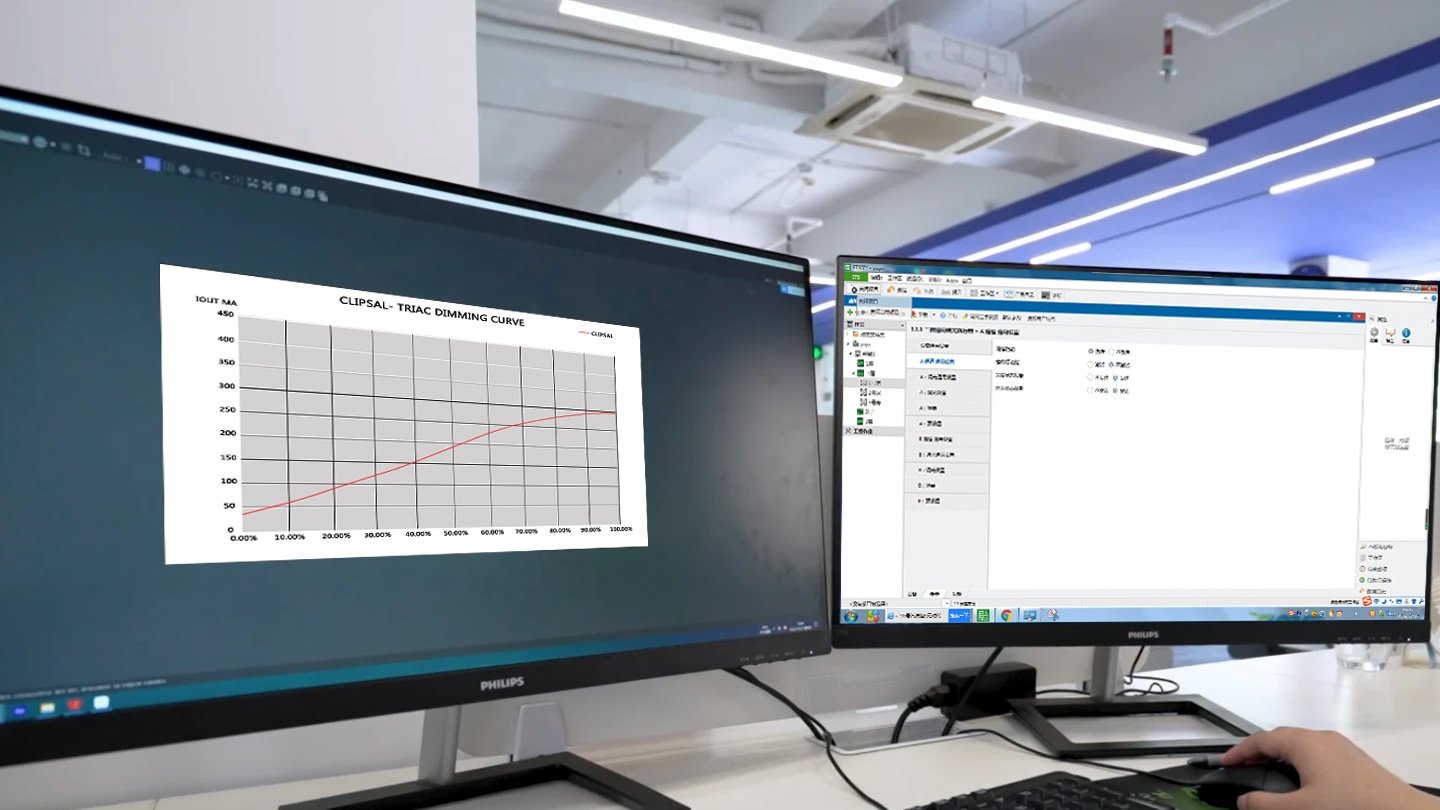

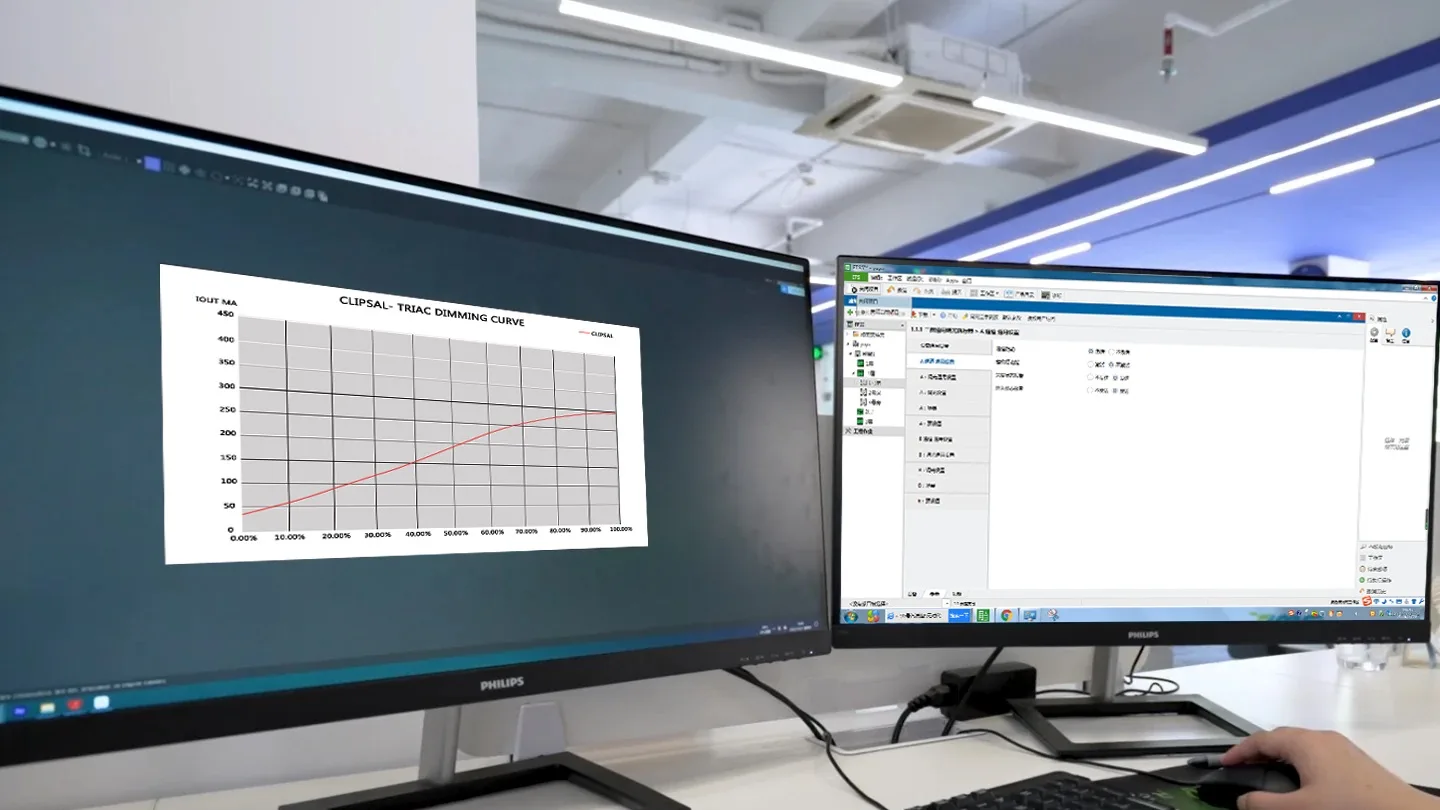

Dimming Curve Type
Select linear or logarithmic dimming profiles for optimal control experience.

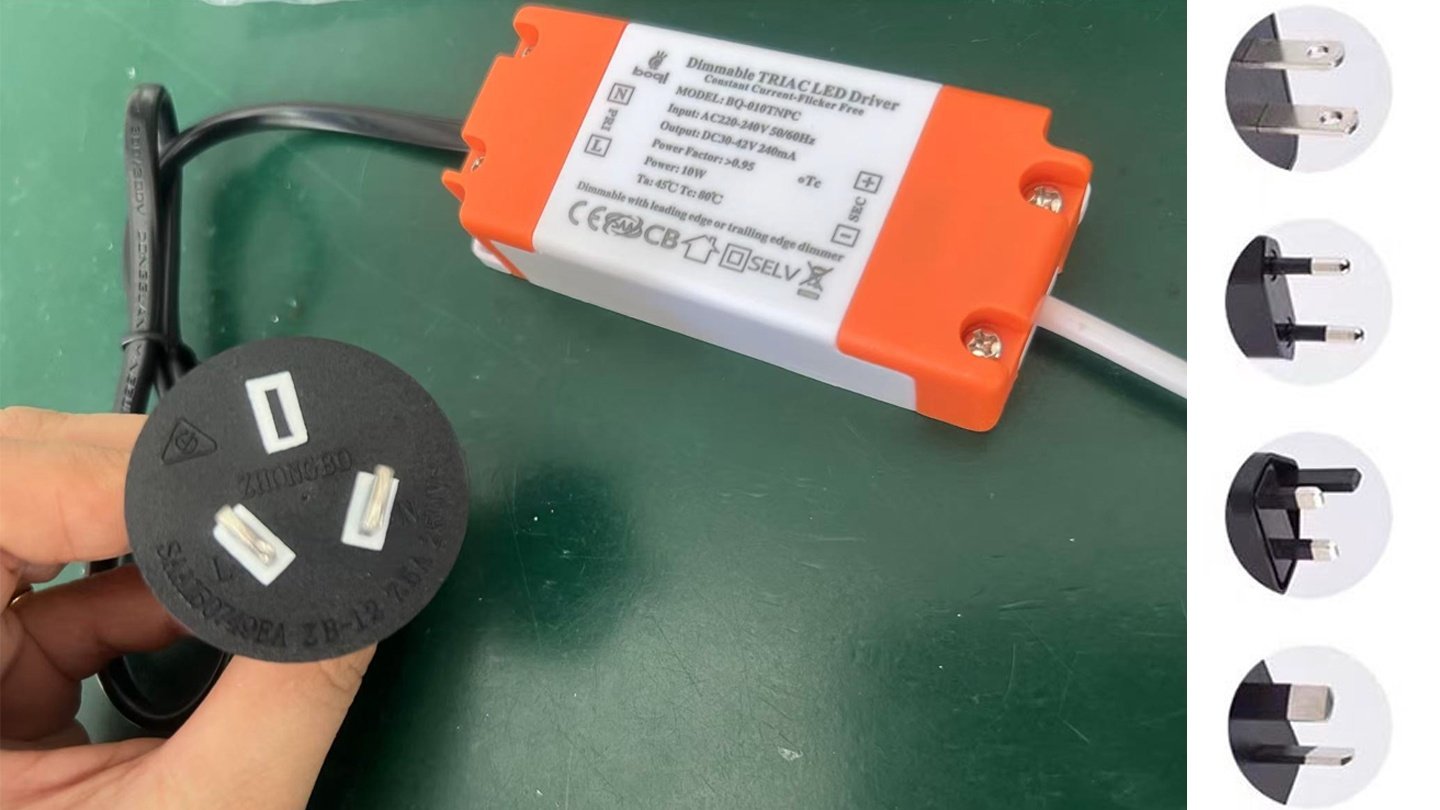

Cable & Connector Types
Customize wire lengths, terminal blocks, or quick connectors to speed up installation.
Logo & Label Customization
OEM/ODM branding and private labels options for your brand.
Custom Packaging (OEM/ODM)
Tailor the packaging box, user manual, barcode, and label format for your market.
Explore boqi Factory: The Source of Quality
At boqi, we believe that trust begins with exceptional quality. From innovative design to precision manufacturing, every detail of our production process reflects our commitment to delivering dependable LED lighting solutions. Step inside our factory and discover how advanced technology, expert craftsmanship, and strict quality standards ensure that every boqi product meets the highest expectations — giving your business the performance and reliability it deserves.
Differentiated Services: Precisely Meeting Your Business Needs
For Offline Clients
Dimmer Compatibility Test
Free testing to ensure perfect match with your dimmer and lighting brands.
One Stop Services
Offer boqi dimmers perfectly compatible with our dimmable LED drivers.
Stable Supply & Fast Delivery
Efficient logistics to meet your project deadlines consistently.
For Online Clients
No MOQ Ordering
Support flexible orders with mixed product options.
Custom Logo for Small Orders
Low MOQ with branded logo for online sales.
Content Support for Listings
Photos, specs, and descriptions ready for e-commerce platforms.
For Brand Partners
Exclusive Design Protection
Private molds and NDAs to secure your IP.
Joint Engineering Support
Work directly with our R&D team for custom tech.
OEM/ODM Custom Solutions
Tailored designs for dimmers and drivers with your branding.
boqi's One-stop Service,
Save Worry, Save Trouble, Save Cost
Understand your market and deliver what your customers truly need.
Design LED dimmers and drivers that stand out and sell well.
Turn bright ideas into reality with competitive pricing and quality.
Maintain your brand reputation with stable, certified, and tested products.
Accelerate development and delivery to lead your market early.
Support private label and exclusive distribution to protect your territory.
Ensure Every Order is Produced On Time, with Quality Assured
Step 1: Product Specification Confirmation
Confirm dimming type (leading/trailing edge), input/output voltage, current, wattage, housing type, certifications (CE, UL, etc.).

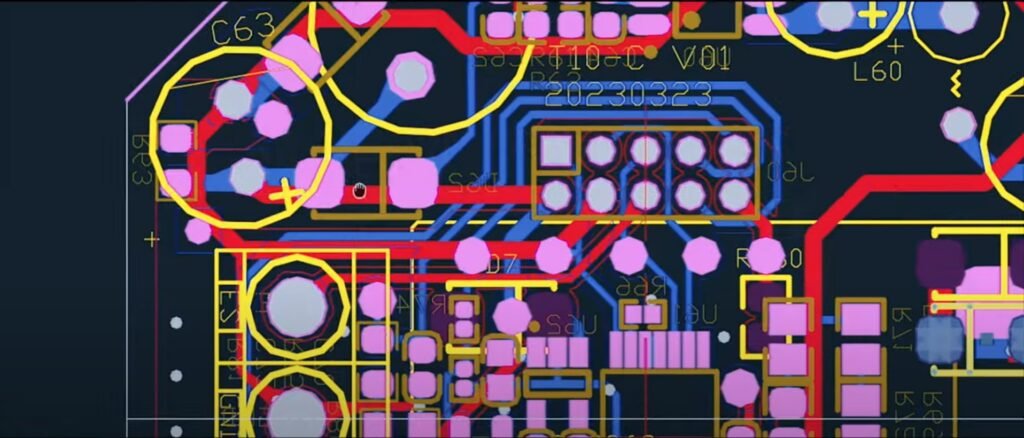

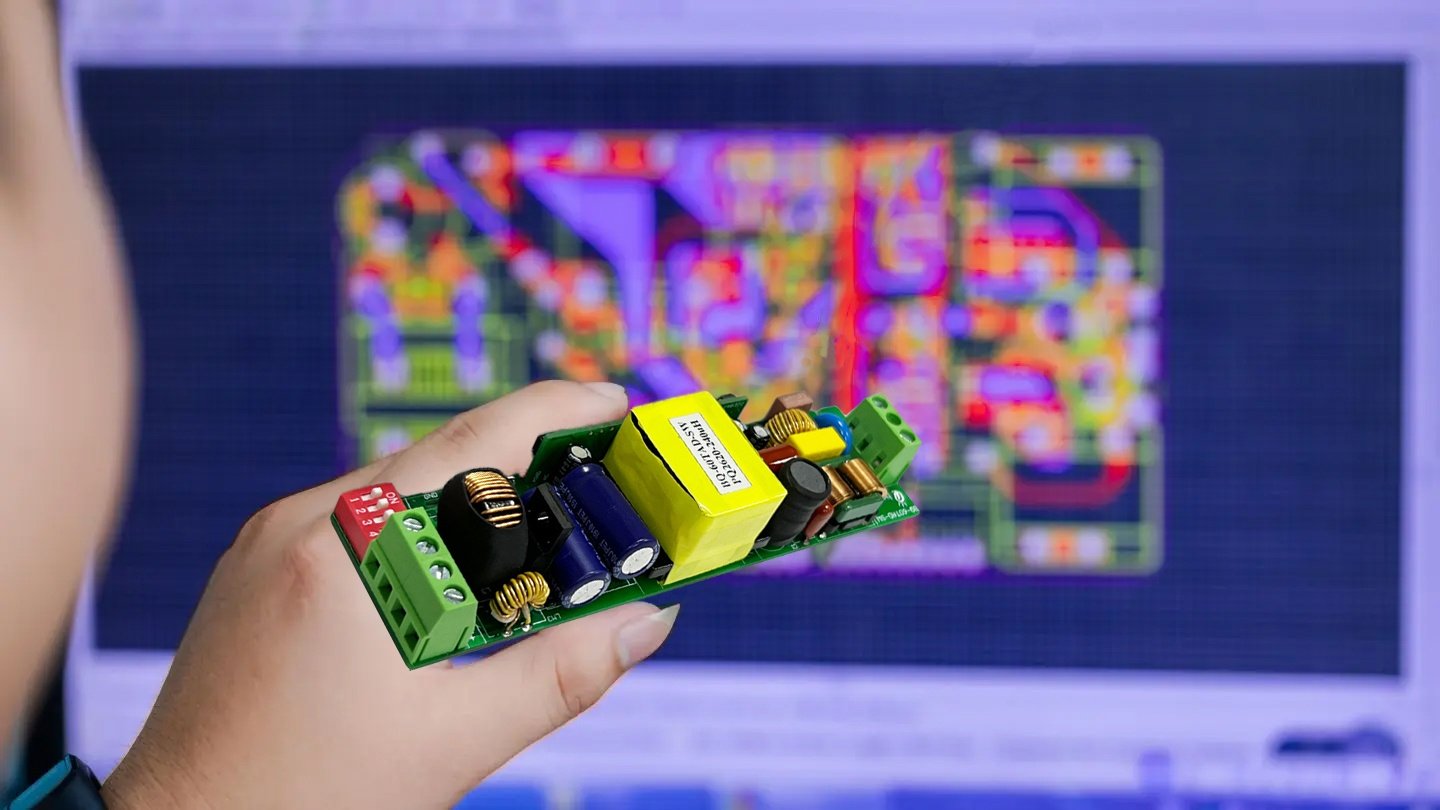

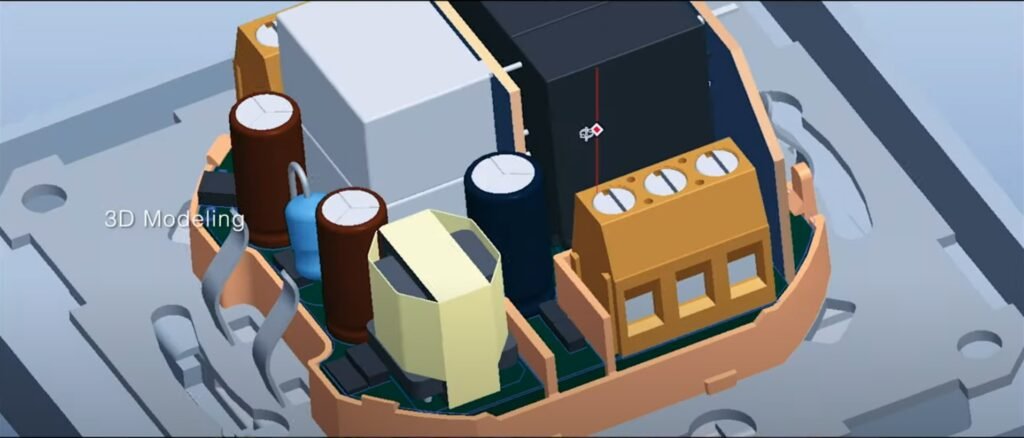

Step 2: PCB Layout DesignPCB
Convert schematic into PCB layout using CAD software; ensure thermal and EMC considerations are met.

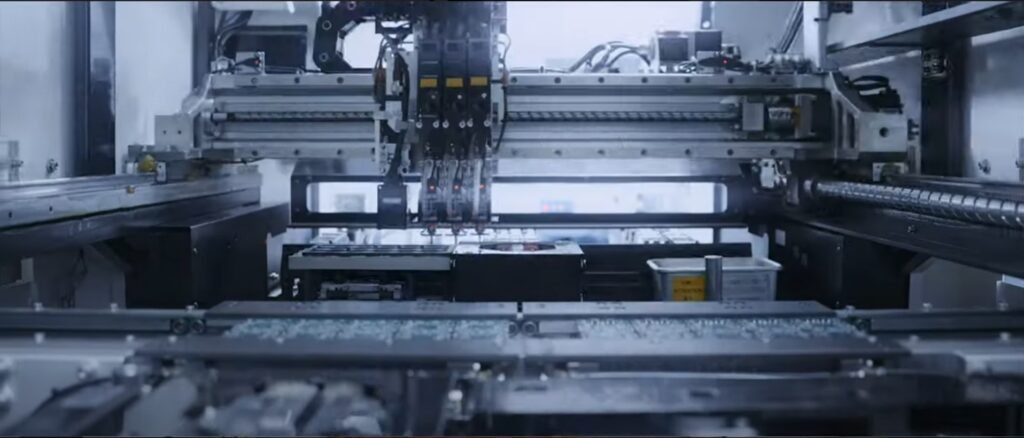

Step 3: SMT Process (Surface Mount Technology)
Apply solder paste, place components using pick-and-place machine, and reflow solder the PCB.

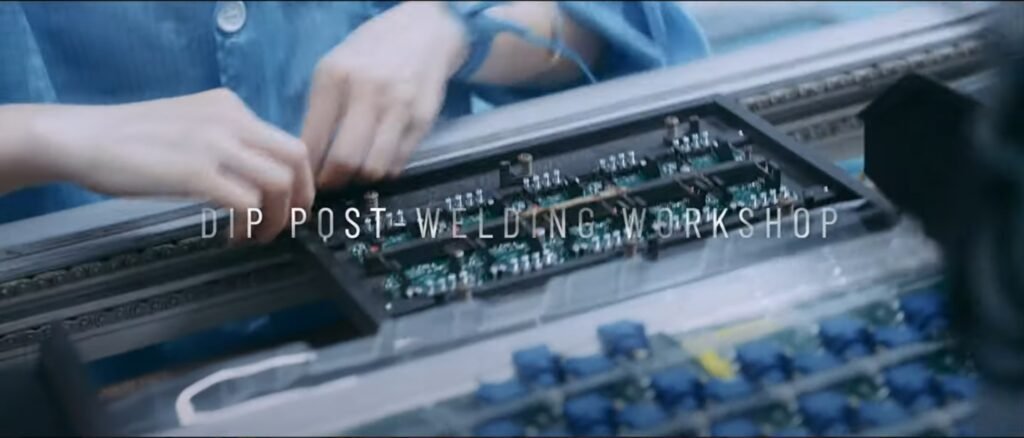

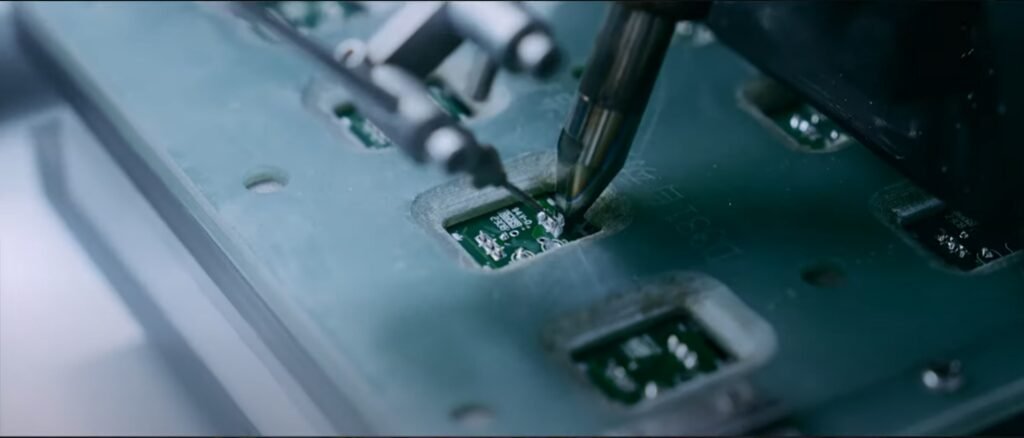

Step 4: DIP Process (Through-Hole Insertion)
Insert transformers, coils, connectors, and larger capacitors; solder using wave soldering or manual method.
Step 5: AOI Inspection (Automated Optical Inspection)
Check for missing, misaligned, or poorly soldered components post-SMT/DIP.
Step 6: Electrical Function Test
Full function test for voltage, current, dimming performance, short circuit, and open load protection.

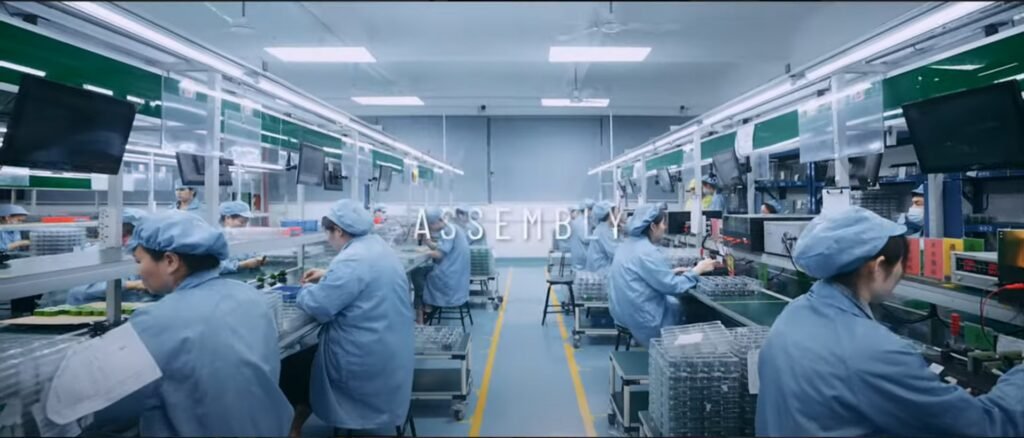

Step 7: Assembly of Housing and Heat Sink
Fix the PCB into the flame-retardant plastic or aluminum casing; apply thermal pads or paste if needed.

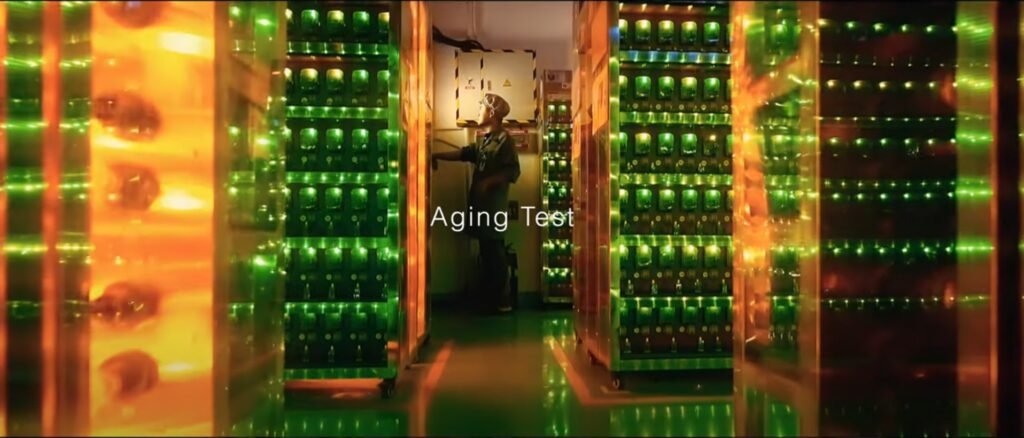

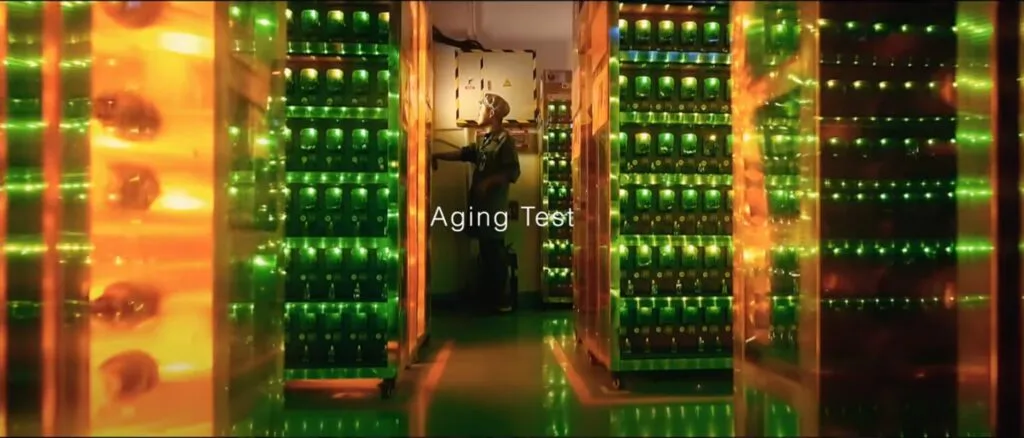

Step 8: Burn-In Test
Operate under high temperature and full load (45–55°C) for 2–4 hours to identify early failures.
Step 9: Labeling & Quality Inspection
Apply product labels (specs, logo, certifications); perform visual and dimensional checks.

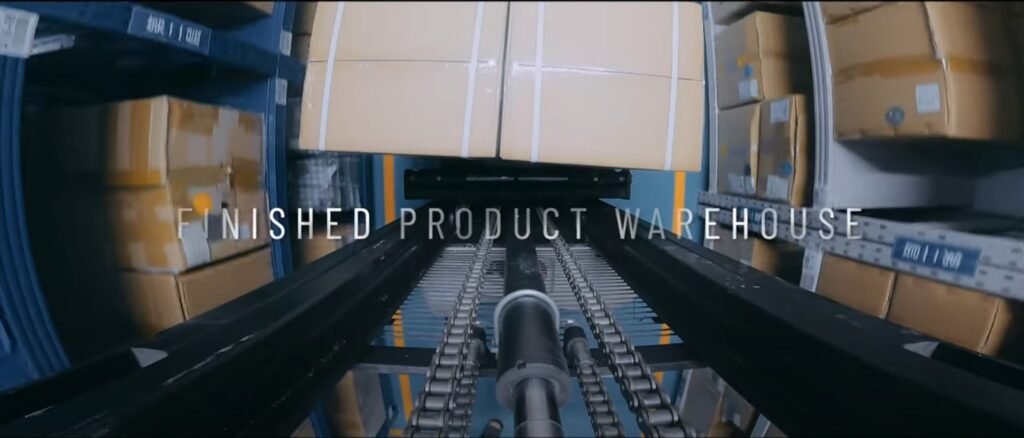

Step 10: Packaging
Place unit in branded inner box with instruction manual; pack into cartons with appropriate protection and labeling.
boqi Never Leaves Problems for Customers to Solve. It’s a Principle We Stand By!
Every Batch Ready to Meet Your Customers' Expectations
Globally Recognized Quality Certifications
Our products undergo multiple technical certifications and testing annually, including CE, SAA, CB, EMC, LVD, RoHS, and TUV, based on customer requirements. This ensures full compliance with international standards for safety, quality, and energy efficiency, providing our global partners with reliable and certified lighting solutions they can trust.
15+
Years of Industry Experience
With over 15 years of expertise in LED lighting manufacturing, boqi brings deep industry knowledge, proven performance, and trusted quality to clients around the world.
100+
Custom Dimming Solutions Delivered
From TRIAC to 0-10V and DALI, we have successfully developed and delivered over 100 tailored dimming solutions to meet unique project requirements in commercial, residential, and industrial applications.
60+
Serving 60+ Countries and Regions
Our products light up spaces in more than 60 countries, trusted by lighting distributors, contractors, and OEM clients for their reliability and global compliance.
0
Zero MOQ Policy for Standard Models
We support growing businesses by offering no minimum order quantity on standard models, making it easier for startups, small wholesalers, and lighting brands to work with us flexibly.
Trusted by Our Valuable Partners
“boqi’s dimmable LED drivers are incredibly reliable and easy to install. We've been sourcing from them for over three years and have never had a return. Their technical support and fast response time make them a trusted partner for all our lighting projects.”
Lu** F**
“As a contractor, I need dependable products that don’t fail on-site. boqi delivers just that. Their TRIAC dimmers and drivers work smoothly with various LED brands. The quality and consistency are top-notch.”
Ja** W**
“boqi’s engineering team helped us solve a dimming compatibility issue quickly. They even provided custom solutions that fit perfectly into our lighting systems. Very professional and responsive.”
He** J**
Our Sustainability Efforts for the Next Generation
Renewable Energy
Sustainable Materials
Eco-Friendly Packaging
Energy-Efficient Products
Explore More Options from boqi
TRIAC Dimmer
TRIAC Dimmable LED Driver With DIP Switch
TRIAC Dimmable LED Driver C.C.
TRIAC Dimmable LED Driver C.V. 20-75W
TRIAC Dimmable LED Driver C.V. 75-240W
TRIAC Dimmable LED Driver Supper Slim
DALI Controller
DALI Dimmable LED Driver With DIP Switch
DALI Dimmable LED Driver C.C.
DALI Dimmable LED Driver C.V. 20-75W
DALI Dimmable LED Driver C.V. 75-240W
DALI Dimmable LED Driver Supper Slim
0-10V Dimmer
TRIAC Dimmable LED Driver With DIP Switch
0-10V Dimmable LED Driver C.C.
0-10V Dimmable LED Driver C.V. 20-75W
0-10V Dimmable LED Driver C.V. 75-240W
0-10V Dimmable LED Driver Supper Slim
FAQs About 0-10V Dimmable LED Driver Manufacturer
