What Is LED Driver Efficiency?

Introduction

As LED lighting technology continues to advance, it’s crucial to understand the components that make these systems energy-efficient, cost-effective, and durable. LED driver efficiency is one of the key factors affecting the performance and longevity of LED lighting systems. Engineers, hobbyists, and electronics enthusiasts can benefit from understanding how this efficiency influences energy savings, light quality, and system sustainability.

Snippet Answer Paragraph

LED driver efficiency is the measure of how effectively an LED driver converts input electrical power into output power used by LEDs, minimizing energy loss in the process. High-efficiency drivers (typically 90% or higher) reduce energy costs and heat production, improving the overall performance and longevity of the lighting system.

In simple terms, LED driver efficiency is the ratio of power used by the LED to the power consumed by the driver. This efficiency is typically expressed as a percentage. A high-efficiency driver uses more of its input power to generate light, meaning it minimizes energy waste in the form of heat or other inefficiencies. So, what makes LED driver efficiency so important, and how can you measure and optimize it?

LED Driver Efficiency Explained

LED driver efficiency refers to how effectively a driver converts input electrical power into output power that directly powers LEDs. Essentially, it’s the driver’s ability to take energy from the electric grid and deliver it to the LED with minimal loss.

For example, if a driver has an efficiency rating of 90%, it means 90% of the input power is used to produce light, while 10% is lost as heat. High-efficiency drivers are valuable because they reduce energy consumption, minimize heat output, and can even extend the life of the LED by preventing overheating.

Why Is LED Driver Efficiency Important?

1. Energy Savings: High-efficiency drivers require less power to produce the same light output as lower-efficiency drivers, reducing energy costs.
2. Reduced Heat Generation: Less energy lost as heat leads to lower operational temperatures, extending the LED’s lifespan.
3. Environmental Impact: Efficient drivers decrease overall power consumption, reducing greenhouse gas emissions associated with energy production.
4. Cost-Effectiveness: Reduced energy usage translates to lower utility bills over time, making LED lighting systems more economical for both residential and commercial use.

Calculating LED Driver Efficiency

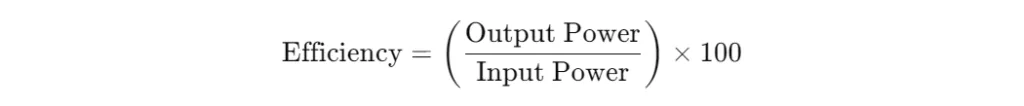

LED driver efficiency can be calculated using a straightforward formula:

• Output Power: The power delivered to the LED, measured in watts.
• Input Power: The power drawn from the electricity source, also measured in watts.

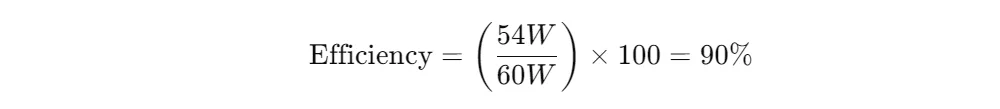

For example, if an LED driver has an input power of 60 watts and an output power of 54 watts, its efficiency would be:

High-efficiency drivers typically have ratings between 85% and 95%, but advancements in technology are pushing some drivers closer to 98% efficiency.

Factors That Affect LED Driver Efficiency

Several variables can influence the efficiency of an LED driver, including:

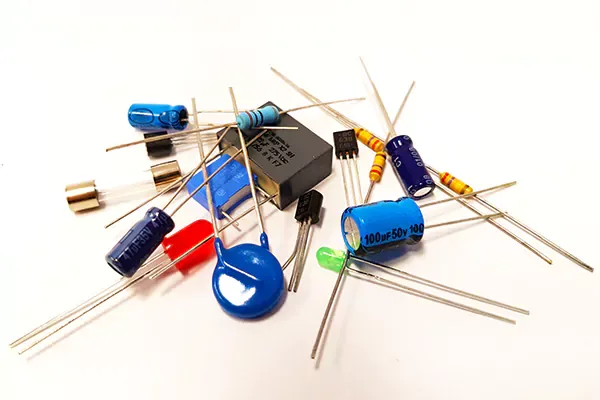

1. Component Quality: The quality of components like capacitors, transistors, and resistors impacts energy loss. High-grade materials can withstand higher temperatures and reduce power wastage.
2. Load Matching: Drivers are designed to operate most efficiently within specific power ranges. Matching the LED’s power requirements to the driver’s optimal range improves efficiency.
3. Temperature and Environment: Higher ambient temperatures can cause components to degrade, reducing efficiency over time. Efficient thermal management, such as using heat sinks or placing drivers in well-ventilated areas, helps maintain performance.
4. Input Voltage Stability: Fluctuating input voltage can strain drivers, especially those not designed to handle a wide input range. Stable input voltage helps maintain steady, efficient output.
5. Driver Type: Different types of LED drivers—constant current and constant voltage—affect efficiency. Some drivers are optimized for specific conditions, so choosing the right type is crucial for efficiency.

Comparing LED Driver Efficiency and LED Efficiency

While LED driver efficiency focuses on the driver’s power conversion, LED efficiency refers to the LED’s own ability to convert electrical energy into visible light. LEDs are known for their efficiency compared to traditional lighting solutions like incandescent bulbs, as LEDs can convert up to 50% of the power into light, whereas incandescent bulbs convert only around 10-20%.

Types of LED Drivers and Their Impact on Efficiency

The type of LED driver selected for a project can also impact efficiency. Here’s a look at the most common types:

1. Constant Current Drivers: These drivers provide a steady current, essential for LEDs that require consistent current to avoid burnout. Because they closely match the LED’s power needs, constant current drivers are often more efficient than constant voltage drivers.
2. Constant Voltage Drivers: Designed for LEDs needing stable voltage, these drivers are commonly used in setups where multiple LEDs are wired in parallel. Efficiency may be slightly lower than constant current drivers due to potential power mismatches.
3. Dimmable Drivers: These drivers allow users to adjust LED brightness. While convenient, dimmable drivers may operate with lower efficiency because of additional circuitry required for dimming functionality.
4. Programmable Drivers: These advanced drivers allow for customized settings, such as current, voltage, and timing. They can optimize efficiency but tend to be more expensive.

How to Maximize LED Driver Efficiency

To achieve the highest possible efficiency from an LED driver, consider these strategies:

• Choose High-Efficiency Drivers: Look for drivers rated at 90% efficiency or above.
• Ensure Proper Thermal Management: Place drivers in well-ventilated areas or use heat sinks to dissipate excess heat, reducing efficiency losses.
• Optimize Load Matching: Ensure the driver’s output specifications closely match the LED’s requirements to minimize energy waste.
• Select Quality Components: Invest in drivers from reputable manufacturers with high-quality components that withstand temperature variations.
• Use Power Factor Correction (PFC): Some high-efficiency drivers come with PFC technology, reducing the strain on the power supply and improving overall efficiency.

Common Tools for LED Driver Efficiency Calculations

Some manufacturers offer online LED driver efficiency calculators where users can input driver specifications and operating conditions to estimate efficiency. These tools consider factors like input/output voltage, load requirements, and environmental conditions.

Recognizing Symptoms of LED Driver Inefficiency or Failure

An inefficient or failing LED driver can negatively impact the performance of a lighting system. Here are some common symptoms of LED driver issues:

• Flickering Lights: Inconsistent power delivery can cause visible flickering, which may indicate driver inefficiency or degradation.
• Dimming or Reduced Brightness: A driver not providing adequate power can lead to dimmer LEDs than intended.
• Overheating: Excessive heat generation indicates poor efficiency and can shorten the LED’s life.
• Complete Failure: In extreme cases, a malfunctioning driver can fail completely, causing the LED to stop working.

LED Driver Efficiency in Practice: Key Applications and Benefits

High-efficiency LED drivers are essential for a variety of applications, from residential to commercial and industrial lighting. Some benefits include:

• Lower Operational Costs: For businesses and large installations, high-efficiency drivers reduce electricity expenses.
• Improved Sustainability: Efficient LED drivers reduce the carbon footprint of lighting systems by using less energy and producing less heat.
• Enhanced Performance in Industrial Settings: In environments where lighting runs continuously, such as warehouses and factories, efficient drivers reduce maintenance costs and heat-related issues.

Conclusion

In the world of LED lighting, driver efficiency is a vital consideration. LED driver efficiency not only affects how much energy is used but also influences the lifespan and overall performance of the lighting system. By choosing high-quality, efficient drivers and matching them appropriately with LED requirements, users can benefit from lower energy costs, reduced environmental impact, and long-lasting lighting solutions.

For anyone investing in LED lighting, understanding and prioritizing driver efficiency is a step toward achieving brighter, more cost-effective, and sustainable illumination.
