LED lighting projects can quickly get complicated when it comes to choosing the right driver. Many people confuse constant current and constant voltage drivers—and even more are unclear on how 0–10V dimming works.
A constant voltage 0–10V LED driver delivers a fixed DC output voltage and uses a 0–10V analog signal to control dimming. It’s ideal for applications like LED strips or signage lighting.
Many lighting pros stick with what they know, but understanding how this driver works can open doors to better system design, easier troubleshooting, and smarter product selection. Let’s dive deeper.
Definition and key features that differentiate it from constant current drivers?

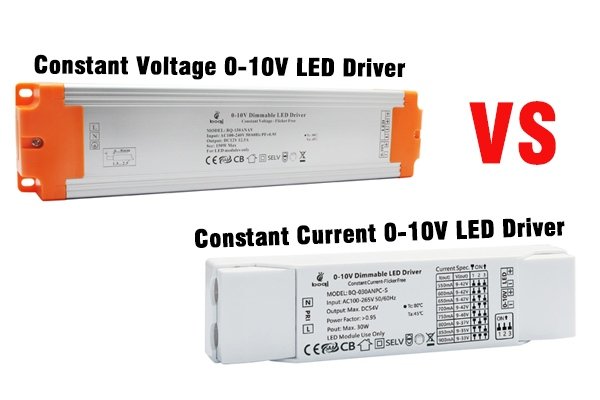

If you’ve been in the LED industry long enough, you’ve probably run into both constant voltage (CV) and constant current (CC) drivers—but many still mix them up.
Constant voltage 0–10V drivers deliver a steady output voltage (like 12V or 24V), unlike constant current drivers, which regulate the current going to the LEDs.
What’s the real difference?
| 특징 | Constant Voltage Driver | Constant Current Driver |
|---|---|---|
| Output type | Fixed voltage (e.g. 12V) | Fixed current (e.g. 350mA) |
| 신청 | LED strips, signage | COBs, downlights, panels |
| Dimming integration | 0–10V, PWM | 0–10V, TRIAC, DALI, etc. |
| Design flexibility | High | 보통 |
| Needs resistor/IC on LED? | Yes | No |
CV drivers are a go-to when the LEDs are designed to accept a fixed voltage. Usually, these LEDs come with internal resistors or constant-current regulators.
That means you can power multiple fixtures in parallel, which makes CV drivers more scalable in some scenarios.
Understanding the 0–10V Dimming Protocol?
You might have heard of 0–10V dimming, but few understand how analog control really works behind the scenes.
The 0–10V dimming protocol uses a low-voltage analog signal (0 to 10 volts) to adjust the LED brightness level from minimum to full output.
How does it work?

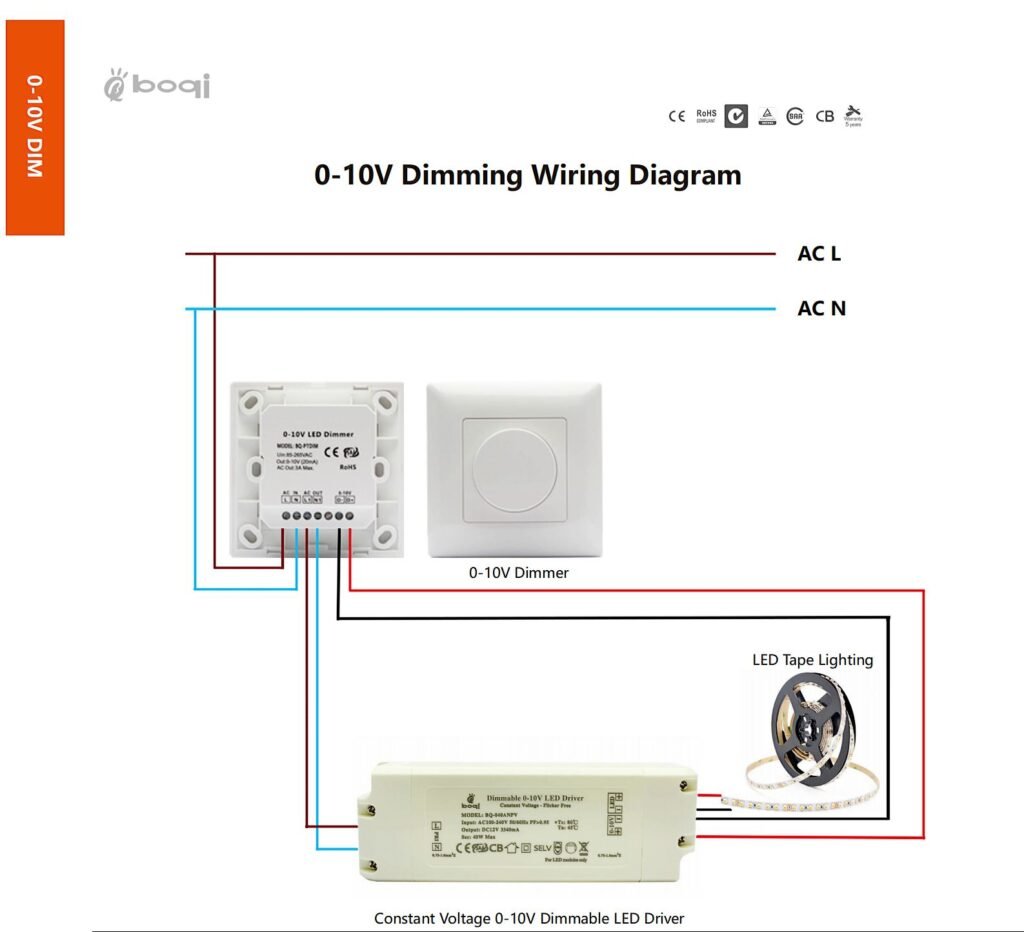

The driver has a pair of dimming wires—usually purple (+10V) and gray (return)—which read the control voltage sent by a dimmer or control system.

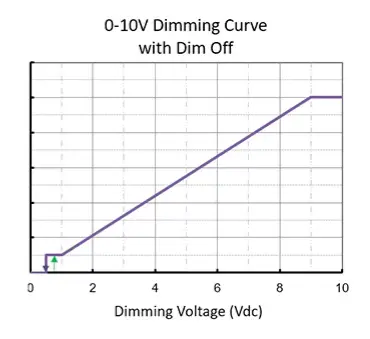

| Control Voltage | Light Output |
|---|---|
| 10V | 100% (full brightness) |
| 5V | 50% |
| 1V | ~10% (some drivers go lower) |
| 0V | Minimum or off |
This dimming method is completely separate from the AC or DC power lines. That’s what makes it so stable and interference-free compared to other methods like phase-cut dimming.
How Constant Voltage 0–10V LED Drivers Operate?
To fully grasp what’s going on inside the driver, we need to go step by step—from power input to dimming output.
A constant voltage 0–10V LED driver converts AC to stable DC voltage and adjusts output brightness based on a 0–10V analog signal.
Step-by-step breakdown:
- AC to DC Conversion
- AC mains input (usually 100–277V) is rectified and filtered into DC.
- A switching power supply regulates this into a stable DC voltage (e.g., 24V).
2. DC Output Control
- The driver has a power regulation circuit to maintain a consistent voltage output, even with changing load conditions.
3. Dimming Signal Input
- The 0–10V signal is read through an optocoupler or comparator circuit.
- It translates the analog voltage into a PWM signal or adjusts the DC current loop, depending on the driver’s dimming method.
4. Brightness Adjustment
- The driver adjusts the output current (while keeping voltage constant) to match the dimming level.
5. Feedback Loop
- A feedback system ensures the dimming response is smooth and linear—or logarithmic, depending on design.
This simplicity is why many engineers love using CV 0–10V drivers in modular, scalable lighting designs.
Typical Applications in LED Lighting Systems?
Choosing the right application makes or breaks the success of a driver. CV 0–10V drivers aren’t for everything—but they shine in some areas.
These drivers are commonly used in LED strip lighting, signage, cabinet lighting, and architectural systems that use pre-regulated LED modules.
Ideal Use Cases
| Application Type | Why It Fits CV 0–10V Drivers |
|---|---|
| Retail display lighting | Smooth dimming, easy setup |
| LED signage systems | Fixed voltage, scalable layout |
| Cove and accent lighting | Flexible load configurations |
| Under-cabinet lighting | Compact, low heat |
| Outdoor architectural | High wattage versions available |
In my projects, I often recommend CV drivers when the lighting system is built using pre-assembled LED strips or bars. They usually include resistors or internal ICs, making it unnecessary to use constant current.
Plus, these installations often require long cable runs, which CV drivers handle better than CC drivers.
Key Components and Circuit Design?
You don’t need to be an EE to understand the main components inside a CV 0–10V LED driver—but a little knowledge goes a long way.
The driver contains key sections for rectification, voltage regulation, dimming signal processing, and output control. Each section ensures safe and stable operation.
Technical Breakdown
1. Input Stage
- EMI filter
- Bridge rectifier
- Bulk capacitor
2. Power Conversion
- Switching controller (PWM or PFC chip)
- Transformer or inductor (for isolation)
- Output rectifier and smoothing capacitor
3. Dimming Control Circuit
- Analog comparator or ADC
- Isolation circuit (e.g., optocoupler)
- Dimming controller (modifies PWM duty cycle or output loop)
4. Output Stage
- Voltage sensing
- Overvoltage/overcurrent protection
- Feedback loop
This modular architecture helps manufacturers like us at BOQI to offer both off-the-shelf and customized solutions for different power levels and form factors.
Compatibility with Dimmers and Controls?
Dimming doesn’t happen in a vacuum. Even the best driver needs the right control system to perform smoothly.
A constant voltage 0–10V driver works best when paired with compatible analog dimmers that output 0–10V DC signals.
Things to Check Before Pairing:
| Compatibility Factor | Why It Matters |
|---|---|
| Control signal type | Must be analog, not PWM or DALI |
| Sinking vs sourcing | Driver should match control signal type |
| Min dim level | Some drivers won’t dim to 0V |
| Wiring configuration | Keep dimming wires isolated |
Some dimmers source voltage, others sink it. Most CV drivers are designed for sinking-type dimmers—where the dimmer acts like a variable resistor.
I always recommend testing dimmers with your driver before large-scale deployment, especially for commercial lighting projects.
Advantages of Using Constant Voltage 0–10V Drivers?
We all want lighting systems that are efficient, scalable, and easy to maintain. That’s where these drivers stand out.
Constant voltage 0–10V drivers offer excellent dimming performance, broad system compatibility, and a simple wiring structure.
Why I Prefer Them
- 부드러운 디밍
The analog signal ensures gradual dimming without flicker or stepping. - System Flexibility
Ideal for LED strip setups that need parallel wiring. - Ease of Integration
Widely compatible with third-party dimmers and automation systems. - 높은 효율성
Especially in higher-wattage models (100W–300W), these drivers offer 88–92% efficiency. - 비용 효율적
Compared to digital protocols like DALI, 0–10V is much more affordable.
Common Challenges and How to Overcome Them?
Even good drivers can face problems. If you’ve used these in real projects, you’ve probably run into flickering or voltage drops.
Issues like flickering, signal interference, or voltage drop in long runs can occur—but most are easy to fix with correct wiring and good product selection.
Common Problems
| Problem | Cause | Solution |
|---|---|---|
| Flickering | Interference or poor dimmer | Use shielded cable, quality dimmer |
| Voltage drop | Long DC cable runs | Use thicker wire, split runs |
| Dim-to-off failure | Driver doesn’t support 0V dimming | Add relay or switch |
| Inconsistent dimming | Mixing brands | Use same brand drivers and dimmers |
For example, one of my clients used unshielded cable for the dimming lines in a 30m retail store installation. Result? Flickering every few seconds. Swapping in shielded dimming cable fixed the problem.
Choosing the Right Driver for Your Project?
There’s no one-size-fits-all driver. You need to match specs carefully—especially for large-scale manufacturing.
When selecting a constant voltage 0–10V driver, consider voltage output, total wattage, dimming curve, certifications, and physical form factor.
Key Parameters to Check
| 매개변수 | Why It’s Important |
|---|---|
| Output voltage | Must match LED module voltage |
| Power rating | Choose 20% higher than load |
| Dimming range | Verify lowest dimmable level |
| 인증 | UL, CE, RoHS for compliance |
| Enclosure rating | IP rating for outdoor use |
| Size and shape | Must fit into fixture housing |
Buyers like Jacky should always ask suppliers for test samples to validate in the actual fixture and check thermal behavior, dimming smoothness, and EMI performance.
Why Choose BOQI as Your Reliable Dimming Partner?
With hundreds of options on the market, why do so many professionals work with us?
BOQI offers high-quality constant voltage 0–10V drivers with customization options, fast global support, and deep technical expertise.
We understand your application needs. We’ve helped clients scale their lighting systems across retail chains, hotels, and architectural projects. Whether you need a 30W waterproof unit or a 240W industrial version, we’ll tailor it for you.
We offer:
- Customized dimming curves
- Compact designs for tight installations
- CE, SAA, CB and RoHS compliance
- Quick prototyping and mass production
- Engineering support from design to delivery
결론
Constant voltage 0–10V LED drivers offer a powerful combination of simplicity, compatibility, and performance—making them a smart choice for modern lighting systems.
