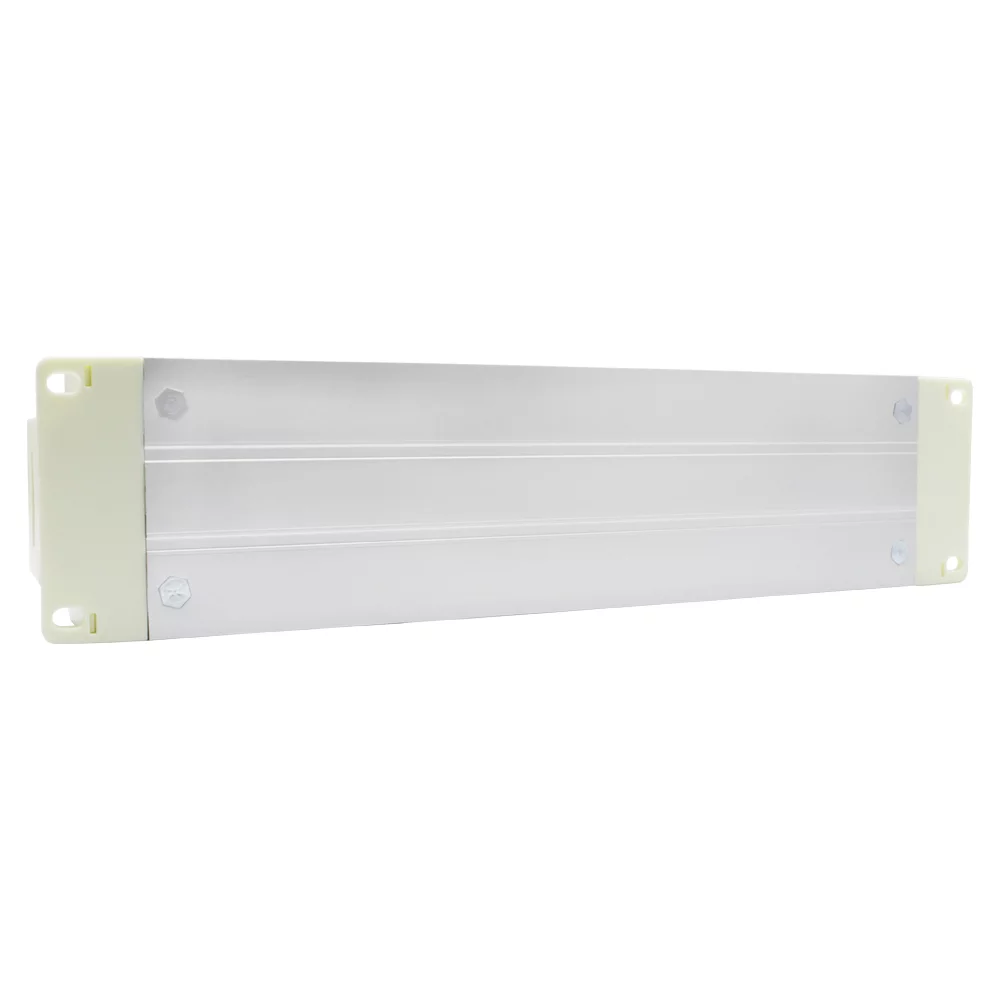

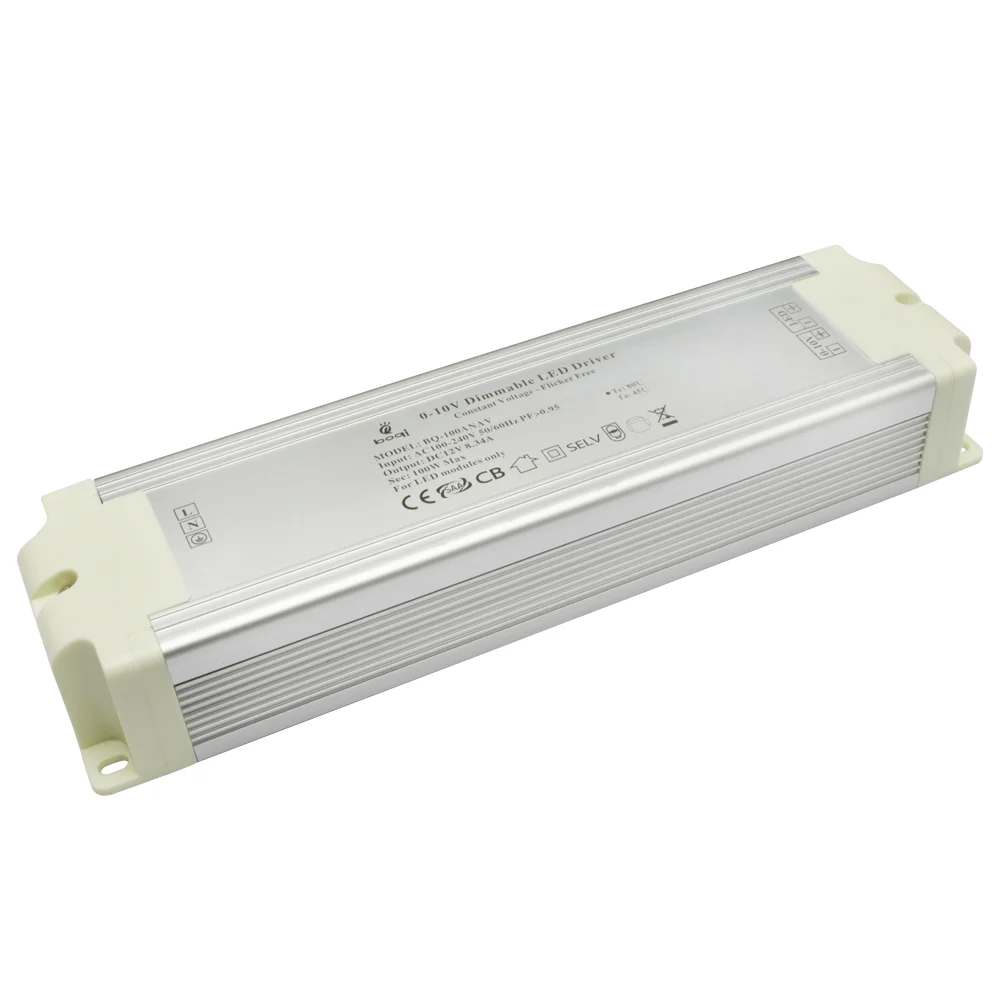

CV 0-10V Dimmable LED Driver 12V 100W Aluminum Case

Constant Voltage 0-10V Dimmable LED Driver 12V 8.34A 100W

Model

BQ-100ANAV

Parameter

Input voltage: 100-240Vac

Output power:0-100W

Output voltage: 12Vdc

Feature

  1. High efficiency up to 90%.
  2. 0-10V dimming function. Compatible with 0-10V dimmer and systems or software.
  3. Constant voltage output.
  4. Smooth dimming, flicker free, percent flicker less than 1%.
  5. Built-in active PFC function, Power Factor >0.95
  6. Dimming range: 0%-100%, dimming depth: 1.0%.
  7. All-round protection: over-temperature, over-voltage, overload, short circuit
  8. Suitable for Class II light fixtures.

Warranty

5 years

Application

LED strip, lightbox, luminous character

Certification

TUV-CE, CB, SAA, RoHS

Description

CV Dimmable 0-10V LED Driver 12V 100W Aluminum Case with optional covers,  with High Power Factor and Flicker-Free, Certified by TUV-CE, CB, SAA.

Specification

Additional information

Model

BQ-100ANAV 12V

Input

100 ~ 240 VAC

Output

DC12V 8.34A

Power

0-100W

Power Factor

>0.95

Flicker

Flicker Free

Power Efficiency

90%

Dimming Function

0-10V

Body Material

Aluminum

Plastic Cover

Orange, White

Certificate

TUV-CE, CB, SAA

Dimension

221*59*33 mm
