Guia para o sistema de regulação de 0-10V em iluminação LED

In the world of LED lighting, the 0-10V dimming system has gained significant popularity due to its advanced features and versatility.

Introduction

This article aims to provide a comprehensive overview of the 0-10V dimming system, including its definition, working principles, historical background, advantages, and limitations. By the end of this article, you will have a clear understanding of why the 0-10V dimming system has become a preferred choice in the LED lighting industry.

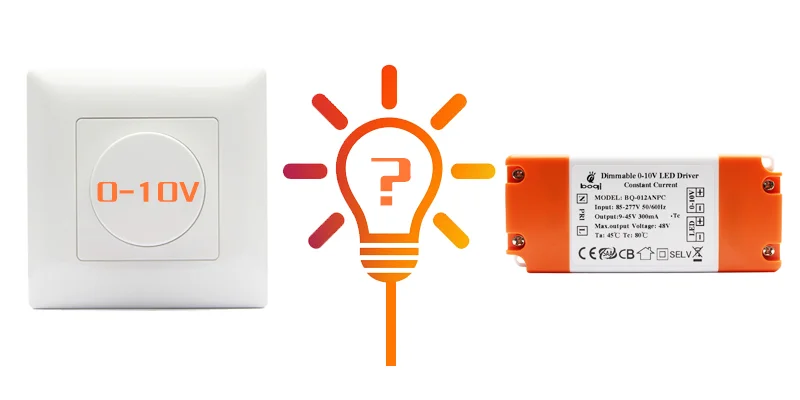

What is the 0-10V Dimming System?

The 0-10V dimming system is a lighting control mechanism that allows users to adjust the light output of LED fixtures. Unlike traditional dimming systems, which rely on transformers or complex circuitry, the 0-10V system uses a direct current (DC) voltage to regulate the intensity of the lights. This system provides a smooth and gradual transition from full brightness to complete dimness, offering users precise control over the lighting ambiance.

How Does the 0-10V Dimming System Work?

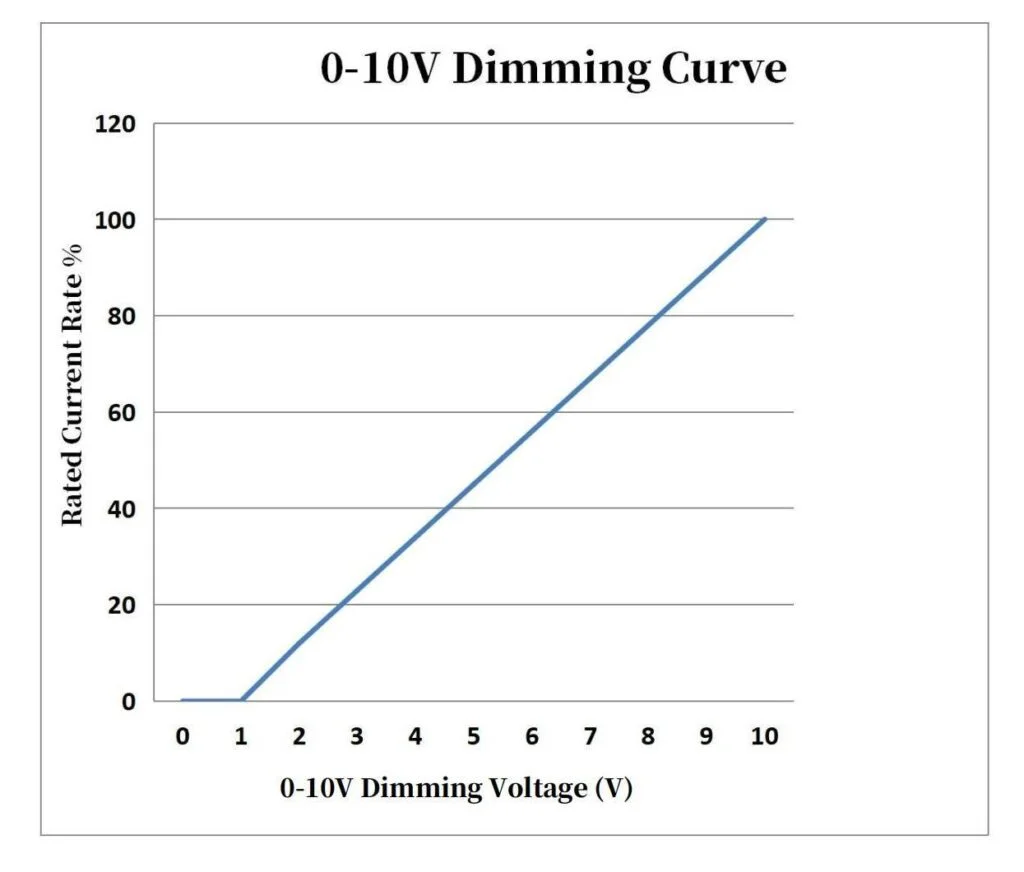

The 0-10V dimming system employs a low voltage control signal to adjust the light output of LED fixtures. Typically, the system consists of a dimming driver and two wires: a grey wire for the standard signal and a purple wire for the 10V reference signal. When the wires are open, the signal remains at 10V, resulting in 100% light output. Conversely, when the wires are shorted or connected, the dimming driver sets the light level to the minimum or 0V, thereby dimming the lights to the desired level. Here is boqi 0-10V dimmer wiring diagram,

History of the 0-10V Dimming System

The 0-10V dimming system, also known as fluorescent dimming or 5 Wire Dimming, originated as a solution to dim fluorescent fixtures in large-scale applications. It provided an efficient way to control the light output without the need for replacing existing fixtures. Over time, with advancements in LED lighting technology, the 0-10V dimming system was adapted to work seamlessly with 0-10V LED dimming drivers. Today, it is a widely accepted and established standard recognized by the International Electrotechnical Commission (IEC).

Benefits of the 0-10V Dimming System

The 0-10V dimming system offers several advantages over regular dimming systems. Some key benefits include:

1. Compatibility: Most LED lights are designed to be compatible with 0-10V led drivers and 0-10V dimmers, allowing for easy integration into existing lighting systems.

2. Energy Efficiency: By adjusting the light output, the 0-10V dimming system helps reduce energy consumption, resulting in cost savings and environmental benefits.

3. Extended Lifespan: Dimmable LED lights can prolong their lifespan, as they operate at lower light levels, reducing stress on the components.

4. Versatility: The 0-10V dimming system provides users with flexibility in controlling the light intensity, allowing for different moods and settings in various applications.

5. Recognized Standard: The IEC recognition of the 0-10V dimming system ensures widespread acceptance and compatibility across different manufacturers and industries.

Limitations of the 0-10V Dimming System

While the 0-10V dimming system offers numerous advantages, it also has some limitations to consider. These include:

1. Limited manufacturer options: Finding reliable and high-quality 0-10V dimmers from different manufacturers might be difficult, limiting consumer choices.

2. Dependency on drivers: The 0-10V system relies on compatible dimming drivers, which need careful consideration of specifications for optimal performance.

3. Voltage drop: Analog systems like 0-10V dimming may experience voltage drop due to wire resistance, affecting overall performance and dimming range.

4. Installation costs: Compared to regular dimming systems, the installation expenses for the 0-10V dimming system, including labor and wiring, can be higher.

Conclusão

In conclusion, the 0-10V dimming system has revolutionized the way we control LED lighting, offering precise dimming capabilities, energy efficiency, and flexibility. Despite its limitations, the system’s benefits make it an attractive choice for various applications, including residential, commercial, and outdoor lighting. Understanding the workings and advantages of the 0-10V dimming system empowers individuals and businesses to make informed decisions when it comes to lighting solutions.
